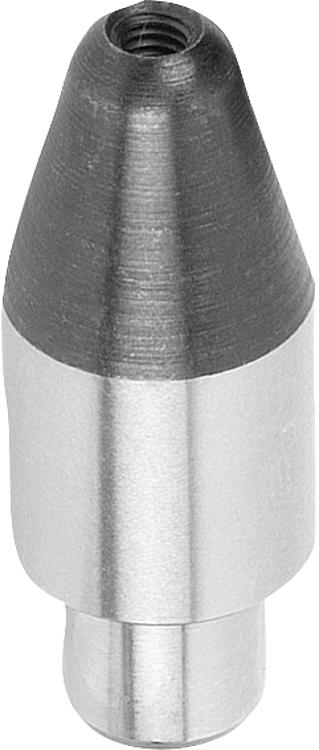

B0181Locating pin with internal thread, Form B, cylindrical |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Hardened and ground (HRC 60 ±2).Note:Locating pins are specially designed to ease the locating process. When used in conjunction with the hardened locating bushes B0182, they allow for a rapid, precise and low-wear workpiece exchange. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Version 1 | D1
| D2 | H | H1 | H2 | G | R | T | CAD | Acc. | Price | Order |
|---|
| B0181.205 | B | short | 5 | 3 | 8 | 3 | 5 | - | 1,50 | - |  | | 8.59 € | | | B0181.206 | B | short | 6 | 4 | 10 | 4 | 6 | - | 1,80 | - | | | 8.59 € | | | B0181.208 | B | short | 8 | 6 | 11,4 | 6 | 7,4 | M2,5 | 2,5 | 5 | | | 8.84 € | | | B0181.210 | B | short | 10 | 7 | 13,7 | 7 | 9,7 | M2,5 | 3 | 5 | | | 9.25 € | | | B0181.212 | B | short | 12 | 8 | 16 | 8 | 12 | M3 | 3,5 | 6 | | | 9.65 € | | | B0181.216 | B | short | 16 | 12 | 20 | 12 | 15 | M4 | 5 | 8 | | | 11.23 € | | | B0181.220 | B | short | 20 | 14 | 25,5 | 14 | 19,5 | M5 | 6 | 10 | | | 17.47 € | | | B0181.305 | B | long | 5 | 3 | 10 | 3 | 5 | - | 1,50 | - | | | 9.00 € | | | B0181.306 | B | long | 6 | 4 | 12 | 4 | 6 | - | 1,80 | - | | | 9.00 € | | | B0181.308 | B | long | 8 | 6 | 17,4 | 6 | 7,4 | M2,5 | 2,5 | 5 | | | 9.25 € | | | B0181.310 | B | long | 10 | 7 | 21,7 | 7 | 9,7 | M2,5 | 3 | 5 | | | 9.65 € | | | B0181.312 | B | long | 12 | 8 | 24 | 8 | 12 | M3 | 3,5 | 6 | | | 10.03 € | | | B0181.316 | B | long | 16 | 12 | 29 | 12 | 15 | M4 | 5 | 8 | | | 11.64 € | | | B0181.320 | B | long | 20 | 14 | 35,5 | 14 | 19,5 | M5 | 6 | 10 | | | 18.06 € | |
