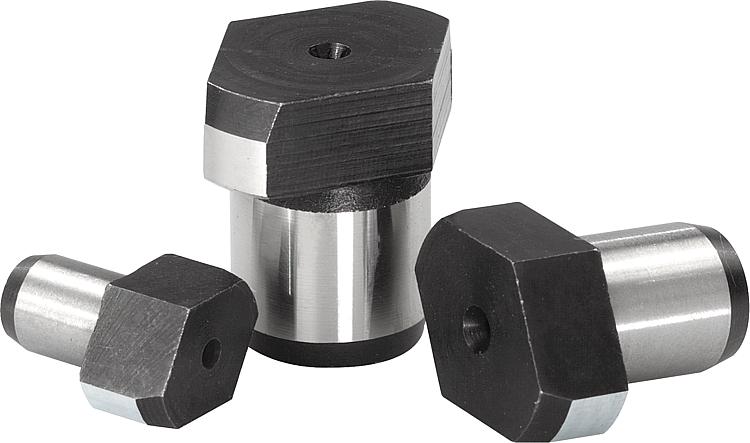

B0178Positioning pins free-milled, ground |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Tool steel.Version:Hardened and ground.Note:Top face with centrebore.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

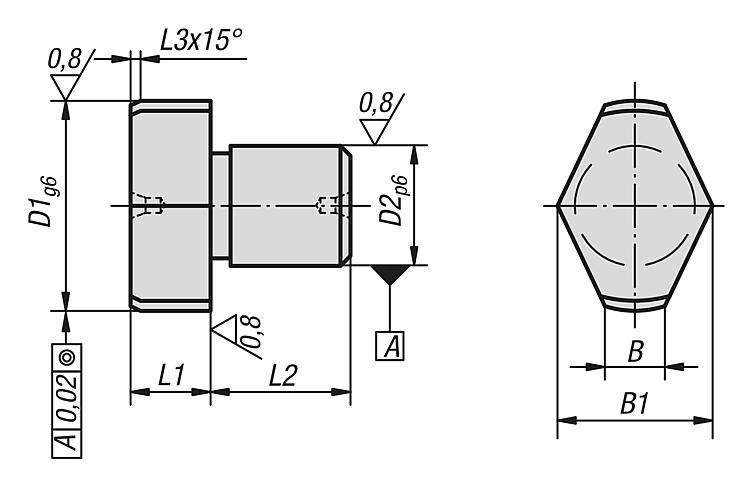

| Order No. | D1
| D2 | L1 | L2 | L3 | B | B1 | CAD | Acc. | Price | Order |
|---|
| B0178.05 | 8 | 5 | 8 | 8 | 2 | 2 | 6,6 |  | | 7.35 € | | | B0178.07 | 10 | 7 | 8 | 8 | 2 | 3 | 8,6 | | | 8.15 € | | | B0178.08 | 12 | 8 | 8 | 10 | 2 | 3 | 9,8 | | | 8.48 € | | | B0178.081 | 14 | 8 | 8 | 10 | 3 | 3,5 | 11,2 | | | 8.84 € | | | B0178.09 | 16 | 9 | 8 | 12 | 3 | 4 | 13,2 | | | 9.45 € | | | B0178.12 | 18 | 12 | 8 | 12 | 3 | 4,5 | 14,7 | | | 10.45 € | | | B0178.121 | 20 | 12 | 8 | 14 | 3 | 5 | 16,6 | | | 11.35 € | | | B0178.14 | 22 | 14 | 8 | 14 | 3 | 5,6 | 18 | | | 12.75 € | | | B0178.16 | 25 | 16 | 8 | 16 | 3 | 6 | 19,8 | | | 13.20 € | |
