Locating pins with ball-end Form A
B0173

Locating pins with ball-end Form A

go back

Item description/product images

DescriptionMaterial:

Tool steel or 1.4305 stainless steel.

Version:Steel hardened and ground.
Stainless steel ground and kolsterised.

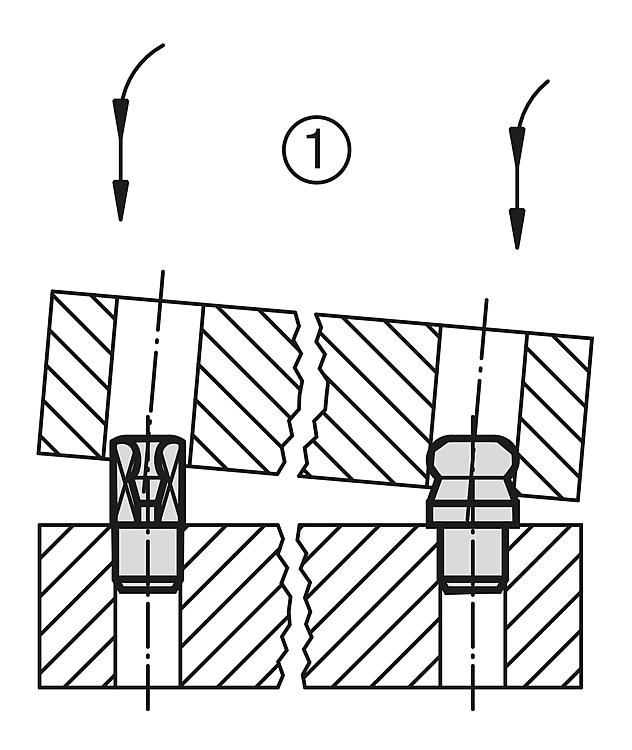

Note:Ball end locating pins are specially designed to ease the locating process. The tendency to jam, caused by the locating hole not being at right angles to the pin or by the pushing force not being parallel to the pin axis, is minimized by the ball-end form (see illustration 1)
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0173 Locating pins with ball-end Form A 269 kB

Drawings

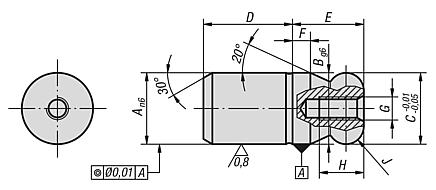

Locating pins with ball-end Form A

Item selection/filter

Order No.Material

ABCDEFGHJCADAcc.PriceOrder
B0173.05tool steel555652M2,54,5R 1 10.89 €
B0173.06tool steel666862M35R 1 12.25 €
B0173.08tool steel8881082M36R 2 13.85 €
B0173.10tool steel10101013102,5M36R 2,5 14.40 €
B0173.12tool steel12121215123M48R 3 14.84 €
B0173.14tool steel14141417143,5M48R 3,5 16.30 €
B0173.16tool steel16161620164M510R 4 16.40 €
B0173.20tool steel20202025205M510R 5 19.97 €
B0173.25tool steel25252525256M510R 6 21.78 €
B0173.30tool steel30303030308M612R 8 29.46 €
B0173.40tool steel404040404010M612R 10 60.65 €
B0173.50tool steel505050505012M612R 12 85.50 €
B0173.505stainless steel555652M2,54,5R 1 15.47 €
B0173.506stainless steel666862M35R 1 17.40 €
B0173.508stainless steel8881082M36R 2 19.88 €
B0173.510stainless steel10101013102,5M36R 2,5 20.70 €
B0173.512stainless steel12121215123M48R 3 21.70 €
B0173.514stainless steel14141417143,5M48R 3,5 23.73 €
B0173.516stainless steel16161620164M510R 4 23.93 €
B0173.520stainless steel20202025205M510R 5 36.19 €
