B0181Locating pins with internal thread |
go back |
|
|

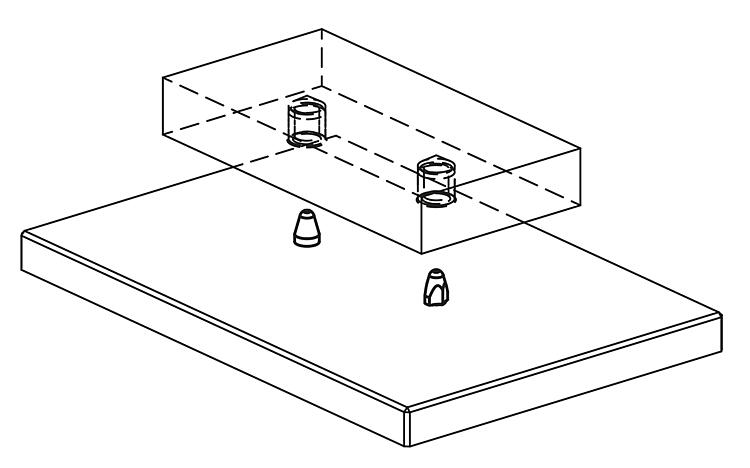

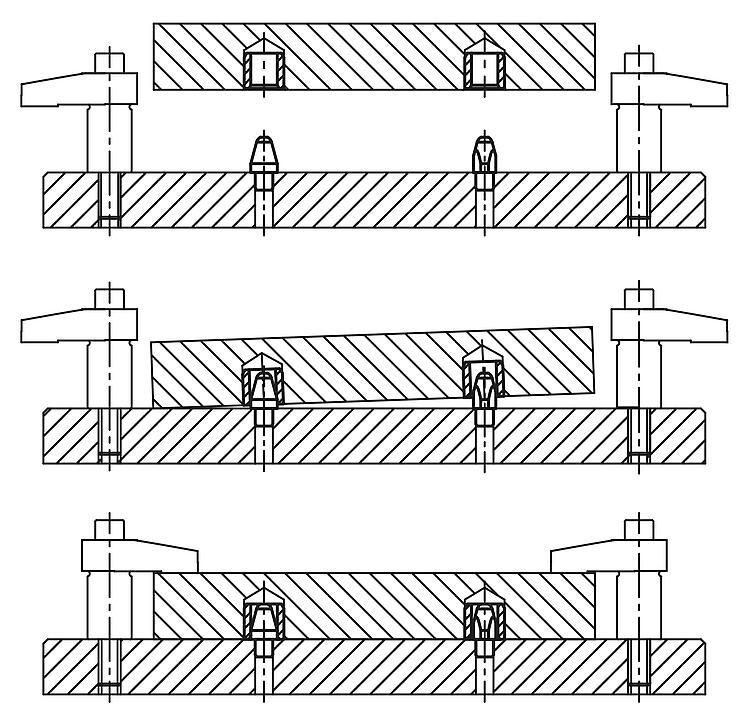

DescriptionMaterial:Steel.Version:Hardened and ground (HRC 60 ±2).Note:The locating pins are designed to make the joining process easier. Used in combination with hardened locating bushes B0182, they enable exact, low-wear, and fast changes of the workpiece.

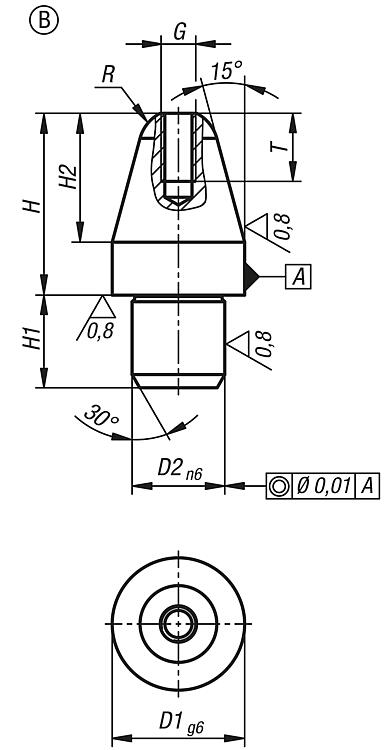

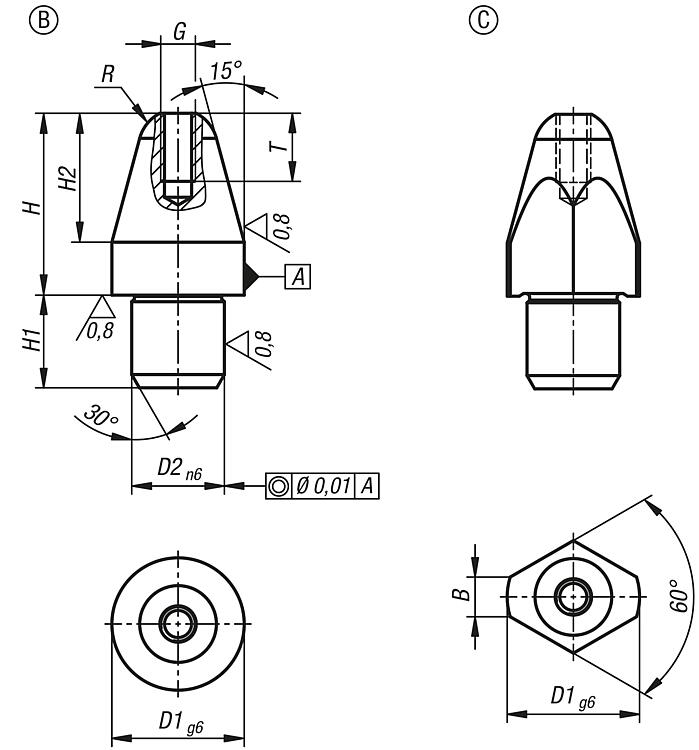

Versions D1 = 5 and D1 = 6 do not have an internal thread.Drawing reference:Form B: cylindrical pin

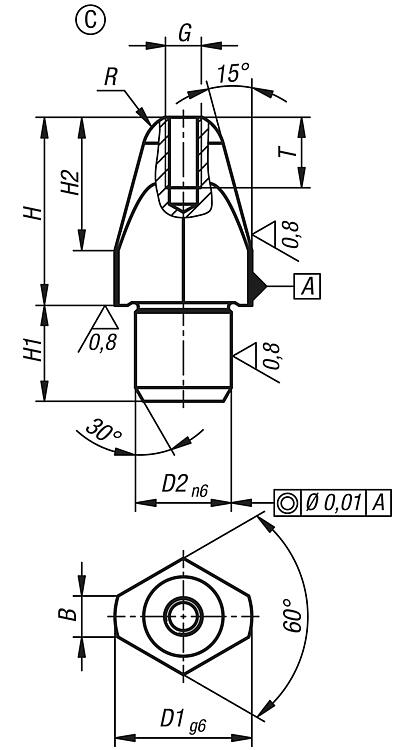

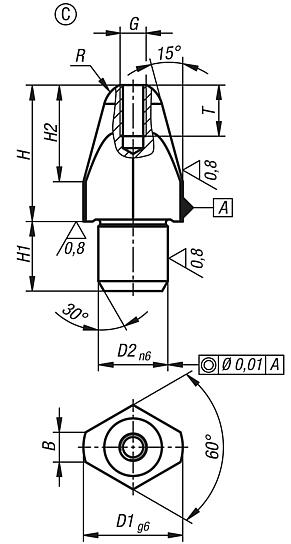

Form C: rhomboid pin DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Form | Version 1 | D1
| D2 | H | H1 | H2 | G | R | T | CAD | Acc. | Price | Order |
|---|
| B0181.205 | B | short | 5 | 3 | 8 | 3 | 5 | - | 1,50 | - |  | | 8.59 € | | | B0181.206 | B | short | 6 | 4 | 10 | 4 | 6 | - | 1,80 | - | | | 8.59 € | | | B0181.208 | B | short | 8 | 6 | 11,4 | 6 | 7,4 | M2,5 | 2,5 | 5 | | | 8.84 € | | | B0181.210 | B | short | 10 | 7 | 13,7 | 7 | 9,7 | M2,5 | 3 | 5 | | | 9.25 € | | | B0181.212 | B | short | 12 | 8 | 16 | 8 | 12 | M3 | 3,5 | 6 | | | 9.65 € | | | B0181.216 | B | short | 16 | 12 | 20 | 12 | 15 | M4 | 5 | 8 | | | 11.23 € | | | B0181.220 | B | short | 20 | 14 | 25,5 | 14 | 19,5 | M5 | 6 | 10 | | | 17.47 € | | | B0181.305 | B | long | 5 | 3 | 10 | 3 | 5 | - | 1,50 | - | | | 9.00 € | | | B0181.306 | B | long | 6 | 4 | 12 | 4 | 6 | - | 1,80 | - | | | 9.00 € | | | B0181.308 | B | long | 8 | 6 | 17,4 | 6 | 7,4 | M2,5 | 2,5 | 5 | | | 9.25 € | | | B0181.310 | B | long | 10 | 7 | 21,7 | 7 | 9,7 | M2,5 | 3 | 5 | | | 9.65 € | | | B0181.312 | B | long | 12 | 8 | 24 | 8 | 12 | M3 | 3,5 | 6 | | | 10.03 € | | | B0181.316 | B | long | 16 | 12 | 29 | 12 | 15 | M4 | 5 | 8 | | | 11.64 € | | | B0181.320 | B | long | 20 | 14 | 35,5 | 14 | 19,5 | M5 | 6 | 10 | | | 18.06 € | |
|
| Order No. | Form | Version 1 | D1 | D2 | H | H1 | H2 | G | R | B | T | CAD | Acc. | Price | Order |
|---|
| B0181.405 | C | short | 5 | 3 | 8 | 3 | 5 | - | 1,50 | - | - | | | 9.43 € | | | B0181.406 | C | short | 6 | 4 | 10 | 4 | 6 | - | 1,80 | - | - | | | 9.43 € | | | B0181.408 | C | short | 8 | 6 | 11,4 | 6 | 7,4 | M2,5 | 2,5 | 2,5 | 5 | | | 9.65 € | | | B0181.410 | C | short | 10 | 7 | 13,7 | 7 | 9,7 | M2,5 | 3 | 3,0 | 5 | | | 10.03 € | | | B0181.412 | C | short | 12 | 8 | 16 | 8 | 12 | M3 | 3,5 | 3,5 | 6 | | | 10.44 € | | | B0181.416 | C | short | 16 | 12 | 20 | 12 | 15 | M4 | 5 | 5 | 8 | | | 12.47 € | | | B0181.420 | C | short | 20 | 14 | 25,5 | 14 | 19,5 | M5 | 6 | 6 | 10 | | | 18.92 € | | | B0181.505 | C | long | 5 | 3 | 10 | 3 | 5 | - | 1,50 | - | - | | | 9.92 € | | | B0181.506 | C | long | 6 | 4 | 12 | 4 | 6 | - | 1,80 | - | - | | | 9.92 € | | | B0181.508 | C | long | 8 | 6 | 17,4 | 6 | 7,4 | M2,5 | 2,5 | 2,5 | 5 | | | 10.03 € | | | B0181.510 | C | long | 10 | 7 | 21,7 | 7 | 9,7 | M2,5 | 3 | 3,0 | 5 | | | 10.44 € | | | B0181.512 | C | long | 12 | 8 | 24 | 8 | 12 | M3 | 3,5 | 3,5 | 6 | | | 10.86 € | | | B0181.516 | C | long | 16 | 12 | 29 | 12 | 15 | M4 | 5 | 5 | 8 | | | 13.71 € | | | B0181.520 | C | long | 20 | 14 | 35,5 | 14 | 19,5 | M5 | 6 | 6 | 10 | | | 19.78 € | |
|
