Positioning feet
 B0183

Positioning feet

 go back

Item description/product images

 Show/filter all items

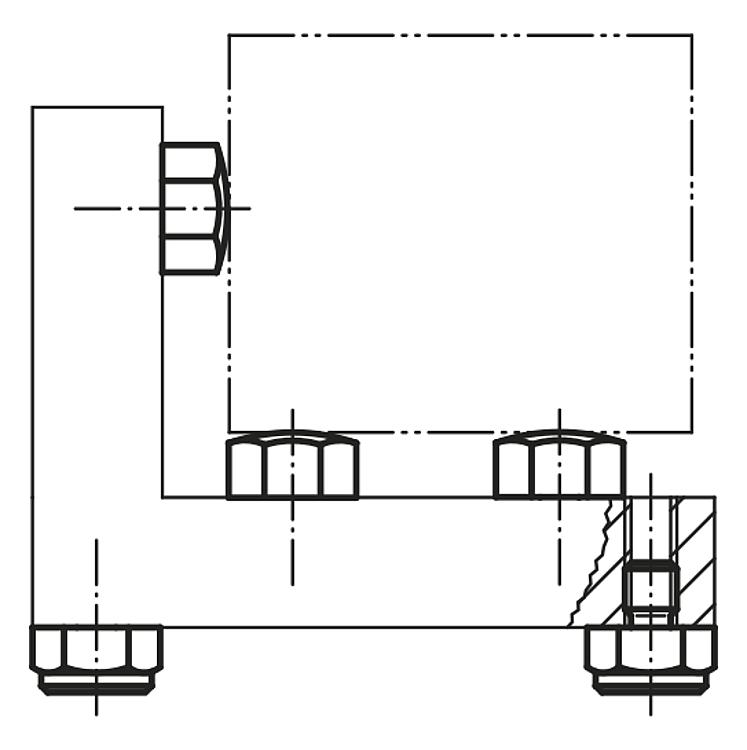

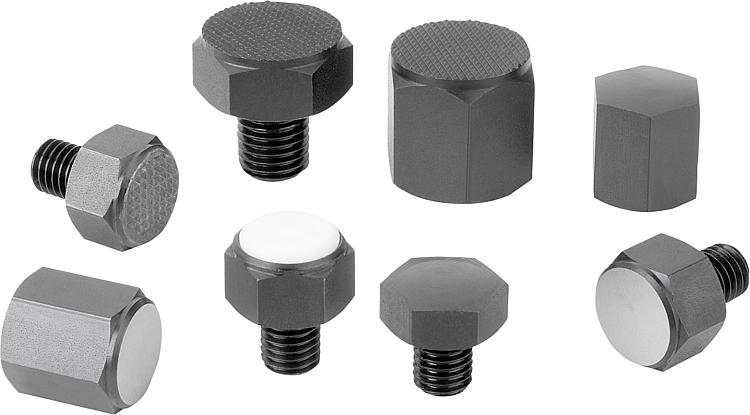

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction.Drawing reference:

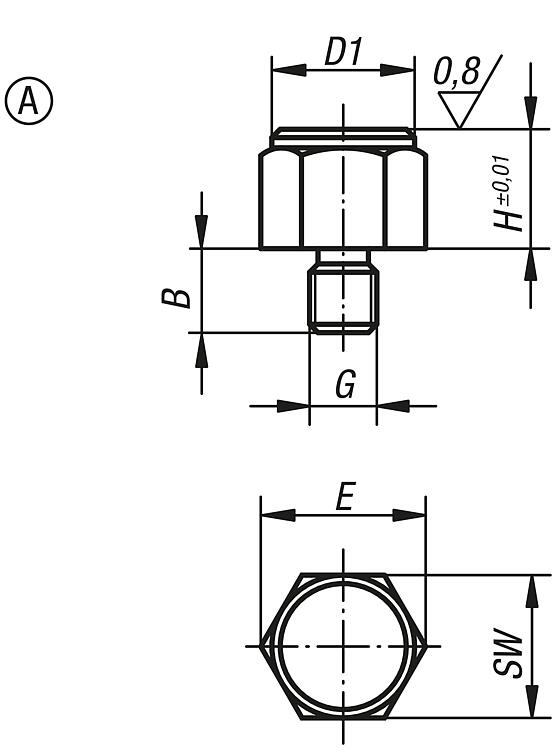

Form A: External thread and flat face

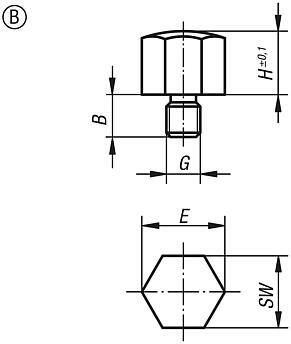

Form B: External thread and convex face

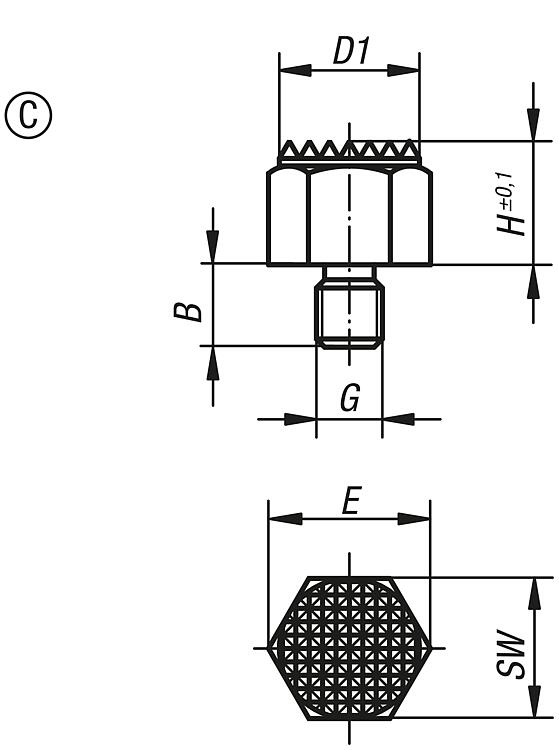

Form C: External thread and serrated face
Form K: External thread and carbide serrated face

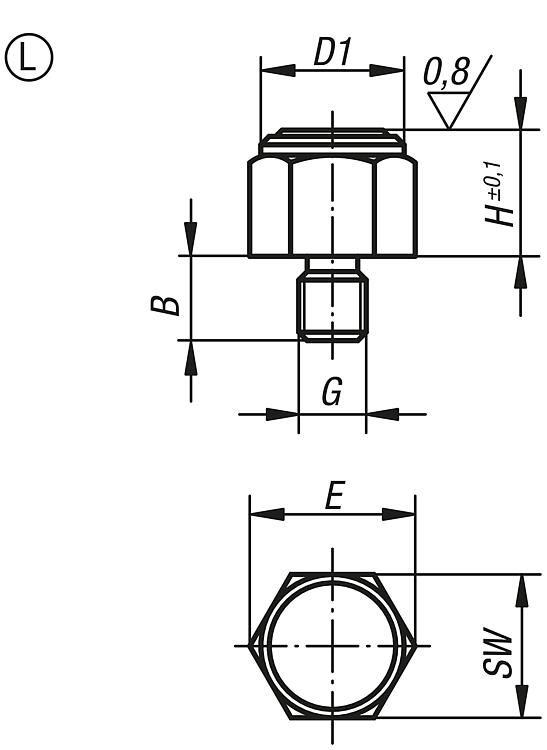

Form L: External thread and POM insert

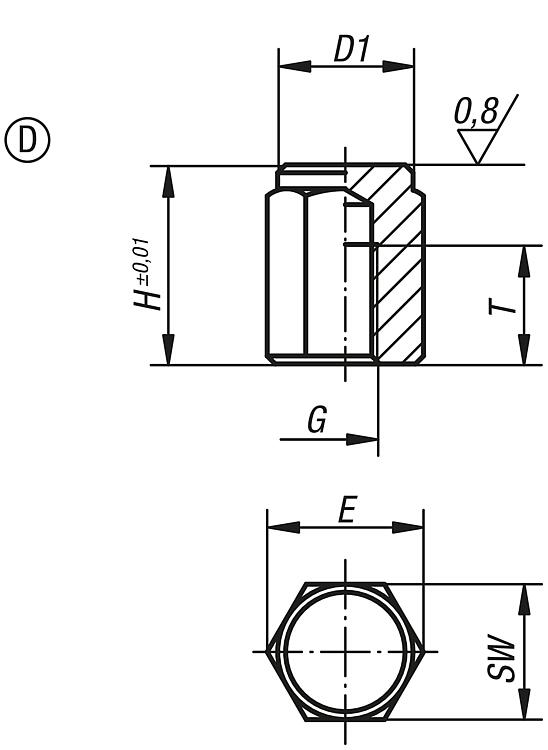

Form D: External thread and flat face

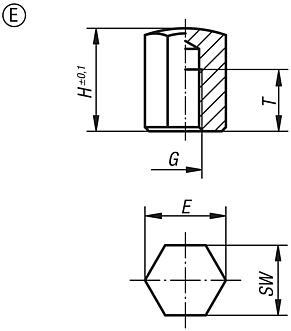

Form E: External thread and convex face

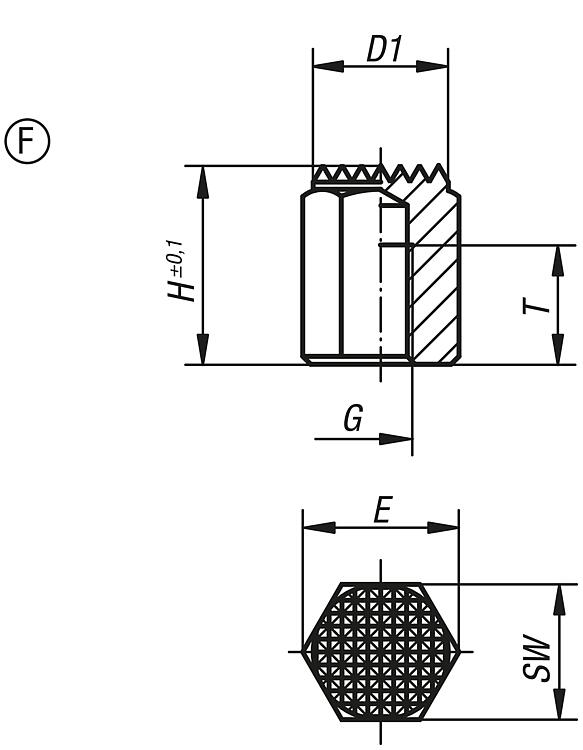

Form F: External thread and serrated face
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0183 Positioning feet 259 kB

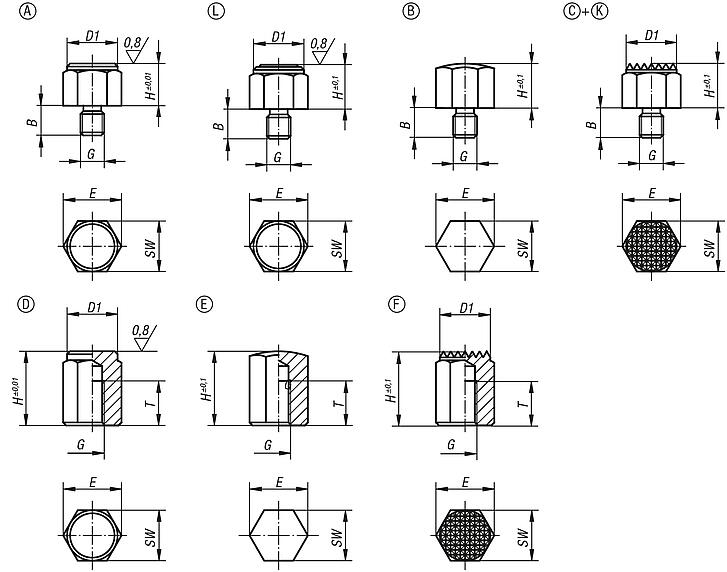

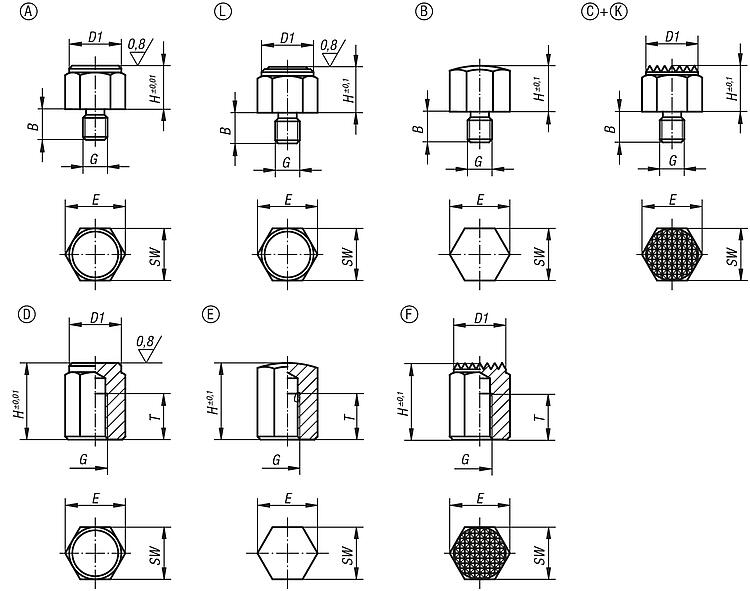

Drawings (total overview)

Positioning feet

Positioning feet with external thread and flat face, Form A

 More information

Drawings
Positioning feet with external thread and flat face, Form A

Item selection/filter
Order No.

FormBD1GHESWTightening
torque
max. Nm		CADAcc.PriceOrder
B0183.108A813M6814,4138,5 10.66 €
B0183.1104A1013M61014,4138,5 11.29 €
B0183.1081A1017M8819,41718 11.92 €
B0183.1101A1017M81019,41718 12.91 €
B0183.1103A1219M101021,91932 13.29 €
B0183.1152A1219M101521,91932 13.29 €
B0183.110A1422M121025,22260 14.41 €
B0183.115A1422M121525,22260 14.41 €
B0183.1151A1930M16153330140 33.60 €
B0183.1201A1930M16203330140 34.36 €

Positioning feet with external thread and convex face, Form B

 More information

Drawings
Positioning feet with external thread and convex face, Form B

Item selection/filter
Order No.

FormBGHESWTightening
torque
max. Nm		CADAcc.PriceOrder
B0183.208B8M6814,4138,5 8.88 €
B0183.2104B10M61014,4138,5 9.41 €
B0183.2081B10M8819,41718 9.93 €
B0183.2101B10M81019,41718 10.74 €
B0183.2103B12M101021,91932 11.47 €
B0183.2152B12M101521,91932 11.47 €
B0183.210B14M121025,22260 12.34 €
B0183.215B14M121525,22260 12.61 €
B0183.2151B19M16153330140 25.06 €
B0183.2201B19M16203330140 25.70 €

Positioning feet with external thread and serrated face, Form C

 More information

Drawings
Positioning feet with external thread and serrated face, Form C

Item selection/filter
Order No.

FormBD1GHESWTightening
torque
max. Nm		CADAcc.PriceOrder
B0183.308C813M6814,4138,5 10.19 €
B0183.3102C1013M61014,4138,5 10.78 €
B0183.3081C1017M8819,41718 11.37 €
B0183.3101C1017M81019,41718 12.31 €
B0183.3103C1219M101021,91932 12.92 €
B0183.3152C1219M101521,91932 12.92 €
B0183.310C1422M121025,22260 13.10 €
B0183.315C1422M121525,22260 13.10 €
B0183.3151C1930M16153330140 31.26 €
B0183.3201C1930M16203330140 32.21 €

Positioning feet with external thread and carbide diamond grip, Form K

 More information

Drawings
Positioning feet with external thread and carbide diamond grip, Form K

Item selection/filter
Order No.

FormBD1GHESWTightening
torque
max. Nm		CADAcc.PriceOrder
B0183.7101K1017M81019,41718 29.80 €
B0183.710K1422M121025,22260 36.45 €
B0183.715K1422M121525,22260 36.70 €
B0183.7151K1930M16153330140 59.77 €
B0183.7201K1930M16203330140 60.19 €

Positioning feet with external thread and POM insert, Form L

 More information

Drawings
Positioning feet with external thread and POM insert, Form L

Item selection/filter
Order No.

FormBD1GHESWTightening
torque
max. Nm		CADAcc.PriceOrder
B0183.8101L1017M81019,41718 18.49 €
B0183.810L1422M121025,22260 21.06 €
B0183.815L1422M121525,22260 21.30 €
B0183.8151L1930M16153330140 37.11 €
B0183.8201L1930M16203330140 37.49 €

Positioning feet with internal thread and flat face, From D

 More information

Drawings
Positioning feet with internal thread and flat face, From D

Item selection/filter
Order No.

FormD1GHTESWCADAcc.PriceOrder
B0183.410D13M610614,413 9.06 €
B0183.4151D13M6151014,413 9.59 €
B0183.4101D17M810619,417 10.10 €
B0183.415D17M815619,417 10.95 €
B0183.4251D17M8251619,417 12.23 €
B0183.4201D19M10201021,919 11.47 €
B0183.4401D19M10401521,919 12.77 €
B0183.420D22M12201025,222 11.64 €
B0183.425D22M12251525,222 11.95 €
B0183.430D22M12302025,222 12.23 €
B0183.440D22M12402525,222 12.86 €
B0183.450D22M12502525,222 13.36 €
B0183.4301D30M1630203330 30.56 €
B0183.4501D30M1650253330 33.60 €

Positioning feet with internal thread and spherical face face, Form E

 More information

Drawings
Positioning feet with internal thread and spherical face face, Form E

Item selection/filter
Order No.

FormGHTESWCADAcc.PriceOrder
B0183.510EM610614,413 7.47 €
B0183.5151EM6151014,413 7.91 €
B0183.5101EM810619,417 8.36 €
B0183.515EM815619,417 9.03 €
B0183.5251EM8251619,417 9.34 €
B0183.5201EM10201021,919 9.91 €
B0183.5401EM10401521,919 10.95 €
B0183.520EM12201025,222 9.97 €
B0183.525EM12251525,222 10.02 €
B0183.530EM12302025,222 10.40 €
B0183.540EM12402525,222 11.05 €
B0183.550EM12502525,222 11.60 €
B0183.5301EM1630203330 22.24 €
B0183.5501EM1650253330 23.09 €

Positioning feet with internal thread and serrated face, Form F

 More information

Drawings
Positioning feet with internal thread and serrated face, Form F

Item selection/filter
Order No.

FormD1GHTESWCADAcc.PriceOrder
B0183.610F13M610614,413 8.45 €
B0183.6151F13M6151014,413 9.17 €
B0183.6101F17M810619,417 9.69 €
B0183.615F17M815619,417 10.46 €
B0183.6251F17M8251619,417 10.72 €
B0183.6201F19M10201021,919 10.69 €
B0183.6401F19M10401521,919 11.87 €
B0183.620F22M12201025,222 10.74 €
B0183.625F22M12251525,222 11.05 €
B0183.630F22M12302025,222 11.20 €
B0183.640F22M12402525,222 11.95 €
B0183.650F22M12502525,222 12.61 €
B0183.6301F30M1630203330 28.17 €
B0183.6501F30M1650253330 29.52 €
