B0182Locating bushes for locating pins |
go back |
|

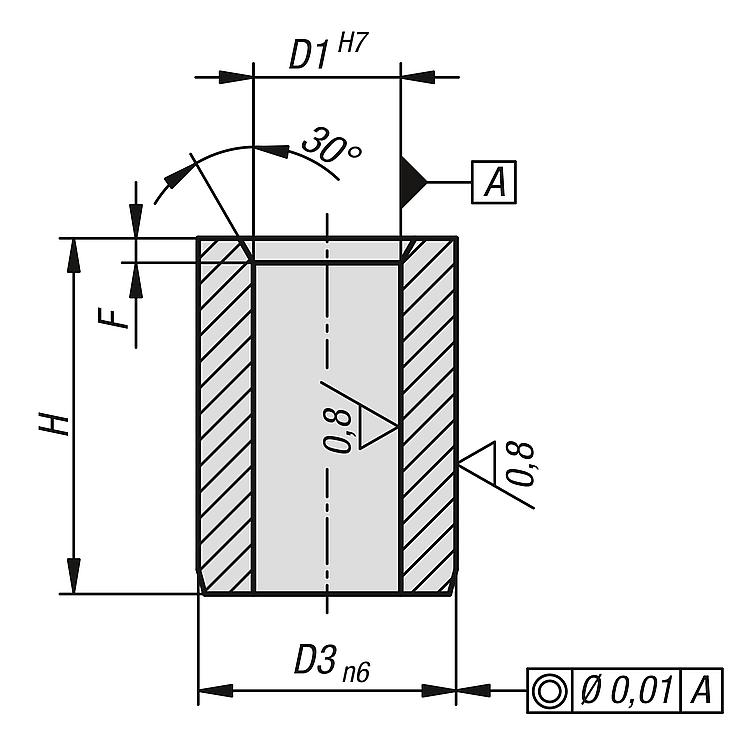

Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Hardened and ground (HRC 60 ±2). DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 1 | D1
| D3 | F | H | CAD | Acc. | Price | Order |
|---|
| B0182.0508 | short | 5 | 8 | 1 | 8 |  | | 6.27 € | | | B0182.0610 | short | 6 | 10 | 1 | 10 | | | 6.63 € | | | B0182.0812 | short | 8 | 12 | 1,2 | 12 | | | 7.18 € | | | B0182.1014 | short | 10 | 15 | 1,5 | 14 | | | 7.69 € | | | B0182.1216 | short | 12 | 18 | 1,5 | 16 | | | 8.86 € | | | B0182.1620 | short | 16 | 26 | 1,5 | 20 | | | 9.99 € | | | B0182.2026 | short | 20 | 30 | 2,5 | 26 | | | 12.31 € | | | B0182.0510 | long | 5 | 8 | 1 | 10 | | | 6.51 € | | | B0182.0612 | long | 6 | 10 | 1 | 12 | | | 6.99 € | | | B0182.0818 | long | 8 | 12 | 1,2 | 18 | | | 7.20 € | | | B0182.1022 | long | 10 | 15 | 1,5 | 22 | | | 7.73 € | | | B0182.1224 | long | 12 | 18 | 1,5 | 24 | | | 9.07 € | | | B0182.1630 | long | 16 | 26 | 1,5 | 30 | | | 10.04 € | | | B0182.2036 | long | 20 | 30 | 2,5 | 36 | | | 12.57 € | |
