Fixture feet with internal thread
B0185

Fixture feet with internal thread

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.

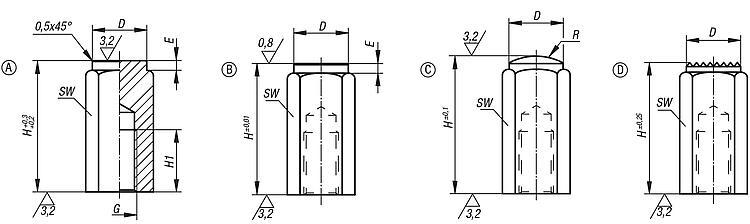

Note:Fixture feet with internal thread are used as supports for fixtures or rough or machined workpieces. They can also be used as stops or thust pads in fixtures and toolmaking.Drawing reference:
Form A: hardened face
Form B: face hardened and ground
Form C: hardened spherical surface
Form D: tempered serrated surface
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0185 Fixture feet with internal thread 211 kB

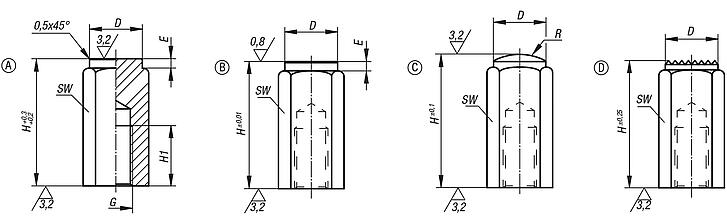

Drawings (total overview)

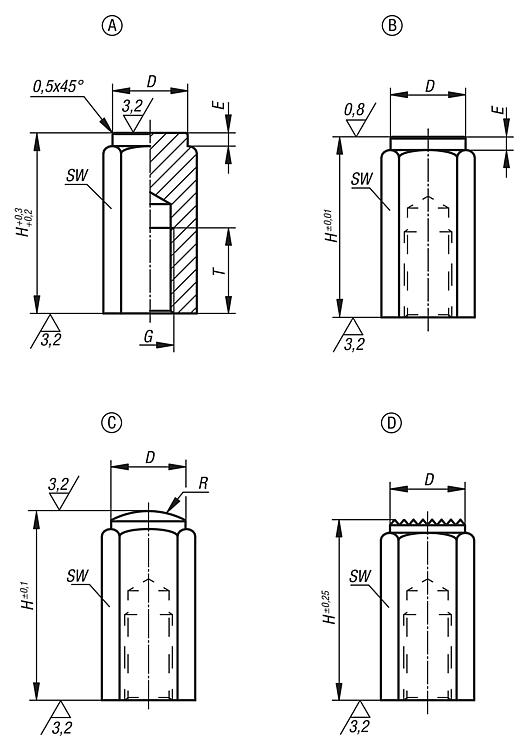

Fixture feet with internal thread

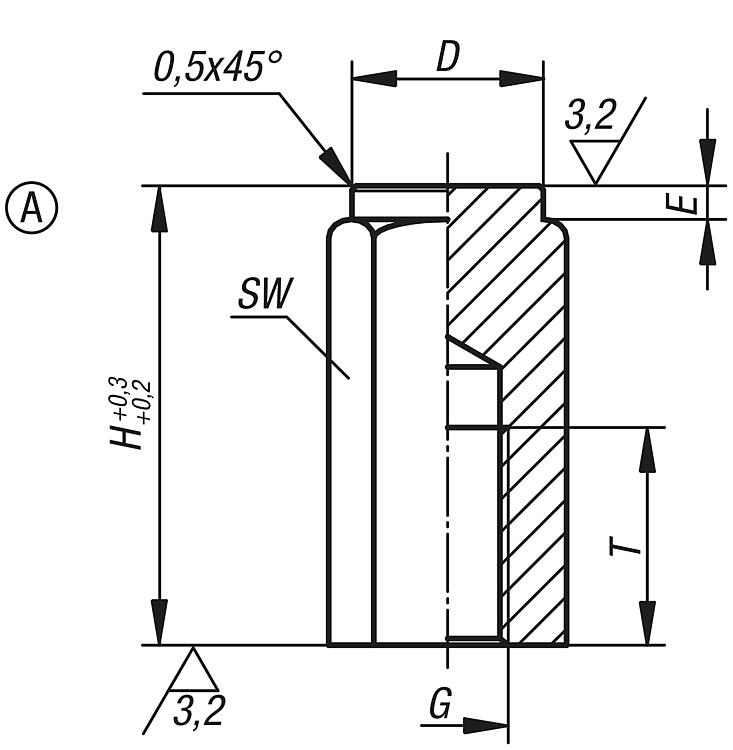

Fixture feet with internal thread, Form A hardened flat face

More information

Drawings

Fixture feet with internal thread, Form A hardened flat face

Item selection/filter

Order No.FormDEGHTSWCADAcc.PriceOrder
B0185.106X20A9,52M6201210 5.33 €
B0185.106X40A9,52M6401210 5.11 €
B0185.110X32A16,53M10321817 8.52 €
B0185.110X63A16,53M10631817 9.18 €
B0185.112X32A18,53M12321819 10.52 €
B0185.112X63A18,53M12631819 11.37 €
B0185.116X50A234M16502424 13.06 €
B0185.116X100A234M161002424 14.47 €

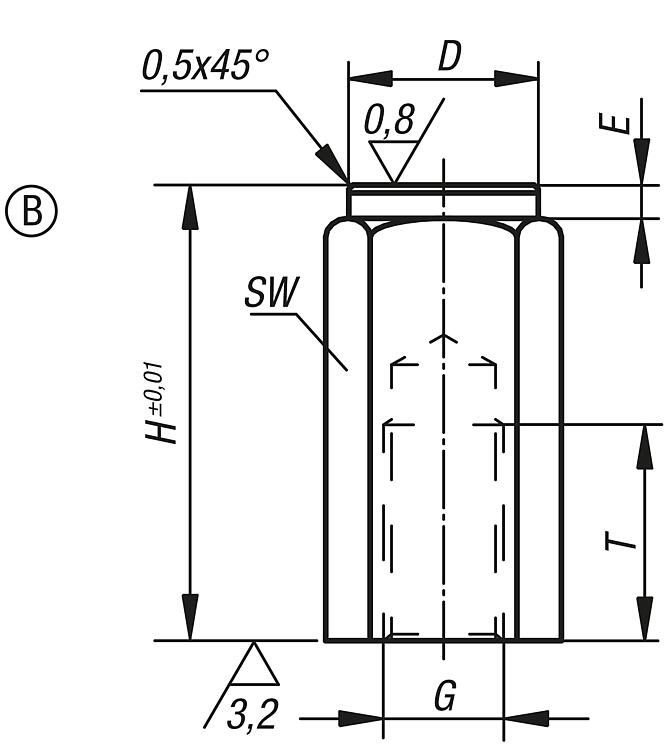

Fixture feet with internal thread, Form B flat face hardened and ground

More information

Drawings

Fixture feet with internal thread, Form B flat face hardened and ground

Item selection/filter

Order No.FormDEGHTSWCADAcc.PriceOrder
B0185.206X20B9,52M6201210 11.03 €
B0185.206X40B9,52M6401210 10.27 €
B0185.210X32B16,53M10321817 12.52 €
B0185.210X63B16,53M10631817 14.32 €
B0185.212X32B18,53M12321819 16.25 €
B0185.212X63B18,53M12631819 16.63 €
B0185.216X50B234M16502424 18.81 €
B0185.216X100B234M161002424 19.72 €

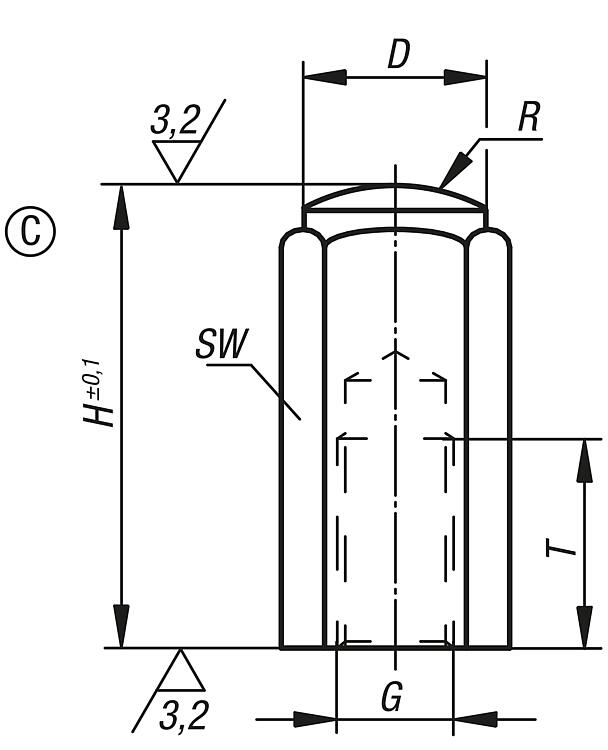

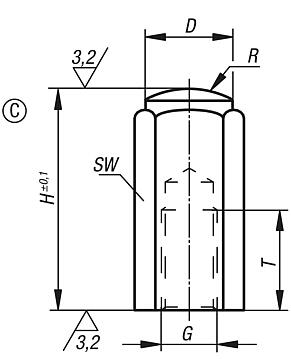

Fixture feet with internal thread, Form C hardened spherical face

More information

Drawings

Fixture feet with internal thread, Form C hardened spherical face

Item selection/filter

Order No.FormDGHRTSWCADAcc.PriceOrder
B0185.306X20C9,5M620151210 11.97 €
B0185.306X40C9,5M640151210 11.79 €
B0185.310X32C16,5M1032301817 9.93 €
B0185.310X63C16,5M1063301817 10.57 €
B0185.312X32C18,5M1232351819 13.81 €
B0185.312X63C18,5M1263351819 14.13 €
B0185.316X50C23M1650402424 21.70 €
B0185.316X100C23M16100402424 27.14 €

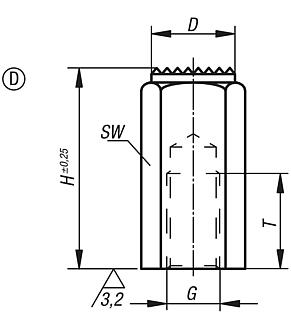

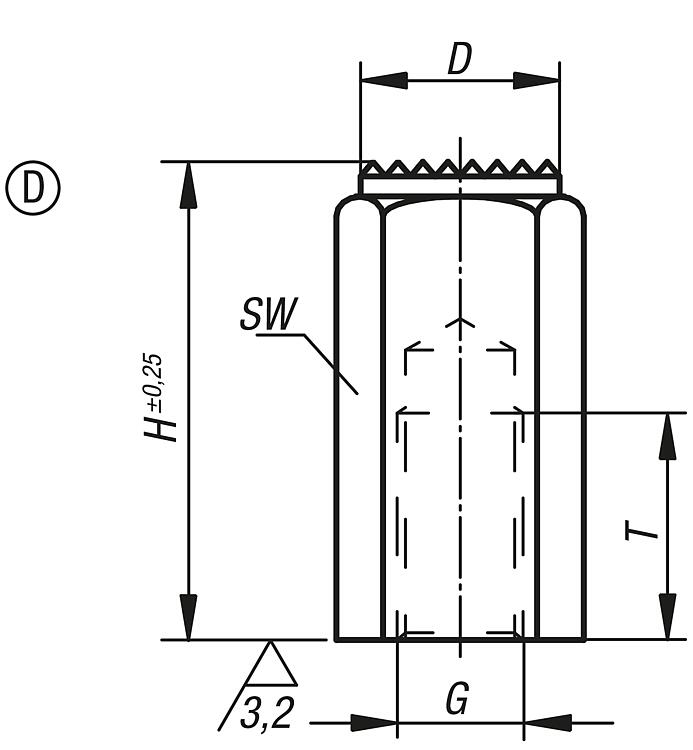

Fixture feet with internal thread, Form D serrated face tempered

More information

Drawings

Fixture feet with internal thread, Form D serrated face tempered

Item selection/filter

Order No.FormDGHTSWCADAcc.PriceOrder
B0185.406X20D9,5M6201210 14.78 €
B0185.406X40D9,5M6401210 13.28 €
B0185.410X32D16,5M10321817 21.29 €
B0185.410X63D16,5M10631817 21.29 €
B0185.412X32D18,5M12321819 23.90 €
B0185.412X63D18,5M12631819 24.33 €
B0185.416X50D23M16502424 42.27 €
B0185.416X100D23M161002424 35.47 €
