Positioning feet

B0184

Positioning feet

Products
- Product overview
  - Locating elements, stop elements, support elements
    - Locating pins, rest pads
      - Positioning feet

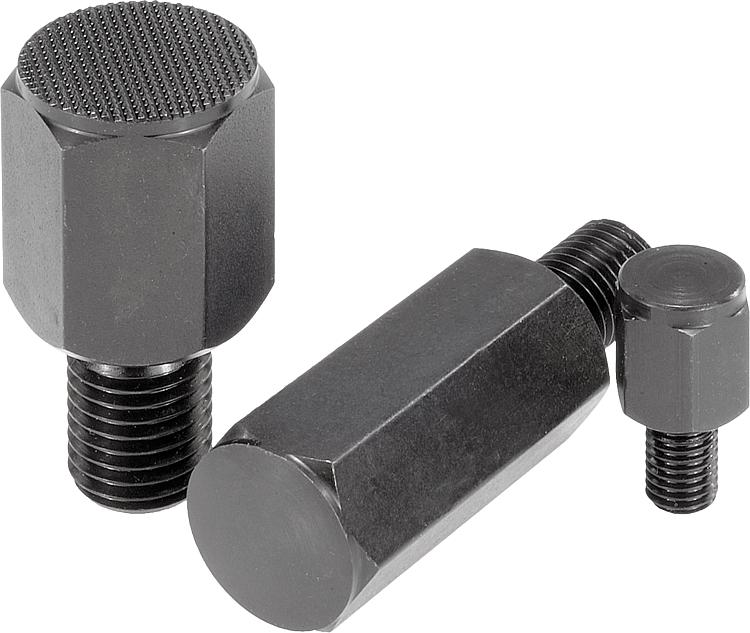

Item description/product images

Show/filter all items

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.Note:These positioning feet are used as supports for rough and machined parts. They can also be used as stops and thrust pads in fixtures and toolmaking.Drawing reference:

Form A: Flat face hardened
Form B: Flat face hardened and ground
Form C: Spherical face hardened
Form D: Serrated face tempered

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0184 Positioning feet

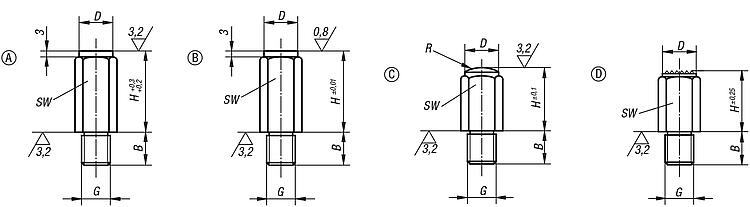

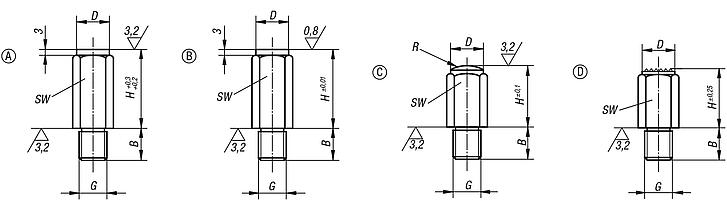

Drawings (total overview)

Positioning feet

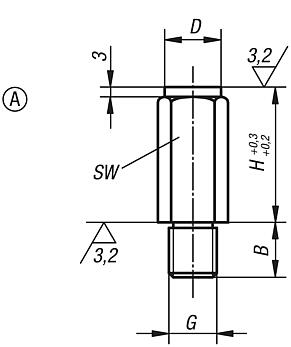

Positioning feet, Form A hardened flat face

More information

Drawings

Positioning feet, Form A hardened flat face

Item selection/filter

Order No.	Form	B	D	G	H	SW	CAD	Acc.	Price	Order
B0184.106010	A	11	10	M6	10	10			3.57 €
B0184.106020	A	11	10	M6	20	10			3.09 €
B0184.108010	A	13	13	M8	10	13			4.42 €
B0184.108015	A	13	13	M8	15	13			4.04 €
B0184.108030	A	13	13	M8	30	13			5.06 €
B0184.110010	A	16	17	M10	10	17			4.71 €
B0184.110020	A	16	17	M10	20	17			3.64 €
B0184.110040	A	16	17	M10	40	17			3.44 €
B0184.112010	A	20	19	M12	10	19			6.02 €
B0184.112025	A	20	19	M12	25	19			6.50 €
B0184.112050	A	20	19	M12	50	19			5.22 €
B0184.116015	A	24	27	M16	15	27			6.61 €
B0184.116030	A	24	27	M16	30	27			15.45 €
B0184.116060	A	24	27	M16	60	27			14.74 €
B0184.120040	A	29	32	M20	40	32			20.12 €
B0184.120080	A	29	32	M20	80	32			25.51 €

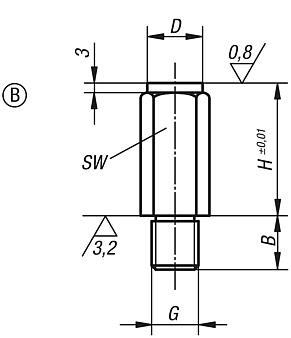

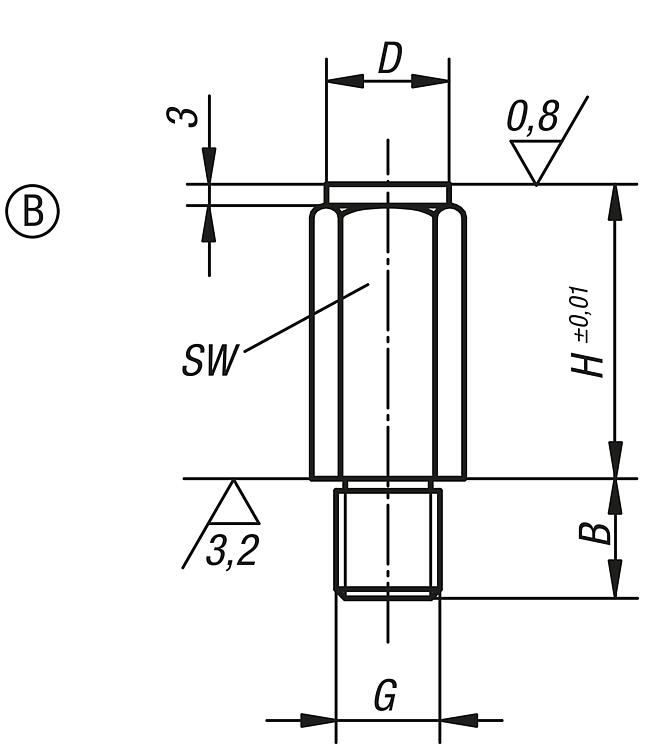

Positioning feet, Form B flat face hardened and ground

More information

Drawings

Positioning feet, Form B flat face hardened and ground

Item selection/filter

Order No.	Form	B	D	G	H	SW	CAD	Acc.	Price	Order
B0184.206010	B	11	10	M6	10	10			8.71 €
B0184.206020	B	11	10	M6	20	10			9.73 €
B0184.208010	B	13	13	M8	10	13			10.71 €
B0184.208015	B	13	13	M8	15	13			10.31 €
B0184.208030	B	13	13	M8	30	13			9.75 €
B0184.210010	B	16	17	M10	10	17			10.71 €
B0184.210020	B	16	17	M10	20	17			11.19 €
B0184.210040	B	16	17	M10	40	17			11.82 €
B0184.212010	B	20	19	M12	10	19			13.87 €
B0184.212025	B	20	19	M12	25	19			13.42 €
B0184.212050	B	20	19	M12	50	19			14.22 €
B0184.216015	B	24	27	M16	15	27			23.95 €
B0184.216030	B	24	27	M16	30	27			25.30 €
B0184.216060	B	24	27	M16	60	27			26.93 €
B0184.220040	B	29	32	M20	40	32			32.36 €
B0184.220080	B	29	32	M20	80	32			36.06 €

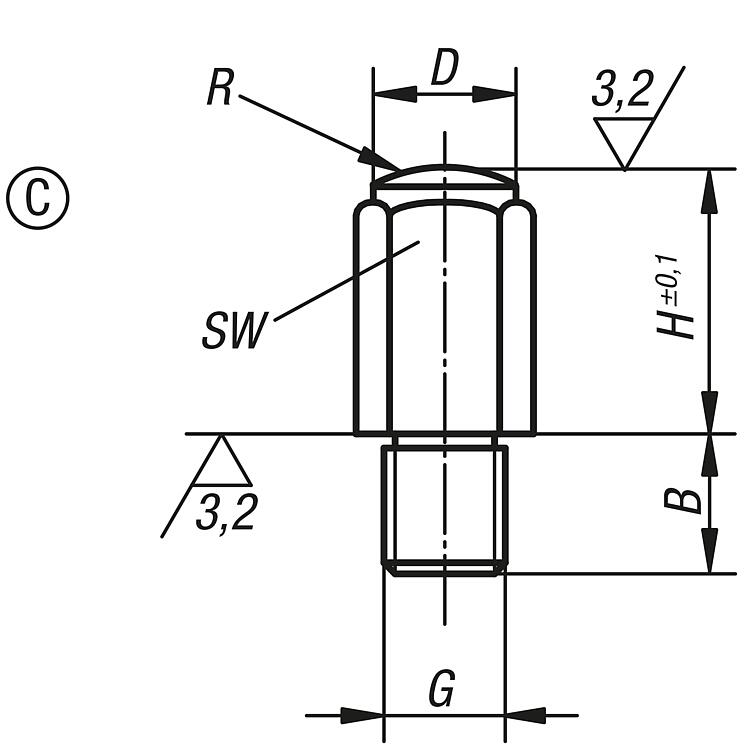

Positioning feet, Form C hardened spherical face

More information

Drawings

Positioning feet, Form C hardened spherical face

Item selection/filter

Order No.	Form	B	D	G	H	R	SW	CAD	Acc.	Price	Order
B0184.306010	C	11	10	M6	10	15	10			5.86 €
B0184.306020	C	11	10	M6	20	15	10			6.61 €
B0184.308010	C	13	13	M8	10	20	13			7.32 €
B0184.308015	C	13	13	M8	15	20	13			10.40 €
B0184.308030	C	13	13	M8	30	20	13			8.72 €
B0184.310010	C	16	17	M10	10	30	17			8.84 €
B0184.310020	C	16	17	M10	20	30	17			11.08 €
B0184.310040	C	16	17	M10	40	30	17			11.46 €
B0184.312010	C	20	19	M12	10	40	19			9.32 €
B0184.312025	C	20	19	M12	25	35	19			14.32 €
B0184.312050	C	20	19	M12	50	35	19			15.36 €
B0184.316015	C	24	27	M16	15	50	27			31.11 €
B0184.316030	C	24	27	M16	30	50	27			24.79 €
B0184.316060	C	24	27	M16	60	50	27			33.38 €
B0184.320040	C	29	32	M20	40	60	32			56.88 €
B0184.320080	C	29	32	M20	80	60	32			44.10 €

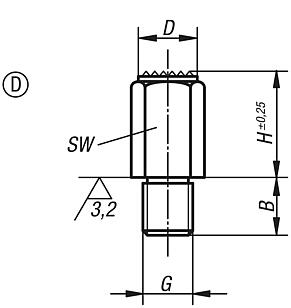

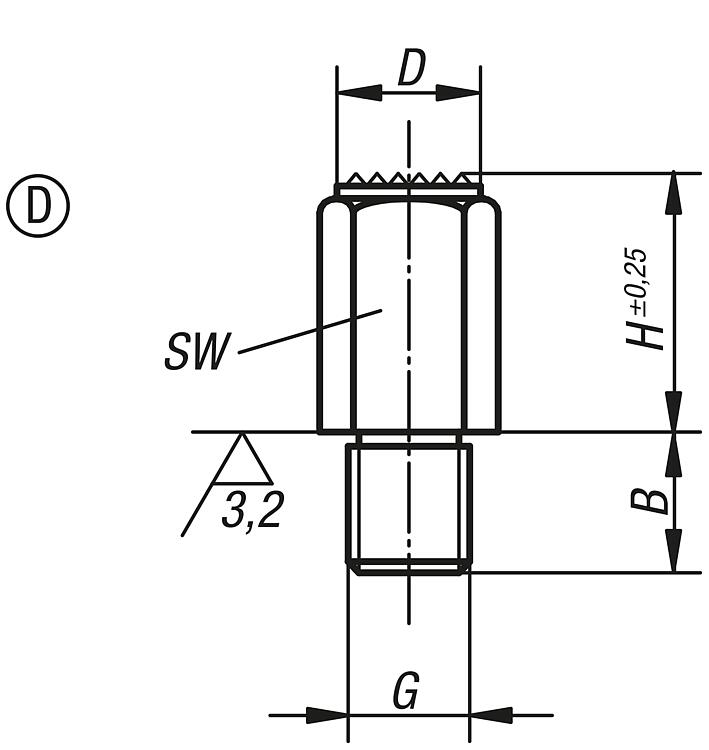

Positioning feet, Form D serrated face tempered

More information

Drawings

Positioning feet, Form D serrated face tempered

Item selection/filter

Order No.	Form	B	D	G	H	SW	CAD	Acc.	Price	Order
B0184.406010	D	11	10	M6	10	10			11.37 €
B0184.406020	D	11	10	M6	20	10			12.00 €
B0184.408015	D	13	13	M8	15	13			11.91 €
B0184.408030	D	13	13	M8	30	13			12.23 €
B0184.410020	D	16	17	M10	20	17			14.22 €
B0184.410040	D	16	17	M10	40	17			14.66 €
B0184.412025	D	20	19	M12	25	19			15.70 €
B0184.412050	D	20	19	M12	50	19			16.24 €
B0184.416030	D	24	27	M16	30	27			27.18 €
B0184.416060	D	24	27	M16	60	27			32.55 €
B0184.420040	D	29	32	M20	40	32			33.24 €
B0184.420080	D	29	32	M20	80	32			42.00 €
