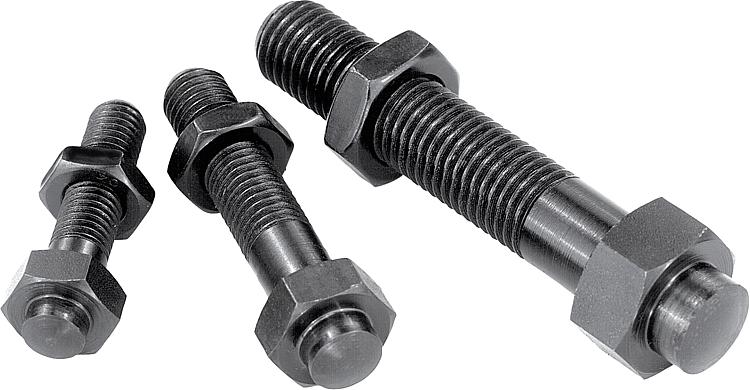

B0194Rest pads adjustable with locknut |
go back |
|

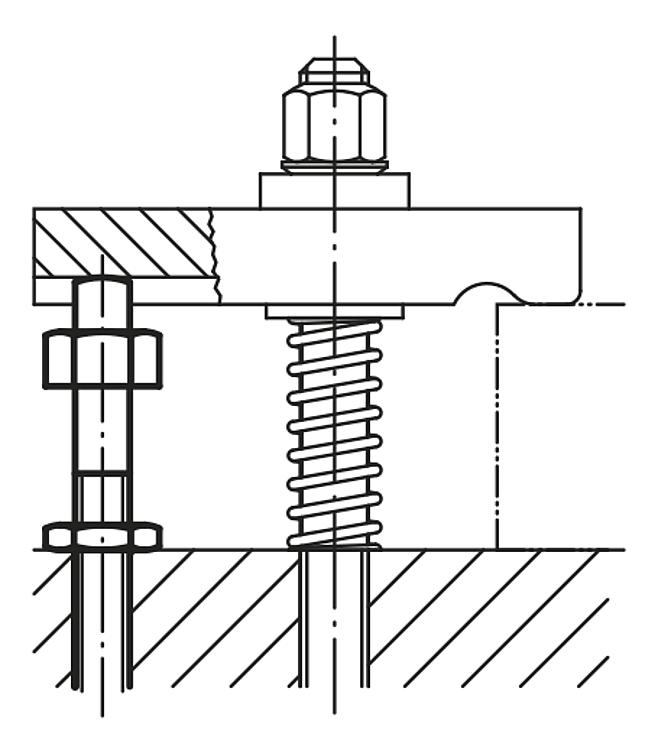

Item description/product images |
|
|
DescriptionMaterial:Carbon steel 1.1181.Version:Surface hardened, black oxidised.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1
| H | H1 | H2 | H3
min.
| H3
max. | H4 | E | SW | R | F
ca.N | CAD | Acc. | Price | Order |
|---|
| B0194.05 | M5 | 5 | 50 | 32 | 40 | 20,5 | 42,5 | 5 | 11,5 | 10 | 7 | 1000 |  | | 6.34 € | | | B0194.06 | M6 | 6 | 50 | 32 | 40 | 21 | 41 | 5 | 11,5 | 10 | 8 | 1430 | | | 6.94 € | | | B0194.08 | M8 | 8 | 50 | 32 | 40 | 22 | 38 | 5 | 15 | 13 | 11 | 2620 | | | 7.29 € | | | B0194.10 | M10 | 10 | 52 | 32 | 40 | 25 | 37 | 5 | 19,6 | 17 | 14 | 4180 | | | 9.30 € | | | B0194.101 | M10 | 10 | 70 | 32 | 56 | 42 | 55 | 6 | 19,6 | 17 | 14 | 4180 | | | 10.09 € | | | B0194.12 | M12 | 12 | 70 | 40 | 56 | 36 | 52 | 6 | 21,9 | 19 | 16 | 6100 | | | 11.35 € | | | B0194.121 | M12 | 12 | 95 | 50 | 80 | 51 | 77 | 6 | 21,9 | 19 | 16 | 6100 | | | 13.67 € | | | B0194.14 | M14 | 14 | 100 | 63 | 80 | 44 | 79 | 8 | 25,4 | 22 | 20 | 8320 | | | 15.05 € | | | B0194.16 | M16 | 16 | 100 | 63 | 80 | 45 | 76 | 8 | 27,7 | 24 | 25 | 11520 | | | 16.08 € | | | B0194.161 | M16 | 16 | 120 | 63 | 100 | 65 | 96 | 8 | 27,7 | 24 | 25 | 11520 | | | 17.03 € | | | B0194.20 | M20 | 20 | 110 | 70 | 88 | 50 | 90 | 10 | 34,6 | 30 | 28 | 18000 | | | 23.59 € | |
