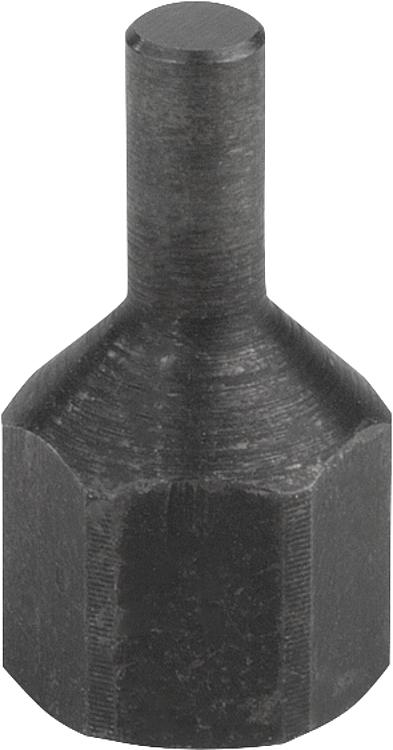

Rest pads pin form, internal thread
 B0190

Rest pads pin form, internal thread

 go back

Item description/product images
DescriptionMaterial:Carbon steel.Version:Tempered, black oxidised.
Seating face inductively hardened and ground.Note:The rest pads can be used both as a stable and precise support and as a stop.
The pin form of the rest pad also allows it to be used with components with constricted support points.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0190 Rest pads pin form, internal thread 139 kB

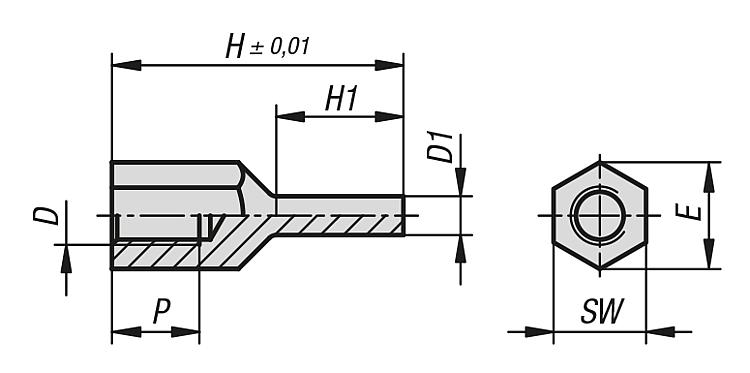

Drawings

Rest pads pin form, internal thread

Item selection/filter
Order No.D

D1EHH1PSWCADAcc.PriceOrder
B0190.2060420M6411208,5610 9.29 €
B0190.2060430M64113013,5910 9.48 €
B0190.2080430M8414,430131013 10.02 €
B0190.2080440M8414,440181413 10.17 €
B0190.2080630M8614,430131013 10.30 €
B0190.2080640M8614,440181413 10.42 €
B0190.2100630M1061930121017 10.70 €
B0190.2100650M1061950251517 11.30 €
B0190.2100830M1081930121017 11.04 €
B0190.2100850M1081950251517 11.58 €
B0190.2120640M12621,240181219 11.52 €
B0190.2120660M12621,260281819 12.03 €
B0190.2120840M12821,240181219 11.78 €
B0190.2120860M12821,260281819 12.31 €
