B0229Clamping levers with internal thread |
go back |
|
Item description/product images |
|
|

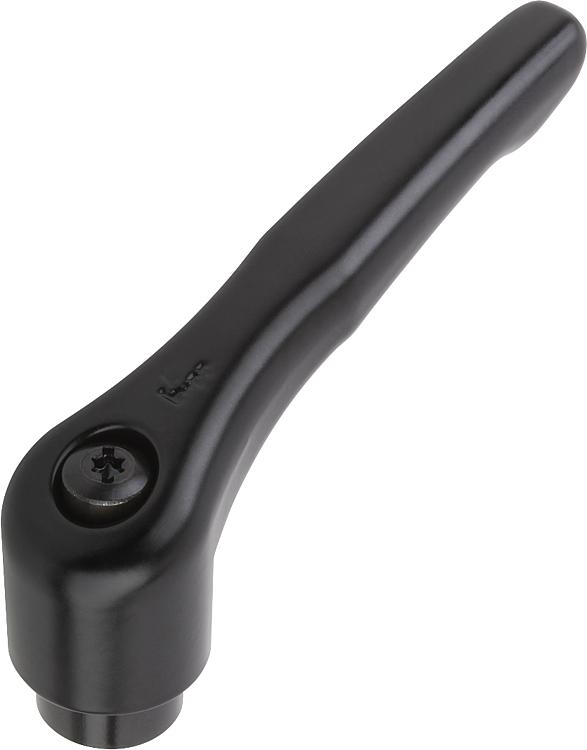

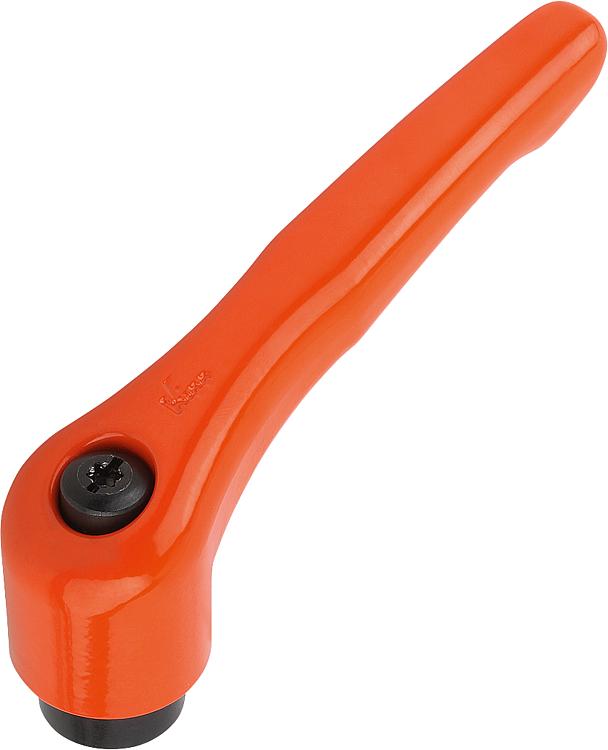

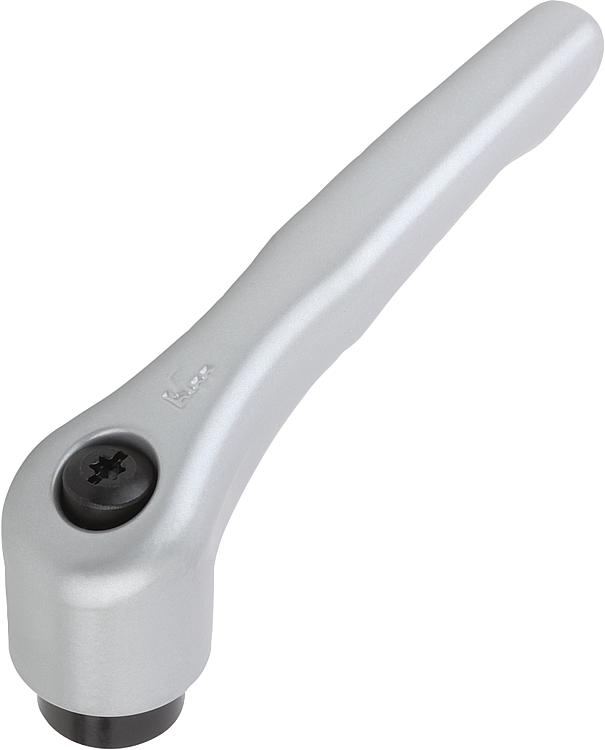

DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle powder-coated or high-gloss chromed.
Steel parts black oxidised.Note:Standard colours are:

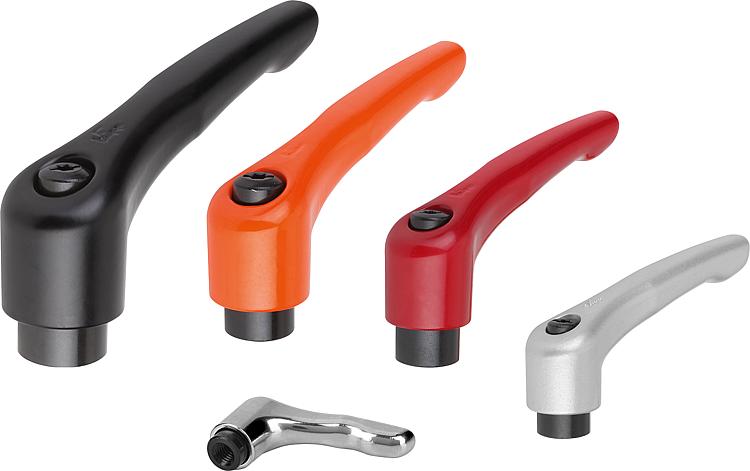

black satin finish, orange RAL 2004, ruby red RAL 3003, silver metallic, high gloss chromed.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Main
material | Size | X | T | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0229.0031 | jet black RAL 9005 | zinc | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 |  | | 4.47 € | | | B0229.0032 | orange RAL 2004 | zinc | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.00327 | ruby red RAL3003 | zinc | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.0033 | silver metallic | zinc | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.0036 | silver | zinc | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 5.84 € | | | B0229.0041 | jet black RAL 9005 | zinc | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.0042 | orange RAL 2004 | zinc | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.00427 | ruby red RAL3003 | zinc | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.0043 | silver metallic | zinc | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.0046 | silver | zinc | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 5.84 € | | | B0229.0051 | jet black RAL 9005 | zinc | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.0052 | orange RAL 2004 | zinc | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.00527 | ruby red RAL3003 | zinc | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.0053 | silver metallic | zinc | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0229.0056 | silver | zinc | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 5.84 € | | | B0229.1041 | jet black RAL 9005 | zinc | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.1042 | orange RAL 2004 | zinc | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.10427 | ruby red RAL3003 | zinc | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.1043 | silver metallic | zinc | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.1046 | silver | zinc | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 5.84 € | | | B0229.1051 | jet black RAL 9005 | zinc | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.1052 | orange RAL 2004 | zinc | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.10527 | ruby red RAL3003 | zinc | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.1053 | silver metallic | zinc | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.1056 | silver | zinc | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 5.84 € | | | B0229.1061 | jet black RAL 9005 | zinc | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.1062 | orange RAL 2004 | zinc | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.10627 | ruby red RAL3003 | zinc | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.1063 | silver metallic | zinc | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0229.1066 | silver | zinc | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 5.84 € | | | B0229.2061 | jet black RAL 9005 | zinc | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0229.2062 | orange RAL 2004 | zinc | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0229.20627 | ruby red RAL3003 | zinc | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0229.2063 | silver metallic | zinc | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0229.2066 | silver | zinc | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 7.35 € | | | B0229.2081 | jet black RAL 9005 | zinc | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0229.2082 | orange RAL 2004 | zinc | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0229.20827 | ruby red RAL3003 | zinc | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0229.2083 | silver metallic | zinc | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0229.2086 | silver | zinc | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 7.35 € | | | B0229.3081 | jet black RAL 9005 | zinc | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0229.3082 | orange RAL 2004 | zinc | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0229.30827 | ruby red RAL3003 | zinc | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0229.3083 | silver metallic | zinc | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0229.3086 | silver | zinc | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.06 € | | | B0229.3101 | jet black RAL 9005 | zinc | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0229.3102 | orange RAL 2004 | zinc | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0229.31027 | ruby red RAL3003 | zinc | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0229.3103 | silver metallic | zinc | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0229.3106 | silver | zinc | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.06 € | | | B0229.4101 | jet black RAL 9005 | zinc | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0229.4102 | orange RAL 2004 | zinc | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0229.41027 | ruby red RAL3003 | zinc | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0229.4103 | silver metallic | zinc | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0229.4106 | silver | zinc | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 9.41 € | | | B0229.4121 | jet black RAL 9005 | zinc | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0229.4122 | orange RAL 2004 | zinc | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0229.41227 | ruby red RAL3003 | zinc | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0229.4123 | silver metallic | zinc | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0229.4126 | silver | zinc | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 9.41 € | | | B0229.5121 | jet black RAL 9005 | zinc | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0229.5122 | orange RAL 2004 | zinc | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0229.51227 | ruby red RAL3003 | zinc | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0229.5123 | silver metallic | zinc | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0229.5126 | silver | zinc | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 11.79 € | | | B0229.5161 | jet black RAL 9005 | zinc | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0229.5162 | orange RAL 2004 | zinc | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0229.51627 | ruby red RAL3003 | zinc | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0229.5163 | silver metallic | zinc | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0229.5166 | silver | zinc | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 11.79 € | |
