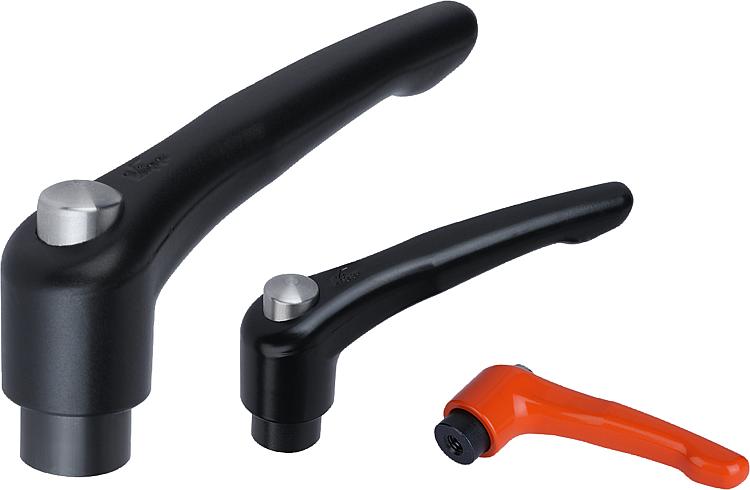

B0230Clamping levers with protective cap, internal thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.
Protective cap stainless steel 1.4305. Version:Handle powder-coated.
Steel parts black oxidised.
Caps bright stainless steel.Note:Standard colours are:
black satin finish, orange RAL 2004.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Size | X | T | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0230.92061 | jet black RAL 9005 | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 |  | | 7.34 € | | | B0230.92062 | orange RAL 2004 | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 7.34 € | | | B0230.92081 | jet black RAL 9005 | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 7.34 € | | | B0230.92082 | orange RAL 2004 | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 7.34 € | | | B0230.93081 | jet black RAL 9005 | 3 | M8 | 14 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.12 € | | | B0230.93082 | orange RAL 2004 | 3 | M8 | 14 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.12 € | | | B0230.93101 | jet black RAL 9005 | 3 | M10 | 14 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.12 € | | | B0230.93102 | orange RAL 2004 | 3 | M10 | 14 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.12 € | |
