B0224Clamping levers, plastic with internal thread, threaded insert... |
go back |
|
Item description/product images |
|
|

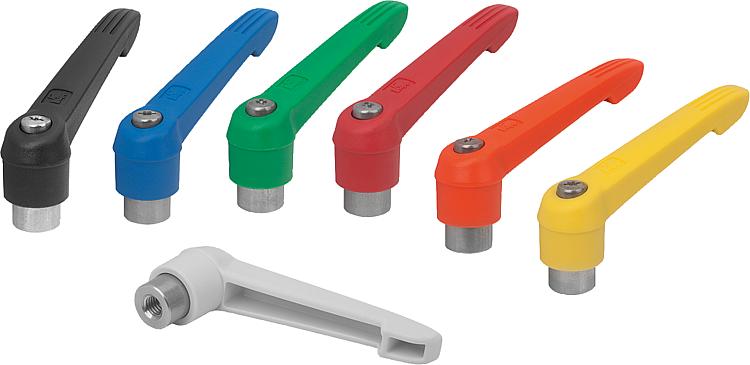

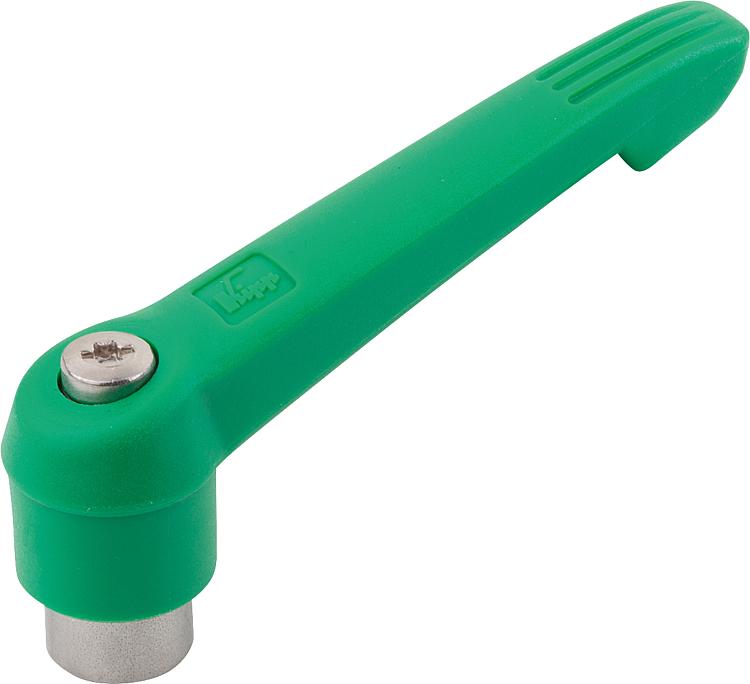

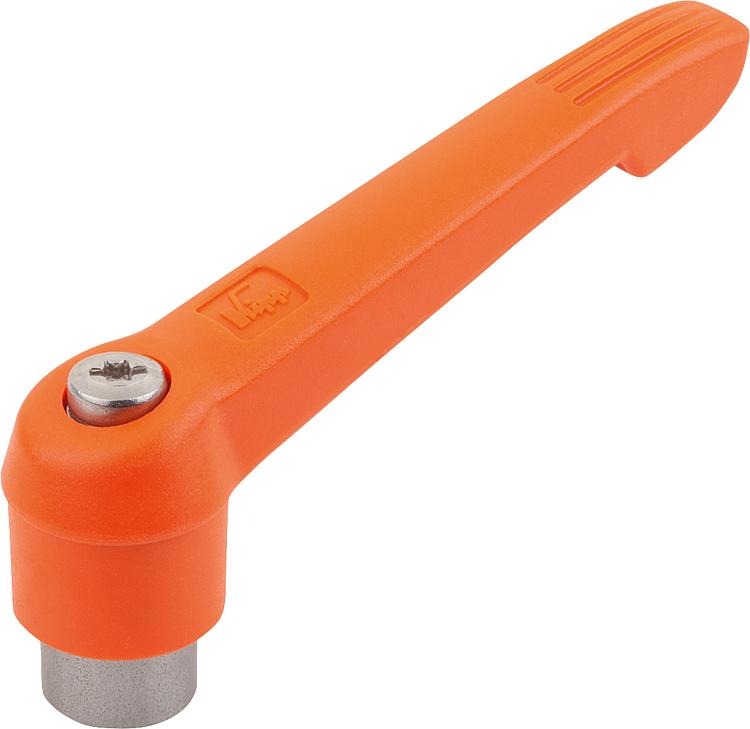

DescriptionMaterial:Handle fibreglass reinforced plastic with die-cast zinc toothed ring.
Steel parts stainless steel 1.4305. Version:Steel parts bright.Note:Δ Add the desired grip colour here.On request:Other threads and special versions.
Dimension “H1” available in other lengths at extra charge.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Main
material | Size | X | T | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0224.1041 | black grey RAL 7021 | plastic | 1 | M4 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 |  | | 5.36 € | | | B0224.1042 | orange RAL 2004 | plastic | 1 | M4 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10416 | colza yellow RAL 1021 | plastic | 1 | M4 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10484 | traffic red RAL 3020 | plastic | 1 | M4 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10486 | signal green RAL 6032 | plastic | 1 | M4 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10487 | traffic blue RAL 5017 | plastic | 1 | M4 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10488 | light grey RAL 7035 | plastic | 1 | M4 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.1051 | black grey RAL 7021 | plastic | 1 | M5 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.1052 | orange RAL 2004 | plastic | 1 | M5 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10516 | colza yellow RAL 1021 | plastic | 1 | M5 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10584 | traffic red RAL 3020 | plastic | 1 | M5 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10586 | signal green RAL 6032 | plastic | 1 | M5 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10587 | traffic blue RAL 5017 | plastic | 1 | M5 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10588 | light grey RAL 7035 | plastic | 1 | M5 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.1061 | black grey RAL 7021 | plastic | 1 | M6 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.1062 | orange RAL 2004 | plastic | 1 | M6 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10616 | colza yellow RAL 1021 | plastic | 1 | M6 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10684 | traffic red RAL 3020 | plastic | 1 | M6 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10686 | signal green RAL 6032 | plastic | 1 | M6 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10687 | traffic blue RAL 5017 | plastic | 1 | M6 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.10688 | light grey RAL 7035 | plastic | 1 | M6 | 9 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 5.36 € | | | B0224.2061 | black grey RAL 7021 | plastic | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.2062 | orange RAL 2004 | plastic | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20616 | colza yellow RAL 1021 | plastic | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20684 | traffic red RAL 3020 | plastic | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20686 | signal green RAL 6032 | plastic | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20687 | traffic blue RAL 5017 | plastic | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20688 | light grey RAL 7035 | plastic | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.2081 | black grey RAL 7021 | plastic | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.2082 | orange RAL 2004 | plastic | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20816 | colza yellow RAL 1021 | plastic | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20884 | traffic red RAL 3020 | plastic | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20886 | signal green RAL 6032 | plastic | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20887 | traffic blue RAL 5017 | plastic | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.20888 | light grey RAL 7035 | plastic | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 6.32 € | | | B0224.3081 | black grey RAL 7021 | plastic | 3 | M8 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.3082 | orange RAL 2004 | plastic | 3 | M8 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.30816 | colza yellow RAL 1021 | plastic | 3 | M8 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.30884 | traffic red RAL 3020 | plastic | 3 | M8 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.30886 | signal green RAL 6032 | plastic | 3 | M8 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.30887 | traffic blue RAL 5017 | plastic | 3 | M8 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.30888 | light grey RAL 7035 | plastic | 3 | M8 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.3101 | black grey RAL 7021 | plastic | 3 | M10 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.3102 | orange RAL 2004 | plastic | 3 | M10 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.31016 | colza yellow RAL 1021 | plastic | 3 | M10 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.31084 | traffic red RAL 3020 | plastic | 3 | M10 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.31086 | signal green RAL 6032 | plastic | 3 | M10 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.31087 | traffic blue RAL 5017 | plastic | 3 | M10 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.31088 | light grey RAL 7035 | plastic | 3 | M10 | 14 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 7.79 € | | | B0224.4101 | black grey RAL 7021 | plastic | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.4102 | orange RAL 2004 | plastic | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41016 | colza yellow RAL 1021 | plastic | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41084 | traffic red RAL 3020 | plastic | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41086 | signal green RAL 6032 | plastic | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41087 | traffic blue RAL 5017 | plastic | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41088 | light grey RAL 7035 | plastic | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.4121 | black grey RAL 7021 | plastic | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.4122 | orange RAL 2004 | plastic | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41216 | colza yellow RAL 1021 | plastic | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41284 | traffic red RAL 3020 | plastic | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41286 | signal green RAL 6032 | plastic | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41287 | traffic blue RAL 5017 | plastic | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.41288 | light grey RAL 7035 | plastic | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 11.20 € | | | B0224.5121 | black grey RAL 7021 | plastic | 5 | M12 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.5122 | orange RAL 2004 | plastic | 5 | M12 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51216 | colza yellow RAL 1021 | plastic | 5 | M12 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51284 | traffic red RAL 3020 | plastic | 5 | M12 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51286 | signal green RAL 6032 | plastic | 5 | M12 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51287 | traffic blue RAL 5017 | plastic | 5 | M12 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51288 | light grey RAL 7035 | plastic | 5 | M12 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.5161 | black grey RAL 7021 | plastic | 5 | M16 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.5162 | orange RAL 2004 | plastic | 5 | M16 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51616 | colza yellow RAL 1021 | plastic | 5 | M16 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51684 | traffic red RAL 3020 | plastic | 5 | M16 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51686 | signal green RAL 6032 | plastic | 5 | M16 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51687 | traffic blue RAL 5017 | plastic | 5 | M16 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | | | B0224.51688 | light grey RAL 7035 | plastic | 5 | M16 | 23 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 13.49 € | |
