Clamping levers, flat, external thread
B0240

Clamping levers, flat, external thread

go back

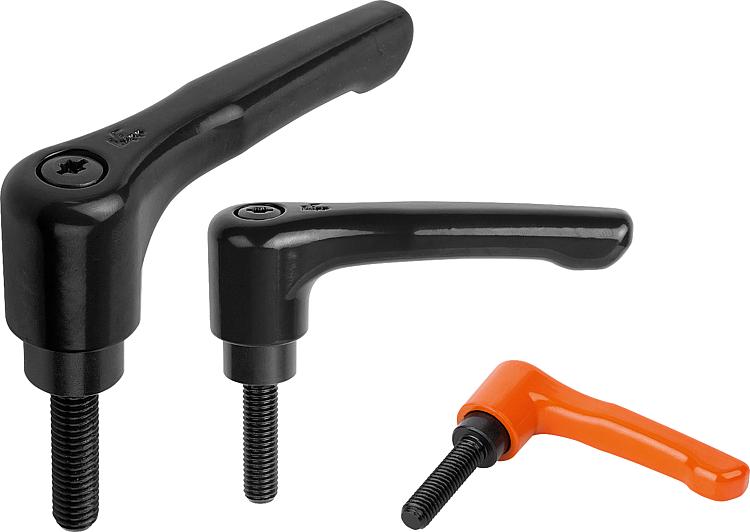

Item description/product images

DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.
Version:Handle powder-coated.
Steel parts black oxidised.
Note:Standard colours are:
black satin finish, orange RAL 2004.

Where L ≥ 60 mm the thread length is 60 mm.
On request:Other threads, screw lengths, colours and special versions.
Dimension “H1” available in other lengths at extra charge.

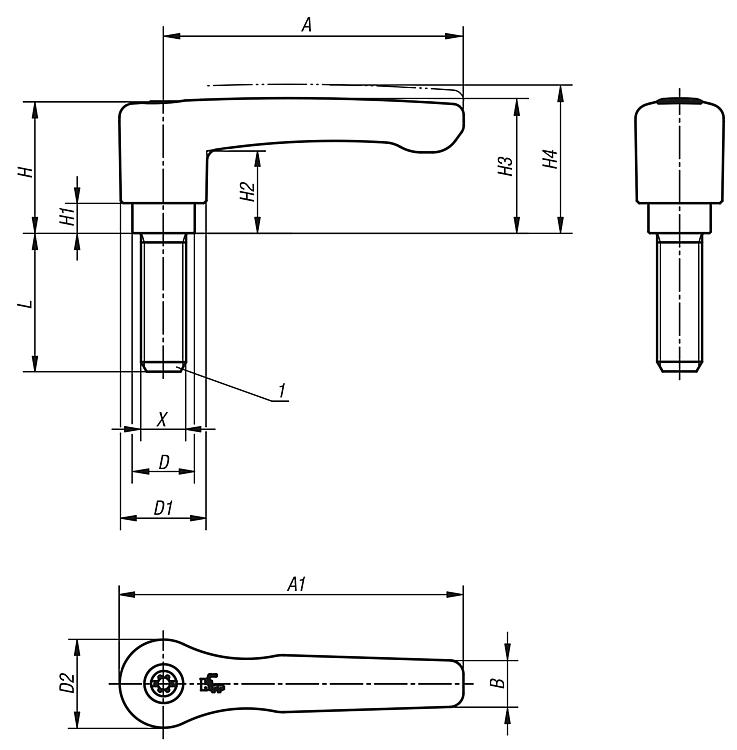

Drawing reference:
1) flat point DIN EN ISO 4753
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0240 Clamping levers, die-cast zinc, flat with external thread, threaded pin black oxidised steel 221 kB

Drawings

Clamping levers, flat, external thread

Overview of items (compressed)

Item selection/filter


  •
  • jet black RAL 9005
  • orange RAL 2004

  •
  • satin finish
  • plastic-coated

  •
  • 2
  • 3

  •
  • M6
  • M8
  • M10

  •
  • 13,5
  • 16

  •
  • 18,5
  • 21,2

  •
  • 19,1
  • 22

  •
  • 28,5
  • 37

  •
  • 6,5
  • 10

  •
  • 17,8
  • 23,8

  •
  • 29,2
  • 38

  •
  • 32,2
  • 42

  •
  • 65
  • 80

  •
  • 74,5
  • 91

  •
  • 10,1
  • 11,7

  •
  • 20
  • 22

  •
  • 15
  • 20
  • 25
  • 30
  • 35
  • 40
  • 45
  • 50
  • 55
  • 60

Reset
Order No.Main
colour
Surface finish
body
SizeXDD1D2HH1H2H3H4AA1BNo. of
teeth
LCADAcc.PriceOrder
B0240.2061X15jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12015  6.54 €
B0240.2062X15orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12015  6.54 €
B0240.2061X20jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12020  6.54 €
B0240.2062X20orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12020  6.54 €
B0240.2061X25jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12025  6.54 €
B0240.2062X25orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12025  6.54 €
B0240.2061X30jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12030  6.54 €
B0240.2062X30orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12030  6.54 €
B0240.2061X35jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12035  6.99 €
B0240.2062X35orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12035  6.99 €
B0240.2061X40jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12040  6.99 €
B0240.2062X40orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12040  6.99 €
B0240.2061X45jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12045  6.99 €
B0240.2062X45orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12045  6.99 €
B0240.2061X50jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12050  6.99 €
B0240.2062X50orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12050  6.99 €
B0240.2061X55jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12055  6.99 €
B0240.2062X55orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12055  6.99 €
B0240.2061X60jet black RAL 9005satin finish2M613,518,519,128,56,517,829,232,26574,510,12060  6.99 €
B0240.2062X60orange RAL 2004plastic-coated2M613,518,519,128,56,517,829,232,26574,510,12060  6.99 €
B0240.2081X15jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12015  6.54 €
B0240.2082X15orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12015  6.54 €
B0240.2081X20jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12020  6.54 €
B0240.2082X20orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12020  6.54 €
B0240.2081X25jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12025  6.54 €
B0240.2082X25orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12025  6.54 €
B0240.2081X30jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12030  6.54 €
B0240.2082X30orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12030  6.54 €
B0240.2081X35jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12035  6.99 €
B0240.2082X35orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12035  6.99 €
B0240.2081X40jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12040  6.99 €
B0240.2082X40orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12040  6.99 €
B0240.2081X45jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12045  6.99 €
B0240.2082X45orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12045  6.99 €
B0240.2081X50jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12050  6.99 €
B0240.2082X50orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12050  6.99 €
B0240.2081X55jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12055  6.99 €
B0240.2082X55orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12055  6.99 €
B0240.2081X60jet black RAL 9005satin finish2M813,518,519,128,56,517,829,232,26574,510,12060  6.99 €
B0240.2101X15jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12015  6.54 €
B0240.2082X60orange RAL 2004plastic-coated2M813,518,519,128,56,517,829,232,26574,510,12060  6.99 €
B0240.2102X15orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12015  6.54 €
B0240.2101X20jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12020  6.54 €
B0240.2102X20orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12020  6.54 €
B0240.2101X25jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12025  6.54 €
B0240.2102X25orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12025  6.54 €
B0240.2101X30jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12030  6.54 €
B0240.2102X30orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12030  6.54 €
B0240.2101X35jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12035  6.99 €
B0240.2102X35orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12035  6.99 €
B0240.2101X40jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12040  6.99 €
B0240.2102X40orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12040  6.99 €
B0240.2101X45jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12045  6.99 €
B0240.2102X45orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12045  6.99 €
B0240.2101X50jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12050  6.99 €
B0240.2102X50orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12050  6.99 €
B0240.2101X55jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12055  6.99 €
B0240.2102X55orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12055  6.99 €
B0240.2101X60jet black RAL 9005satin finish2M1013,518,519,128,56,517,829,232,26574,510,12060  6.99 €
B0240.2102X60orange RAL 2004plastic-coated2M1013,518,519,128,56,517,829,232,26574,510,12060  6.99 €
B0240.3081X15jet black RAL 9005satin finish3M81621,222371023,83842809111,72215  7.20 €
B0240.3082X15orange RAL 2004plastic-coated3M81621,222371023,83842809111,72215  7.20 €
B0240.3081X20jet black RAL 9005satin finish3M81621,222371023,83842809111,72220  7.20 €
B0240.3082X20orange RAL 2004plastic-coated3M81621,222371023,83842809111,72220  7.20 €
B0240.3081X25jet black RAL 9005satin finish3M81621,222371023,83842809111,72225  7.20 €
B0240.3082X25orange RAL 2004plastic-coated3M81621,222371023,83842809111,72225  7.20 €
B0240.3081X30jet black RAL 9005satin finish3M81621,222371023,83842809111,72230  7.20 €
B0240.3082X30orange RAL 2004plastic-coated3M81621,222371023,83842809111,72230  7.20 €
B0240.3081X35jet black RAL 9005satin finish3M81621,222371023,83842809111,72235  7.70 €
B0240.3082X35orange RAL 2004plastic-coated3M81621,222371023,83842809111,72235  7.70 €
B0240.3081X40jet black RAL 9005satin finish3M81621,222371023,83842809111,72240  7.70 €
B0240.3082X40orange RAL 2004plastic-coated3M81621,222371023,83842809111,72240  7.70 €
B0240.3081X45jet black RAL 9005satin finish3M81621,222371023,83842809111,72245  7.70 €
B0240.3082X45orange RAL 2004plastic-coated3M81621,222371023,83842809111,72245  7.70 €
B0240.3081X50jet black RAL 9005satin finish3M81621,222371023,83842809111,72250  7.70 €
B0240.3082X50orange RAL 2004plastic-coated3M81621,222371023,83842809111,72250  7.70 €
B0240.3081X55jet black RAL 9005satin finish3M81621,222371023,83842809111,72255  7.70 €
B0240.3082X55orange RAL 2004plastic-coated3M81621,222371023,83842809111,72255  7.70 €
B0240.3081X60jet black RAL 9005satin finish3M81621,222371023,83842809111,72260  7.70 €
B0240.3082X60orange RAL 2004plastic-coated3M81621,222371023,83842809111,72260  7.70 €
B0240.3101X15jet black RAL 9005satin finish3M101621,222371023,83842809111,72215  7.20 €
B0240.3102X15orange RAL 2004plastic-coated3M101621,222371023,83842809111,72215  7.20 €
B0240.3101X20jet black RAL 9005satin finish3M101621,222371023,83842809111,72220  7.20 €
B0240.3102X20orange RAL 2004plastic-coated3M101621,222371023,83842809111,72220  7.20 €
B0240.3101X25jet black RAL 9005satin finish3M101621,222371023,83842809111,72225  7.20 €
B0240.3102X25orange RAL 2004plastic-coated3M101621,222371023,83842809111,72225  7.20 €
B0240.3101X30jet black RAL 9005satin finish3M101621,222371023,83842809111,72230  7.20 €
B0240.3102X30orange RAL 2004plastic-coated3M101621,222371023,83842809111,72230  7.20 €
B0240.3101X35jet black RAL 9005satin finish3M101621,222371023,83842809111,72235  7.70 €
B0240.3102X35orange RAL 2004plastic-coated3M101621,222371023,83842809111,72235  7.70 €
B0240.3101X40jet black RAL 9005satin finish3M101621,222371023,83842809111,72240  7.70 €
B0240.3102X40orange RAL 2004plastic-coated3M101621,222371023,83842809111,72240  7.70 €
B0240.3101X45jet black RAL 9005satin finish3M101621,222371023,83842809111,72245  7.70 €
B0240.3102X45orange RAL 2004plastic-coated3M101621,222371023,83842809111,72245  7.70 €
B0240.3101X50jet black RAL 9005satin finish3M101621,222371023,83842809111,72250  7.70 €
B0240.3102X50orange RAL 2004plastic-coated3M101621,222371023,83842809111,72250  7.70 €
B0240.3101X55jet black RAL 9005satin finish3M101621,222371023,83842809111,72255  7.70 €
B0240.3102X55orange RAL 2004plastic-coated3M101621,222371023,83842809111,72255  7.70 €
B0240.3101X60jet black RAL 9005satin finish3M101621,222371023,83842809111,72260  7.70 €
B0240.3102X60orange RAL 2004plastic-coated3M101621,222371023,83842809111,72260  7.70 €
