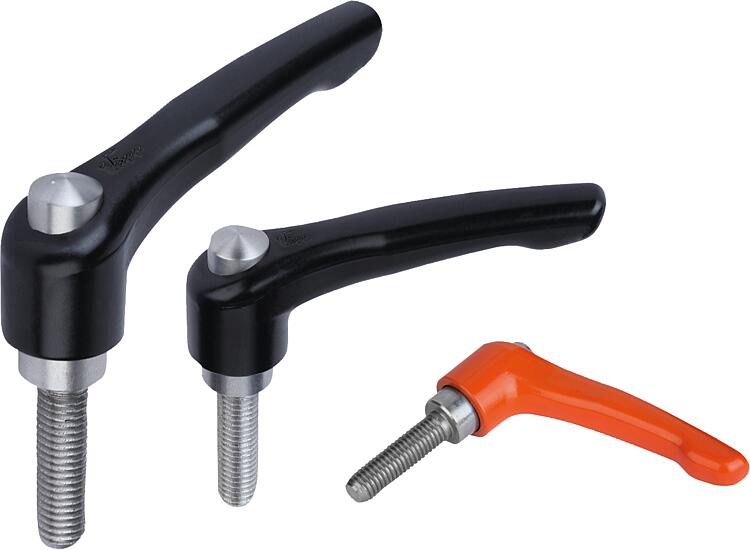

B0238Clamping levers with protective cap, external thread, steel... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts and cap 1.4305 stainless steel. Version:Handle powder-coated.
Steel parts bright.Note:Standard colours are:
black satin finish, orange RAL 2004.
Where L is ≥ 60 mm the thread length is 60 mm.On request:Other threads, screw lengths, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Size | Main
colour | X | L | D | D1 | D2 | B | A | A1 | H | H1 | H2 | H3 | H4 | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0238.92061X15 | 2 | jet black RAL 9005 | M6 | 15 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 |  | | 10.16 € | | | B0238.92062X15 | 2 | orange RAL 2004 | M6 | 15 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92061X20 | 2 | jet black RAL 9005 | M6 | 20 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92062X20 | 2 | orange RAL 2004 | M6 | 20 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92061X25 | 2 | jet black RAL 9005 | M6 | 25 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92062X25 | 2 | orange RAL 2004 | M6 | 25 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92061X30 | 2 | jet black RAL 9005 | M6 | 30 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92062X30 | 2 | orange RAL 2004 | M6 | 30 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92061X40 | 2 | jet black RAL 9005 | M6 | 40 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92062X40 | 2 | orange RAL 2004 | M6 | 40 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92061X50 | 2 | jet black RAL 9005 | M6 | 50 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92062X50 | 2 | orange RAL 2004 | M6 | 50 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92061X60 | 2 | jet black RAL 9005 | M6 | 60 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92062X60 | 2 | orange RAL 2004 | M6 | 60 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92081X15 | 2 | jet black RAL 9005 | M8 | 15 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92082X15 | 2 | orange RAL 2004 | M8 | 15 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92081X20 | 2 | jet black RAL 9005 | M8 | 20 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92082X20 | 2 | orange RAL 2004 | M8 | 20 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92081X25 | 2 | jet black RAL 9005 | M8 | 25 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92082X25 | 2 | orange RAL 2004 | M8 | 25 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92081X30 | 2 | jet black RAL 9005 | M8 | 30 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92082X30 | 2 | orange RAL 2004 | M8 | 30 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92081X40 | 2 | jet black RAL 9005 | M8 | 40 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92082X40 | 2 | orange RAL 2004 | M8 | 40 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92081X50 | 2 | jet black RAL 9005 | M8 | 50 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92082X50 | 2 | orange RAL 2004 | M8 | 50 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92081X60 | 2 | jet black RAL 9005 | M8 | 60 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92082X60 | 2 | orange RAL 2004 | M8 | 60 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92102X20 | 2 | orange RAL 2004 | M10 | 20 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92101X20 | 2 | jet black RAL 9005 | M10 | 20 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92102X25 | 2 | orange RAL 2004 | M10 | 25 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92101X25 | 2 | jet black RAL 9005 | M10 | 25 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92102X30 | 2 | orange RAL 2004 | M10 | 30 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92101X30 | 2 | jet black RAL 9005 | M10 | 30 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.16 € | | | B0238.92102X40 | 2 | orange RAL 2004 | M10 | 40 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92101X40 | 2 | jet black RAL 9005 | M10 | 40 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92102X50 | 2 | orange RAL 2004 | M10 | 50 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92101X50 | 2 | jet black RAL 9005 | M10 | 50 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92102X60 | 2 | orange RAL 2004 | M10 | 60 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.92101X60 | 2 | jet black RAL 9005 | M10 | 60 | 13,5 | 18,5 | 19 | 9,5 | 65 | 74,5 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.79 € | | | B0238.93082X20 | 3 | orange RAL 2004 | M8 | 20 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93081X20 | 3 | jet black RAL 9005 | M8 | 20 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93082X25 | 3 | orange RAL 2004 | M8 | 25 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93081X25 | 3 | jet black RAL 9005 | M8 | 25 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93082X30 | 3 | orange RAL 2004 | M8 | 30 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93081X30 | 3 | jet black RAL 9005 | M8 | 30 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93082X40 | 3 | orange RAL 2004 | M8 | 40 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93081X40 | 3 | jet black RAL 9005 | M8 | 40 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93082X50 | 3 | orange RAL 2004 | M8 | 50 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93081X50 | 3 | jet black RAL 9005 | M8 | 50 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93082X60 | 3 | orange RAL 2004 | M8 | 60 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93081X60 | 3 | jet black RAL 9005 | M8 | 60 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93101X20 | 3 | jet black RAL 9005 | M10 | 20 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93102X20 | 3 | orange RAL 2004 | M10 | 20 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93101X25 | 3 | jet black RAL 9005 | M10 | 25 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93102X25 | 3 | orange RAL 2004 | M10 | 25 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93101X30 | 3 | jet black RAL 9005 | M10 | 30 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93102X30 | 3 | orange RAL 2004 | M10 | 30 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 11.65 € | | | B0238.93101X40 | 3 | jet black RAL 9005 | M10 | 40 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93102X40 | 3 | orange RAL 2004 | M10 | 40 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93101X50 | 3 | jet black RAL 9005 | M10 | 50 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93102X50 | 3 | orange RAL 2004 | M10 | 50 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93101X60 | 3 | jet black RAL 9005 | M10 | 60 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | | | B0238.93102X60 | 3 | orange RAL 2004 | M10 | 60 | 16 | 21 | 22 | 11 | 80 | 91 | 41,5 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.29 € | |
