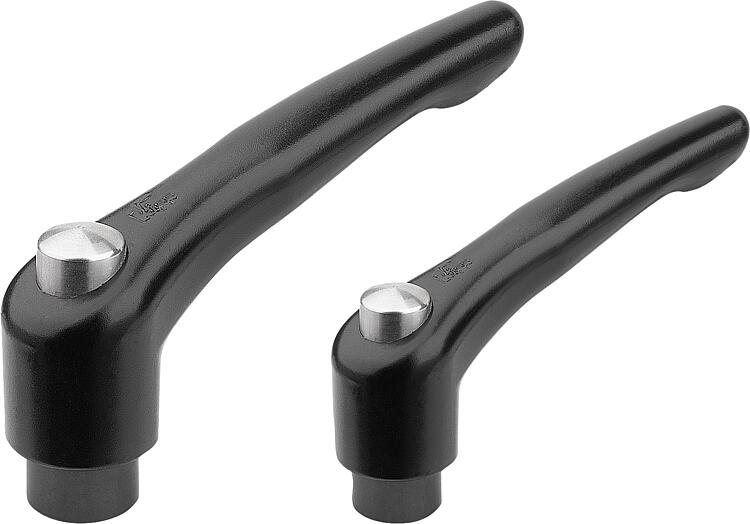

Clamping levers with protective cap and internal thread, satin finish
B0230_SE

Clamping levers with protective cap and internal thread, satin...

go back

Item description/product images

DescriptionMaterial:

Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.
Protective cap stainless steel 1.4305.

Version:Handle powder-coated.
Steel parts black oxidised.
Caps bright stainless steel.
On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0230_SE Clamping levers with protective cap and internal thread, satin finish 235 kB

Drawings

Clamping levers with protective cap and internal thread, satin finish

Item selection/filter

Order No.Main
colour
Surface finish
body
SizeXTDD1D2HH1H2H3H4AA1BNo. of
teeth
CADAcc.PriceOrder
B0230.92061jet black RAL 9005satin finish2M61213,518,519326,517,542,545,56574,59,520 7.34 €
B0230.92081jet black RAL 9005satin finish2M81213,518,519326,517,542,545,56574,59,520 7.34 €
B0230.93081jet black RAL 9005satin finish3M81416212241,5102454,558,580911122 8.12 €
B0230.93101jet black RAL 9005satin finish3M101416212241,5102454,558,580911122 8.12 €
