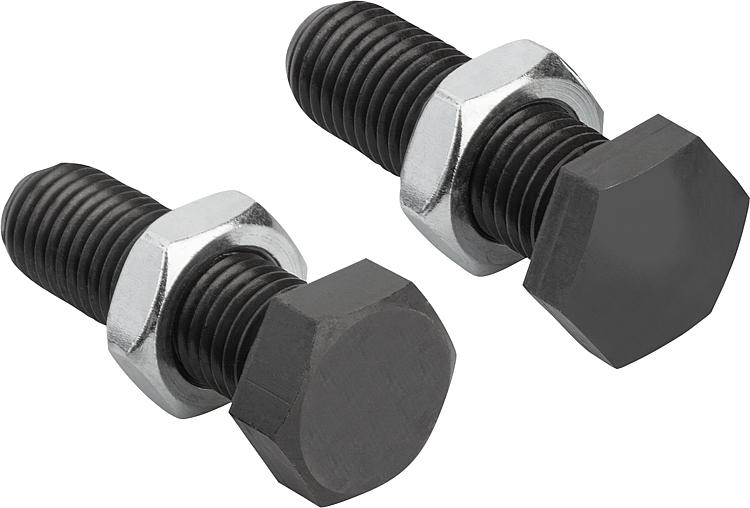

B0196Stop screw steel grade 10.9. |
go back |
|
|
DescriptionMaterial:Steel grade 10.9
(M3 8.8)Version:Stop screw black oxidised.
Nut electro zinc-plated.Note:Size M3 stop screw only available in grade 8.8. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

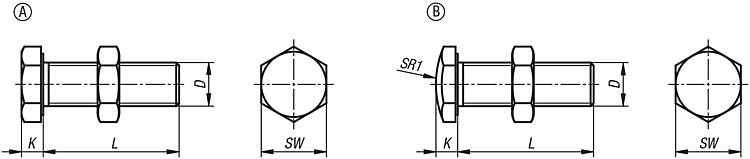

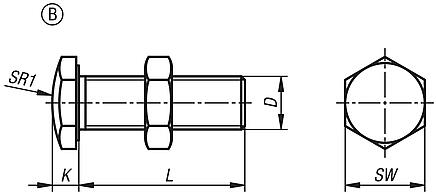

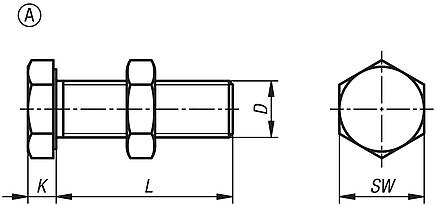

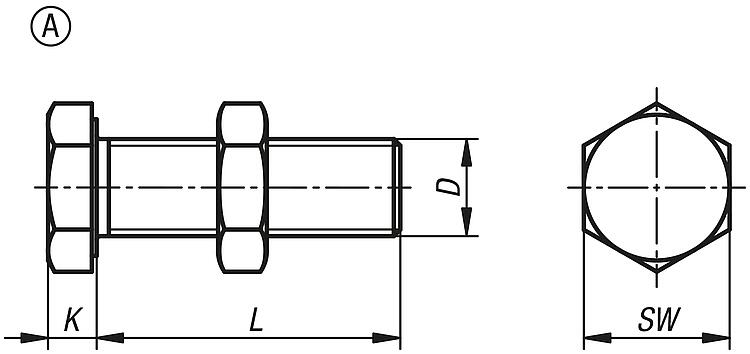

Drawings (total overview) |
Order No.
| Form | D | L | K | SW | CAD | Acc. | Price | Order |
|---|
| B0196.10316 | A | M3 | 16 | 2 | 5,5 |  | | 3.48 € | | | B0196.10325 | A | M3 | 25 | 2 | 5,5 | | | 3.83 € | | | B0196.10416 | A | M4 | 16 | 2,5 | 7 | | | 2.55 € | | | B0196.10425 | A | M4 | 25 | 2,5 | 7 | | | 2.55 € | | | B0196.10435 | A | M4 | 35 | 2,5 | 7 | | | 2.64 € | | | B0196.10516 | A | M5 | 16 | 3,5 | 8 | | | 2.55 € | | | B0196.10525 | A | M5 | 25 | 3,5 | 8 | | | 2.55 € | | | B0196.10535 | A | M5 | 35 | 3,5 | 8 | | | 2.64 € | | | B0196.10625 | A | M6 | 25 | 3,8 | 10 | | | 2.55 € | | | B0196.10635 | A | M6 | 35 | 3,8 | 10 | | | 2.64 € | | | B0196.10640 | A | M6 | 40 | 3,8 | 10 | | | 2.64 € | | | B0196.10812 | A | M8 | 12 | 5 | 13 | | | 2.64 € | | | B0196.10816 | A | M8 | 16 | 5 | 13 | | | 2.64 € | | | B0196.10820 | A | M8 | 20 | 5 | 13 | | | 2.64 € | | | B0196.10825 | A | M8 | 25 | 5 | 13 | | | 2.71 € | | | B0196.10830 | A | M8 | 30 | 5 | 13 | | | 2.89 € | | | B0196.10835 | A | M8 | 35 | 5 | 13 | | | 2.89 € | | | B0196.10840 | A | M8 | 40 | 5 | 13 | | | 3.09 € | | | B0196.10845 | A | M8 | 45 | 5 | 13 | | | 3.09 € | | | B0196.10850 | A | M8 | 50 | 5 | 13 | | | 3.21 € | | | B0196.10855 | A | M8 | 55 | 5 | 13 | | | 3.21 € | | | B0196.10865 | A | M8 | 65 | 5 | 13 | | | 3.35 € | | | B0196.10870 | A | M8 | 70 | 5 | 13 | | | 3.35 € | | | B0196.10885 | A | M8 | 85 | 5 | 13 | | | 3.48 € | | | B0196.11035 | A | M10 | 35 | 6 | 17 | | | 3.27 € | | | B0196.11040 | A | M10 | 40 | 6 | 17 | | | 3.68 € | | | B0196.11050 | A | M10 | 50 | 6 | 17 | | | 3.83 € | | | B0196.11060 | A | M10 | 60 | 6 | 17 | | | 4.11 € | | | B0196.11240 | A | M12 | 40 | 7 | 19 | | | 4.90 € | | | B0196.11260 | A | M12 | 60 | 7 | 19 | | | 5.27 € | | | B0196.11270 | A | M12 | 70 | 7 | 19 | | | 5.59 € | | | B0196.11650 | A | M16 | 50 | 9,5 | 24 | | | 6.94 € | | | B0196.11660 | A | M16 | 60 | 9,5 | 24 | | | 7.47 € | | | B0196.11670 | A | M16 | 70 | 9,5 | 24 | | | 8.43 € | |
|
Order No.
| Form | D | L | K | SW | SR1 | CAD | Acc. | Price | Order |
|---|
| B0196.20316 | B | M3 | 16 | 2 | 5,5 | 10 | | | 3.66 € | | | B0196.20325 | B | M3 | 25 | 2 | 5,5 | 10 | | | 4.03 € | | | B0196.20416 | B | M4 | 16 | 2,5 | 7 | 10 | | | 2.70 € | | | B0196.20425 | B | M4 | 25 | 2,5 | 7 | 10 | | | 2.70 € | | | B0196.20435 | B | M4 | 35 | 2,5 | 7 | 10 | | | 2.77 € | | | B0196.20516 | B | M5 | 16 | 3,5 | 8 | 12 | | | 2.70 € | | | B0196.20525 | B | M5 | 25 | 3,5 | 8 | 12 | | | 2.70 € | | | B0196.20535 | B | M5 | 35 | 3,5 | 8 | 12 | | | 2.77 € | | | B0196.20625 | B | M6 | 25 | 3,8 | 10 | 15 | | | 2.70 € | | | B0196.20635 | B | M6 | 35 | 3,8 | 10 | 15 | | | 2.77 € | | | B0196.20640 | B | M6 | 40 | 3,8 | 10 | 15 | | | 2.77 € | | | B0196.20812 | B | M8 | 12 | 5 | 13 | 20 | | | 2.77 € | | | B0196.20816 | B | M8 | 16 | 5 | 13 | 20 | | | 2.77 € | | | B0196.20820 | B | M8 | 20 | 5 | 13 | 20 | | | 2.77 € | | | B0196.20825 | B | M8 | 25 | 5 | 13 | 20 | | | 2.83 € | | | B0196.20830 | B | M8 | 30 | 5 | 13 | 20 | | | 3.04 € | | | B0196.20835 | B | M8 | 35 | 5 | 13 | 20 | | | 3.04 € | | | B0196.20840 | B | M8 | 40 | 5 | 13 | 20 | | | 3.23 € | | | B0196.20845 | B | M8 | 45 | 5 | 13 | 20 | | | 3.23 € | | | B0196.20850 | B | M8 | 50 | 5 | 13 | 20 | | | 3.38 € | | | B0196.20855 | B | M8 | 55 | 5 | 13 | 20 | | | 3.38 € | | | B0196.20865 | B | M8 | 65 | 5 | 13 | 20 | | | 3.50 € | | | B0196.20870 | B | M8 | 70 | 5 | 13 | 20 | | | 3.50 € | | | B0196.20885 | B | M8 | 85 | 5 | 13 | 20 | | | 3.66 € | | | B0196.21035 | B | M10 | 35 | 6 | 17 | 30 | | | 3.43 € | | | B0196.21040 | B | M10 | 40 | 6 | 17 | 30 | | | 3.83 € | | | B0196.21050 | B | M10 | 50 | 6 | 17 | 30 | | | 4.03 € | | | B0196.21060 | B | M10 | 60 | 6 | 17 | 30 | | | 4.32 € | | | B0196.21240 | B | M12 | 40 | 7 | 19 | 30 | | | 5.12 € | | | B0196.21260 | B | M12 | 60 | 7 | 19 | 30 | | | 5.53 € | | | B0196.21270 | B | M12 | 70 | 7 | 19 | 30 | | | 5.87 € | | | B0196.21650 | B | M16 | 50 | 9,5 | 24 | 35 | | | 7.27 € | | | B0196.21660 | B | M16 | 60 | 9,5 | 24 | 35 | | | 7.82 € | | | B0196.21670 | B | M16 | 70 | 9,5 | 24 | 35 | | | 8.82 € | |
|
