Rest pad tempered and black oxidised steel
B0186

Rest pad tempered and black oxidised steel

go back

Item description/product images

Show/filter all items

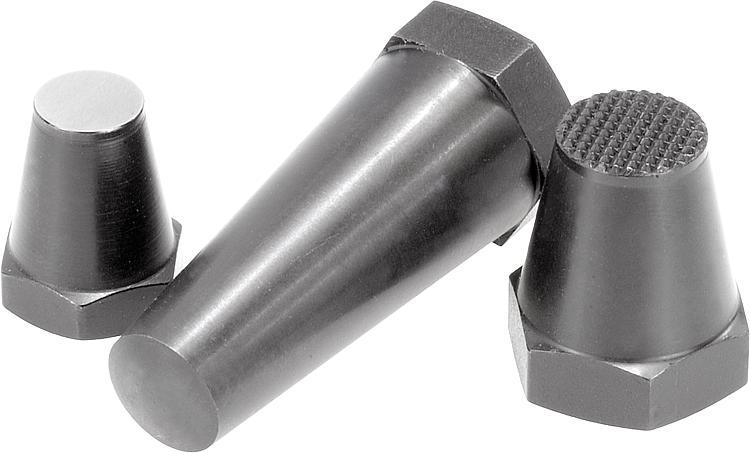

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.Note:Rest pads are for supporting machined and non-machined parts. They can also be used as stops and thrust pads in fixtures and toolmaking.
Studs or grub screws can be screwed and glued into the tapped hole D to make a rest pad with external thread.

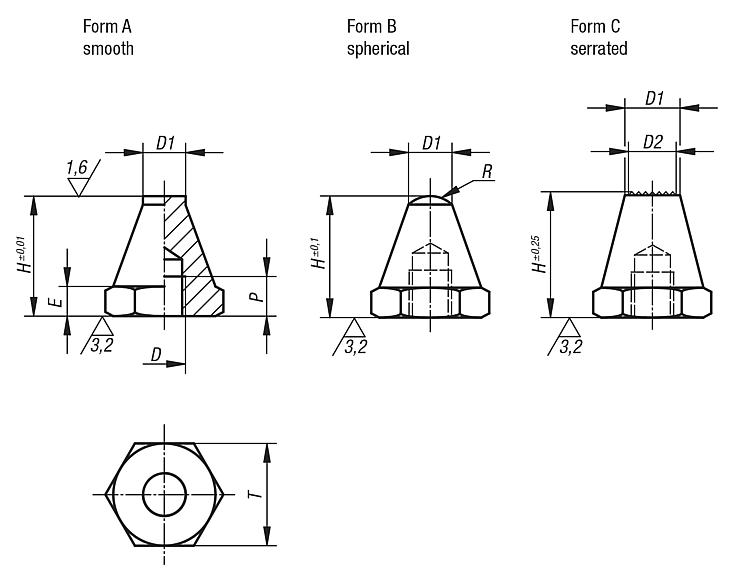

Drawing reference:
Form A: flat face
Form B: ball end
Form C: diamond grip
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0186 Rest pad tempered and black oxidised steel 187 kB

Drawings (total overview)

Rest pad tempered and black oxidised steel

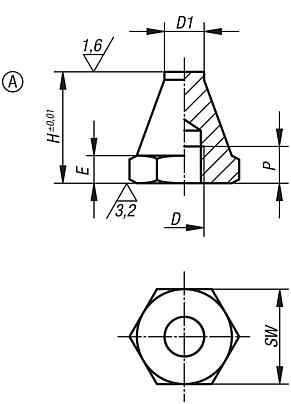

Rest pad, steel, Form A flat face

More information

Drawings

Rest pad, steel, Form A flat face

Item selection/filter

Order No.FormDD1EHPSWCADAcc.PriceOrder
B0186.106012AM66312,5411 12.23 €
B0186.106025AM66325711 13.72 €
B0186.108015AM88415613 14.15 €
B0186.108030AM88430913 15.94 €
B0186.110020AM1010520917 17.06 €
B0186.110040AM10105401317 18.14 €
B0186.112025AM12126251119 18.45 €
B0186.112050AM12126501619 20.12 €
B0186.116030AM16168301224 37.74 €
B0186.116060AM16168602024 45.97 €

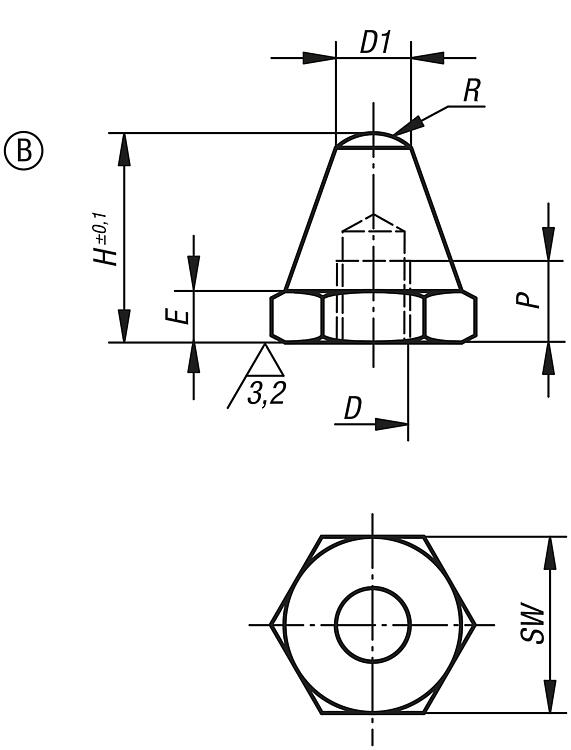

Rest pad, steel, Form B spherical face

More information

Drawings

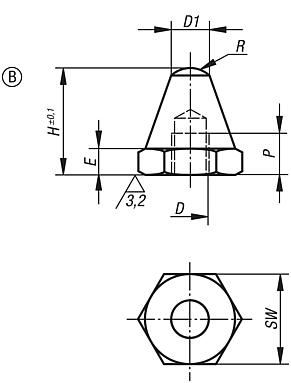

Rest pad, steel, Form B spherical face

Item selection/filter

Order No.FormDD1EHPRSWCADAcc.PriceOrder
B0186.206012BM66312,54511 10.10 €
B0186.206025BM663257511 11.83 €
B0186.208015BM8841568,513 11.55 €
B0186.208030BM8843098,513 12.30 €
B0186.210020BM10105209917 12.81 €
B0186.210040BM101054013917 14.05 €
B0186.212025BM12126251112,7519 14.05 €
B0186.212050BM12126501612,7519 15.05 €
B0186.216030BM1616830121724 26.93 €
B0186.216060BM1616860201724 32.09 €

Rest pad, steel, Form C serrated face

More information

Drawings

Rest pad, steel, Form C serrated face

Item selection/filter

Order No.Form

DD1D2EHPSWCADAcc.PriceOrder
B0186.306012CM665312,5411 13.44 €
B0186.306025CM665325711 13.99 €
B0186.308015CM886415613 13.95 €
B0186.308030CM886430913 14.70 €
B0186.310020CM10108520917 16.35 €
B0186.310040CM101085401317 17.03 €
B0186.312025CM12129,56251119 15.73 €
B0186.312050CM12129,56501619 17.17 €
B0186.316030CM1616138301224 34.74 €
B0186.316060CM1616138602024 40.58 €
