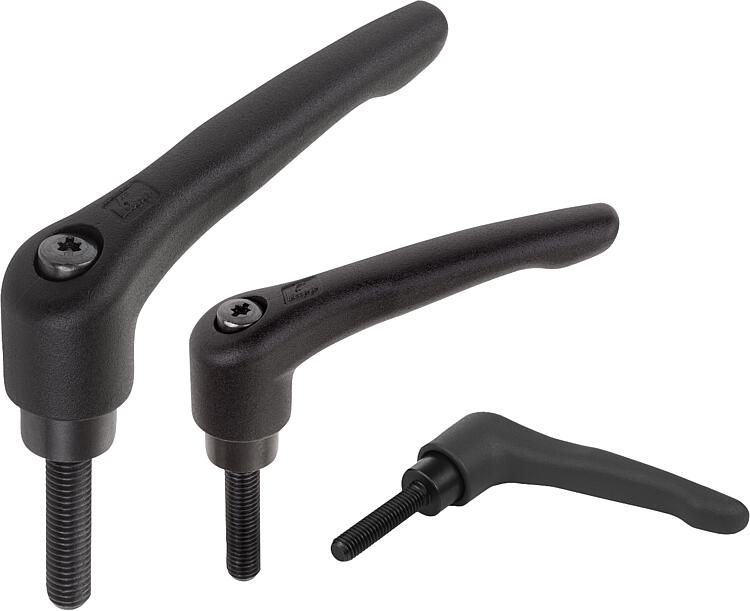

B0244_SEClamping levers, steel with external thread, satin finish |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle steel 1.0401.
All other steel parts grade 5.8.Version:Handle powder-coated.
Steel parts black oxidised.Note:Where L ≥ 60 mm the thread length is always 60 mm.
Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Size | Main
colour | Surface finish
body | X | L | D | D1 | D2 | B | A | A1 | H | H1 | H2 | H3 | H4 | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0244.1051X10 | 1 | jet black RAL 9005 | satin finish | M5 | 10 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 |  | | 7.55 € | | | B0244.1051X15 | 1 | jet black RAL 9005 | satin finish | M5 | 15 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.55 € | | | B0244.1051X20 | 1 | jet black RAL 9005 | satin finish | M5 | 20 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.55 € | | | B0244.1051X25 | 1 | jet black RAL 9005 | satin finish | M5 | 25 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.55 € | | | B0244.1051X30 | 1 | jet black RAL 9005 | satin finish | M5 | 30 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.55 € | | | B0244.1051X35 | 1 | jet black RAL 9005 | satin finish | M5 | 35 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.76 € | | | B0244.1051X40 | 1 | jet black RAL 9005 | satin finish | M5 | 40 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.76 € | | | B0244.1051X45 | 1 | jet black RAL 9005 | satin finish | M5 | 45 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.76 € | | | B0244.1051X50 | 1 | jet black RAL 9005 | satin finish | M5 | 50 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.76 € | | | B0244.1061X10 | 1 | jet black RAL 9005 | satin finish | M6 | 10 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.55 € | | | B0244.1061X15 | 1 | jet black RAL 9005 | satin finish | M6 | 15 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.55 € | | | B0244.1061X20 | 1 | jet black RAL 9005 | satin finish | M6 | 20 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.55 € | | | B0244.1061X25 | 1 | jet black RAL 9005 | satin finish | M6 | 25 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.55 € | | | B0244.1061X30 | 1 | jet black RAL 9005 | satin finish | M6 | 30 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.55 € | | | B0244.1061X35 | 1 | jet black RAL 9005 | satin finish | M6 | 35 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.76 € | | | B0244.1061X40 | 1 | jet black RAL 9005 | satin finish | M6 | 40 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.76 € | | | B0244.1061X45 | 1 | jet black RAL 9005 | satin finish | M6 | 45 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.76 € | | | B0244.1061X50 | 1 | jet black RAL 9005 | satin finish | M6 | 50 | 10 | 13 | 14 | 7 | 40 | 47 | 24,5 | 4 | 14,5 | 31 | 34 | 16 | | | 7.76 € | | | B0244.2061X15 | 2 | jet black RAL 9005 | satin finish | M6 | 15 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2061X20 | 2 | jet black RAL 9005 | satin finish | M6 | 20 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2061X25 | 2 | jet black RAL 9005 | satin finish | M6 | 25 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2061X30 | 2 | jet black RAL 9005 | satin finish | M6 | 30 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2061X35 | 2 | jet black RAL 9005 | satin finish | M6 | 35 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2061X40 | 2 | jet black RAL 9005 | satin finish | M6 | 40 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2061X45 | 2 | jet black RAL 9005 | satin finish | M6 | 45 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2061X50 | 2 | jet black RAL 9005 | satin finish | M6 | 50 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2061X55 | 2 | jet black RAL 9005 | satin finish | M6 | 55 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2061X60 | 2 | jet black RAL 9005 | satin finish | M6 | 60 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2081X15 | 2 | jet black RAL 9005 | satin finish | M8 | 15 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2081X20 | 2 | jet black RAL 9005 | satin finish | M8 | 20 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2081X25 | 2 | jet black RAL 9005 | satin finish | M8 | 25 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2081X30 | 2 | jet black RAL 9005 | satin finish | M8 | 30 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2081X35 | 2 | jet black RAL 9005 | satin finish | M8 | 35 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2081X40 | 2 | jet black RAL 9005 | satin finish | M8 | 40 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2081X45 | 2 | jet black RAL 9005 | satin finish | M8 | 45 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2081X50 | 2 | jet black RAL 9005 | satin finish | M8 | 50 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2081X55 | 2 | jet black RAL 9005 | satin finish | M8 | 55 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2081X60 | 2 | jet black RAL 9005 | satin finish | M8 | 60 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2101X15 | 2 | jet black RAL 9005 | satin finish | M10 | 15 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2101X20 | 2 | jet black RAL 9005 | satin finish | M10 | 20 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2101X25 | 2 | jet black RAL 9005 | satin finish | M10 | 25 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2101X30 | 2 | jet black RAL 9005 | satin finish | M10 | 30 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.01 € | | | B0244.2101X35 | 2 | jet black RAL 9005 | satin finish | M10 | 35 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2101X40 | 2 | jet black RAL 9005 | satin finish | M10 | 40 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2101X45 | 2 | jet black RAL 9005 | satin finish | M10 | 45 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2101X50 | 2 | jet black RAL 9005 | satin finish | M10 | 50 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2101X55 | 2 | jet black RAL 9005 | satin finish | M10 | 55 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.2101X60 | 2 | jet black RAL 9005 | satin finish | M10 | 60 | 13,5 | 18,5 | 19 | 10 | 65 | 74,5 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 20 | | | 10.52 € | | | B0244.3081X15 | 3 | jet black RAL 9005 | satin finish | M8 | 15 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.23 € | | | B0244.3081X20 | 3 | jet black RAL 9005 | satin finish | M8 | 20 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.23 € | | | B0244.3081X25 | 3 | jet black RAL 9005 | satin finish | M8 | 25 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.23 € | | | B0244.3081X30 | 3 | jet black RAL 9005 | satin finish | M8 | 30 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.23 € | | | B0244.3081X35 | 3 | jet black RAL 9005 | satin finish | M8 | 35 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3081X40 | 3 | jet black RAL 9005 | satin finish | M8 | 40 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3081X45 | 3 | jet black RAL 9005 | satin finish | M8 | 45 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3081X50 | 3 | jet black RAL 9005 | satin finish | M8 | 50 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3081X55 | 3 | jet black RAL 9005 | satin finish | M8 | 55 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3081X60 | 3 | jet black RAL 9005 | satin finish | M8 | 60 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3101X15 | 3 | jet black RAL 9005 | satin finish | M10 | 15 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.23 € | | | B0244.3101X20 | 3 | jet black RAL 9005 | satin finish | M10 | 20 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.23 € | | | B0244.3101X25 | 3 | jet black RAL 9005 | satin finish | M10 | 25 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.23 € | | | B0244.3101X30 | 3 | jet black RAL 9005 | satin finish | M10 | 30 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.23 € | | | B0244.3101X35 | 3 | jet black RAL 9005 | satin finish | M10 | 35 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3101X40 | 3 | jet black RAL 9005 | satin finish | M10 | 40 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3101X45 | 3 | jet black RAL 9005 | satin finish | M10 | 45 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3101X50 | 3 | jet black RAL 9005 | satin finish | M10 | 50 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3101X55 | 3 | jet black RAL 9005 | satin finish | M10 | 55 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.3101X60 | 3 | jet black RAL 9005 | satin finish | M10 | 60 | 16 | 21 | 22 | 11 | 80 | 91 | 37 | 10 | 24 | 54,5 | 58,5 | 22 | | | 12.76 € | | | B0244.4101X20 | 4 | jet black RAL 9005 | satin finish | M10 | 20 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 15.63 € | | | B0244.4101X25 | 4 | jet black RAL 9005 | satin finish | M10 | 25 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 15.63 € | | | B0244.4101X30 | 4 | jet black RAL 9005 | satin finish | M10 | 30 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 15.63 € | | | B0244.4101X35 | 4 | jet black RAL 9005 | satin finish | M10 | 35 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4101X40 | 4 | jet black RAL 9005 | satin finish | M10 | 40 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4101X45 | 4 | jet black RAL 9005 | satin finish | M10 | 45 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4101X50 | 4 | jet black RAL 9005 | satin finish | M10 | 50 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4101X55 | 4 | jet black RAL 9005 | satin finish | M10 | 55 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4101X60 | 4 | jet black RAL 9005 | satin finish | M10 | 60 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4101X70 | 4 | jet black RAL 9005 | satin finish | M10 | 70 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 19.48 € | | | B0244.4101X80 | 4 | jet black RAL 9005 | satin finish | M10 | 80 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 19.48 € | | | B0244.4101X90 | 4 | jet black RAL 9005 | satin finish | M10 | 90 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 19.48 € | | | B0244.4121X20 | 4 | jet black RAL 9005 | satin finish | M12 | 20 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 15.63 € | | | B0244.4121X25 | 4 | jet black RAL 9005 | satin finish | M12 | 25 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 15.63 € | | | B0244.4121X30 | 4 | jet black RAL 9005 | satin finish | M12 | 30 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 15.63 € | | | B0244.4121X35 | 4 | jet black RAL 9005 | satin finish | M12 | 35 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4121X40 | 4 | jet black RAL 9005 | satin finish | M12 | 40 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4121X45 | 4 | jet black RAL 9005 | satin finish | M12 | 45 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4121X50 | 4 | jet black RAL 9005 | satin finish | M12 | 50 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4121X55 | 4 | jet black RAL 9005 | satin finish | M12 | 55 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4121X60 | 4 | jet black RAL 9005 | satin finish | M12 | 60 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 16.53 € | | | B0244.4121X70 | 4 | jet black RAL 9005 | satin finish | M12 | 70 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 19.48 € | | | B0244.4121X80 | 4 | jet black RAL 9005 | satin finish | M12 | 80 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 19.48 € | | | B0244.4121X90 | 4 | jet black RAL 9005 | satin finish | M12 | 90 | 19 | 27 | 27,5 | 13 | 95 | 109 | 43 | 10 | 27 | 63 | 67,5 | 24 | | | 19.48 € | | | B0244.5121X25 | 5 | jet black RAL 9005 | satin finish | M12 | 25 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 24.70 € | | | B0244.5121X30 | 5 | jet black RAL 9005 | satin finish | M12 | 30 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 24.70 € | | | B0244.5121X35 | 5 | jet black RAL 9005 | satin finish | M12 | 35 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5121X40 | 5 | jet black RAL 9005 | satin finish | M12 | 40 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5121X45 | 5 | jet black RAL 9005 | satin finish | M12 | 45 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5121X50 | 5 | jet black RAL 9005 | satin finish | M12 | 50 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5121X55 | 5 | jet black RAL 9005 | satin finish | M12 | 55 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5121X60 | 5 | jet black RAL 9005 | satin finish | M12 | 60 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5121X70 | 5 | jet black RAL 9005 | satin finish | M12 | 70 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 27.08 € | | | B0244.5121X80 | 5 | jet black RAL 9005 | satin finish | M12 | 80 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 27.08 € | | | B0244.5121X90 | 5 | jet black RAL 9005 | satin finish | M12 | 90 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 27.08 € | | | B0244.5161X25 | 5 | jet black RAL 9005 | satin finish | M16 | 25 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 24.70 € | | | B0244.5161X30 | 5 | jet black RAL 9005 | satin finish | M16 | 30 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 24.70 € | | | B0244.5161X35 | 5 | jet black RAL 9005 | satin finish | M16 | 35 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5161X40 | 5 | jet black RAL 9005 | satin finish | M16 | 40 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5161X45 | 5 | jet black RAL 9005 | satin finish | M16 | 45 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5161X50 | 5 | jet black RAL 9005 | satin finish | M16 | 50 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5161X55 | 5 | jet black RAL 9005 | satin finish | M16 | 55 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5161X60 | 5 | jet black RAL 9005 | satin finish | M16 | 60 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 25.79 € | | | B0244.5161X70 | 5 | jet black RAL 9005 | satin finish | M16 | 70 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 27.08 € | | | B0244.5161X80 | 5 | jet black RAL 9005 | satin finish | M16 | 80 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 27.08 € | | | B0244.5161X90 | 5 | jet black RAL 9005 | satin finish | M16 | 90 | 23 | 31 | 32 | 15 | 110 | 126 | 49 | 12 | 31,5 | 73 | 77,5 | 26 | | | 27.08 € | |
