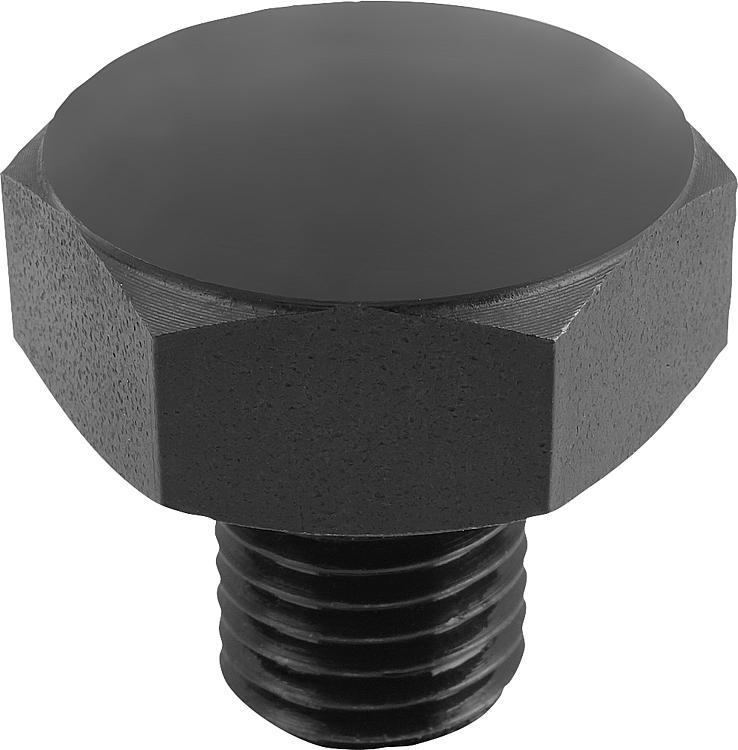

B0183Positioning feet with external thread and convex face, Form B |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | B | G | H | E | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0183.208 | B | 8 | M6 | 8 | 14,4 | 13 | 8,5 |  | | 8.88 € | | | B0183.2104 | B | 10 | M6 | 10 | 14,4 | 13 | 8,5 | | | 9.41 € | | | B0183.2081 | B | 10 | M8 | 8 | 19,4 | 17 | 18 | | | 9.93 € | | | B0183.2101 | B | 10 | M8 | 10 | 19,4 | 17 | 18 | | | 10.74 € | | | B0183.2103 | B | 12 | M10 | 10 | 21,9 | 19 | 32 | | | 11.47 € | | | B0183.2152 | B | 12 | M10 | 15 | 21,9 | 19 | 32 | | | 11.47 € | | | B0183.210 | B | 14 | M12 | 10 | 25,2 | 22 | 60 | | | 12.34 € | | | B0183.215 | B | 14 | M12 | 15 | 25,2 | 22 | 60 | | | 12.61 € | | | B0183.2151 | B | 19 | M16 | 15 | 33 | 30 | 140 | | | 25.06 € | | | B0183.2201 | B | 19 | M16 | 20 | 33 | 30 | 140 | | | 25.70 € | |
