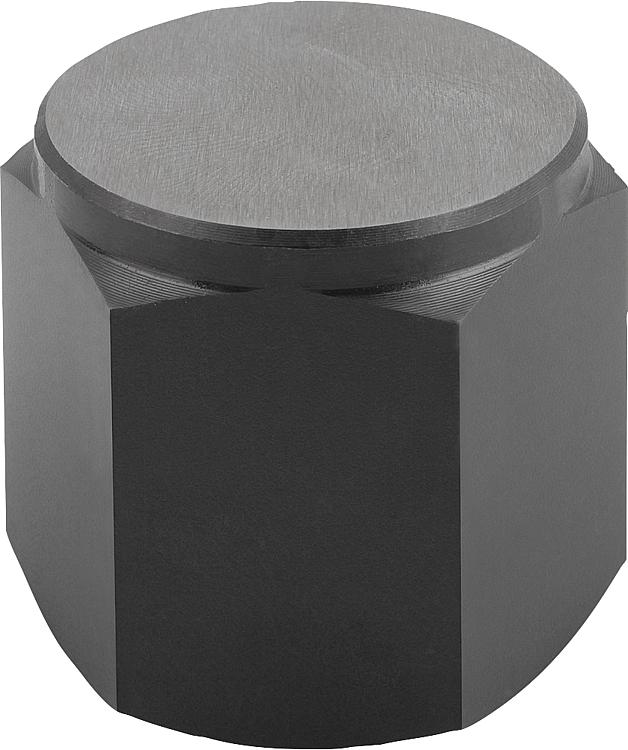

B0183Positioning feet with internal thread and flat face, From D |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | D1 | G | H | T | E | SW | CAD | Acc. | Price | Order |
|---|
| B0183.410 | D | 13 | M6 | 10 | 6 | 14,4 | 13 |  | | 9.06 € | | | B0183.4151 | D | 13 | M6 | 15 | 10 | 14,4 | 13 | | | 9.59 € | | | B0183.4101 | D | 17 | M8 | 10 | 6 | 19,4 | 17 | | | 10.10 € | | | B0183.415 | D | 17 | M8 | 15 | 6 | 19,4 | 17 | | | 10.95 € | | | B0183.4251 | D | 17 | M8 | 25 | 16 | 19,4 | 17 | | | 12.23 € | | | B0183.4201 | D | 19 | M10 | 20 | 10 | 21,9 | 19 | | | 11.47 € | | | B0183.4401 | D | 19 | M10 | 40 | 15 | 21,9 | 19 | | | 12.77 € | | | B0183.420 | D | 22 | M12 | 20 | 10 | 25,2 | 22 | | | 11.64 € | | | B0183.425 | D | 22 | M12 | 25 | 15 | 25,2 | 22 | | | 11.95 € | | | B0183.430 | D | 22 | M12 | 30 | 20 | 25,2 | 22 | | | 12.23 € | | | B0183.440 | D | 22 | M12 | 40 | 25 | 25,2 | 22 | | | 12.86 € | | | B0183.450 | D | 22 | M12 | 50 | 25 | 25,2 | 22 | | | 13.36 € | | | B0183.4301 | D | 30 | M16 | 30 | 20 | 33 | 30 | | | 30.56 € | | | B0183.4501 | D | 30 | M16 | 50 | 25 | 33 | 30 | | | 33.60 € | |
