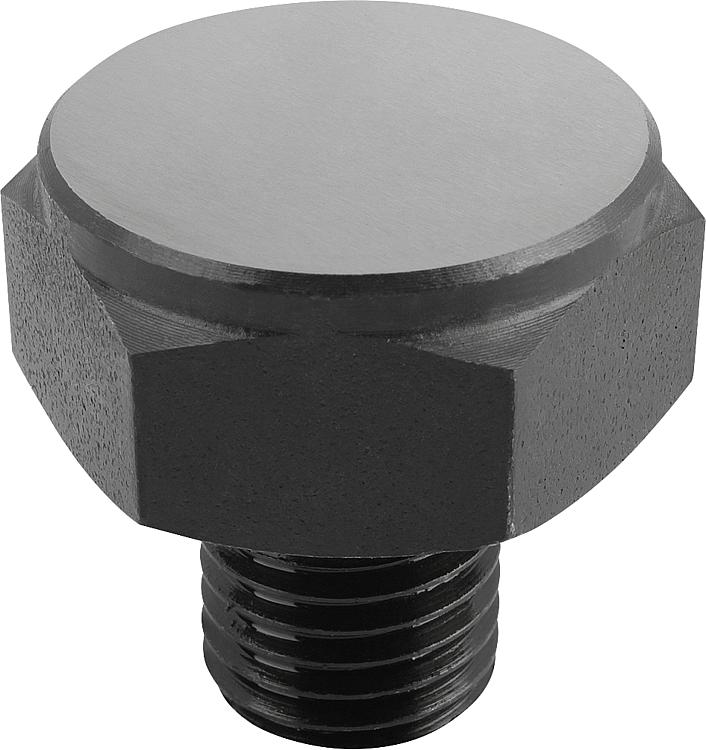

B0183Positioning feet with external thread and flat face, Form A |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | B | D1 | G | H | E | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0183.108 | A | 8 | 13 | M6 | 8 | 14,4 | 13 | 8,5 |  | | 10.66 € | | | B0183.1104 | A | 10 | 13 | M6 | 10 | 14,4 | 13 | 8,5 | | | 11.29 € | | | B0183.1081 | A | 10 | 17 | M8 | 8 | 19,4 | 17 | 18 | | | 11.92 € | | | B0183.1101 | A | 10 | 17 | M8 | 10 | 19,4 | 17 | 18 | | | 12.91 € | | | B0183.1103 | A | 12 | 19 | M10 | 10 | 21,9 | 19 | 32 | | | 13.29 € | | | B0183.1152 | A | 12 | 19 | M10 | 15 | 21,9 | 19 | 32 | | | 13.29 € | | | B0183.110 | A | 14 | 22 | M12 | 10 | 25,2 | 22 | 60 | | | 14.41 € | | | B0183.115 | A | 14 | 22 | M12 | 15 | 25,2 | 22 | 60 | | | 14.41 € | | | B0183.1151 | A | 19 | 30 | M16 | 15 | 33 | 30 | 140 | | | 33.60 € | | | B0183.1201 | A | 19 | 30 | M16 | 20 | 33 | 30 | 140 | | | 34.36 € | |
