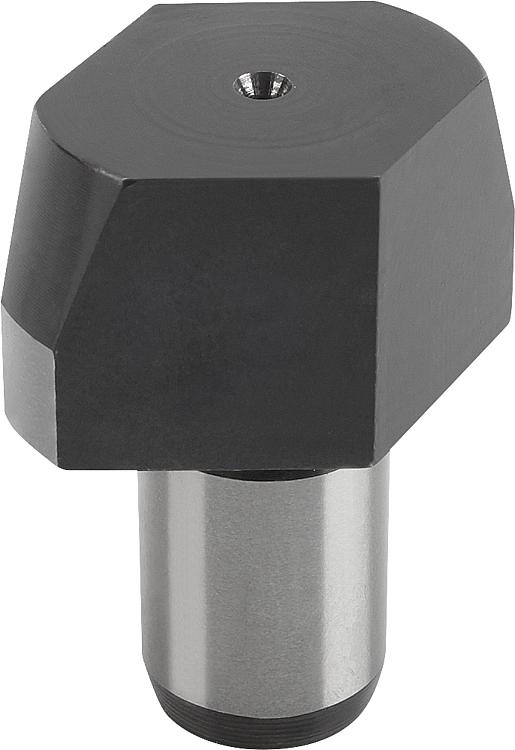

B0180Flattened locating pins, Form C |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Tool steel.Version:Hardened and ground.Note:The flattened Form C can be used to bridge tolerances in hole spacing or to secure the part to be positioned in one direction only.
For similar pins, see B0177 and B0178. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Version 1 | B | D1 | D2 | H | H1 | H2 | H3 | T | CAD | Acc. | Price | Order |
|---|
| B0180.406 | C | short | 1 | 6 | 4 | 7 | 6 | 1,2 | 4 | 0,02 |  | | 7.13 € | | | B0180.408 | C | short | 1,6 | 8 | 6 | 10 | 9 | 1,6 | 6 | 0,02 | | | 7.76 € | | | B0180.410 | C | short | 2,5 | 10 | 6 | 10 | 9 | 1,6 | 6 | 0,02 | | | 9.19 € | | | B0180.412 | C | short | 2,5 | 12 | 6 | 10 | 9 | 1,6 | 6 | 0,02 | | | 8.91 € | | | B0180.416 | C | short | 3,5 | 16 | 8 | 13 | 12 | 2 | 8 | 0,04 | | | 10.86 € | | | B0180.420 | C | short | 5 | 20 | 12 | 15 | 18 | 2 | 9 | 0,04 | | | 15.79 € | | | B0180.425 | C | short | 5 | 25 | 12 | 15 | 18 | 2,5 | 9 | 0,04 | | | 16.18 € | | | B0180.506 | C | long | 1 | 6 | 4 | 12 | 6 | 1,2 | 4 | 0,02 | | | 7.25 € | | | B0180.508 | C | long | 1,6 | 8 | 6 | 16 | 9 | 1,6 | 6 | 0,02 | | | 7.90 € | | | B0180.510 | C | long | 2,5 | 10 | 6 | 18 | 9 | 1,6 | 6 | 0,02 | | | 9.31 € | | | B0180.512 | C | long | 2,5 | 12 | 6 | 18 | 9 | 1,6 | 6 | 0,02 | | | 9.99 € | | | B0180.516 | C | long | 3,5 | 16 | 8 | 22 | 12 | 2 | 8 | 0,04 | | | 13.48 € | | | B0180.520 | C | long | 5 | 20 | 12 | 25 | 18 | 2 | 9 | 0,04 | | | 16.34 € | | | B0180.525 | C | long | 5 | 25 | 12 | 25 | 18 | 2,5 | 9 | 0,04 | | | 18.36 € | |
