B0115C-washers DIN 6372 enhanced |
go back |
|
Item description/product images |
|
|

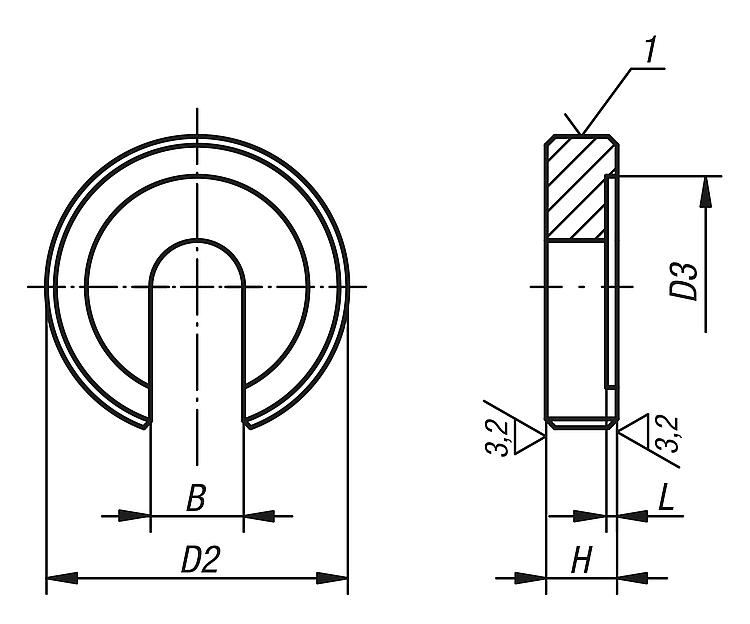

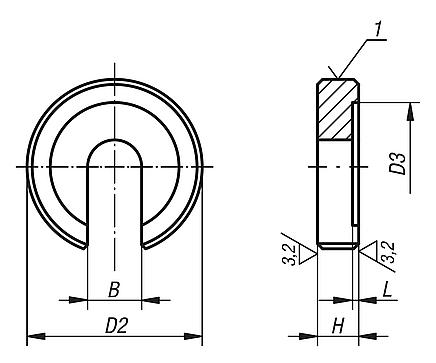

DescriptionMaterial:Carbon steel.Version:Tempered and black oxidised.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| B | D2 | D3 | H | L | CAD | Acc. | Price | Order |
|---|
| B0115.05 | 5,25 | 17 | 12 | 5 | 0,75 |  | | 3.99 € | | | B0115.06 | 6,4 | 22 | 16 | 6 | 0,8 | | | 5.03 € | | | B0115.08 | 8,4 | 28 | 21 | 7 | 1 | | | 6.49 € | | | B0115.10 | 10,5 | 34 | 25 | 8 | 1,2 | | | 7.55 € | | | B0115.12 | 13 | 40 | 30 | 9 | 1,8 | | | 8.40 € | | | B0115.14 | 14,5 | 48 | 33 | 12 | 1,8 | | | 8.66 € | | | B0115.16 | 17 | 56 | 37 | 12 | 1,8 | | | 11.95 € | | | B0115.20 | 21 | 64 | 45 | 14 | 2 | | | 20.53 € | | | B0115.24 | 25 | 75 | 52 | 16 | 2 | | | 21.61 € | | | B0115.30 | 31 | 90 | 65 | 18 | 2 | | | 34.94 € | | | B0115.36 | 37 | 100 | 75 | 20 | 2,5 | | | 40.91 € | |
