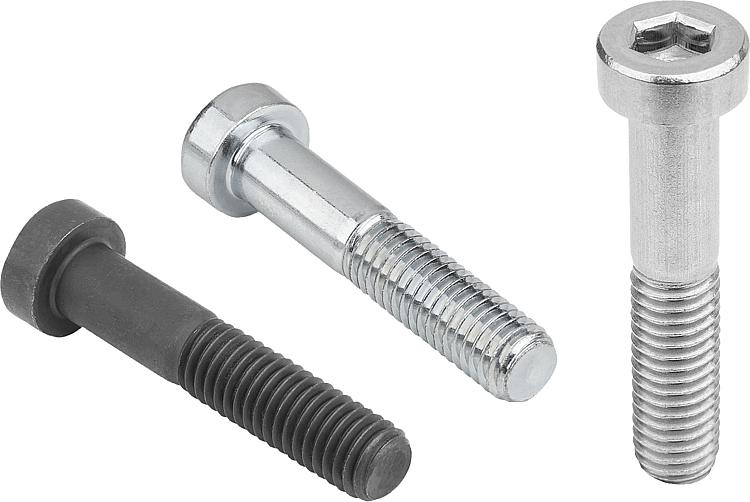

B0127Socket head screws with low head DIN 6912 |
go back |
|
|
DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 8.8, bright (black) or electro zinc-plated.
Steel grade 10.9, bright (black) or electro zinc-plated.
Stainless steel A2-70, bright.
Stainless steel A4-70, bright. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

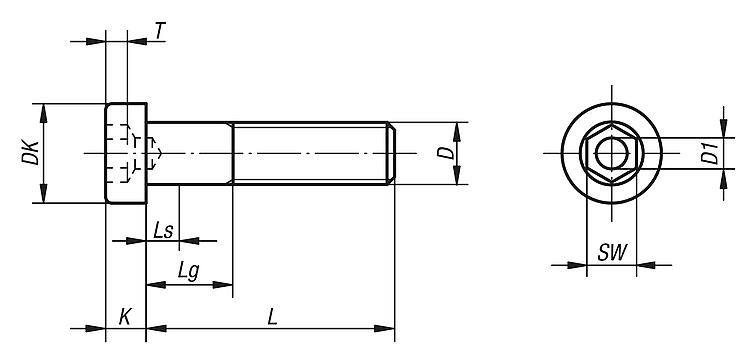

Drawings (total overview) |
| Order No. | Main
material | Grade | Surface finish
body | D | L | DK | K | Ls
min. | Lg
max. | D1 | SW | T | CAD | Acc. | Price | Order |
|---|
| B0127.04X10 | steel | 8.8 | bright (black) | M4 | 10 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 |  | | 0.36 € | | | B0127.04X12 | steel | 8.8 | bright (black) | M4 | 12 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.36 € | | | B0127.04X16 | steel | 8.8 | bright (black) | M4 | 16 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.36 € | | | B0127.04X20 | steel | 8.8 | bright (black) | M4 | 20 | 7 | 2,8 | 2,5 | 6 | 2 | 3 | 1,48 | | | 0.40 € | | | B0127.04X25 | steel | 8.8 | bright (black) | M4 | 25 | 7 | 2,8 | 7,5 | 11 | 2 | 3 | 1,48 | | | 0.45 € | | | B0127.05X10 | steel | 8.8 | bright (black) | M5 | 10 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.40 € | | | B0127.05X12 | steel | 8.8 | bright (black) | M5 | 12 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.40 € | | | B0127.05X16 | steel | 8.8 | bright (black) | M5 | 16 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.40 € | | | B0127.05X20 | steel | 8.8 | bright (black) | M5 | 20 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.40 € | | | B0127.05X25 | steel | 8.8 | bright (black) | M5 | 25 | 8,5 | 3,5 | 5 | 9 | 2,5 | 4 | 1,88 | | | 0.45 € | | | B0127.05X30 | steel | 8.8 | bright (black) | M5 | 30 | 8,5 | 3,5 | 10 | 14 | 2,5 | 4 | 1,88 | | | 0.50 € | | | B0127.06X10 | steel | 8.8 | bright (black) | M6 | 10 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.48 € | | | B0127.06X12 | steel | 8.8 | bright (black) | M6 | 12 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.48 € | | | B0127.06X16 | steel | 8.8 | bright (black) | M6 | 16 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.48 € | | | B0127.06X20 | steel | 8.8 | bright (black) | M6 | 20 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.50 € | | | B0127.06X25 | steel | 8.8 | bright (black) | M6 | 25 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.50 € | | | B0127.06X30 | steel | 8.8 | bright (black) | M6 | 30 | 10 | 4 | 7 | 12 | 3 | 5 | 2,38 | | | 0.50 € | | | B0127.06X35 | steel | 8.8 | bright (black) | M6 | 35 | 10 | 4 | 12 | 17 | 3 | 5 | 2,38 | | | 0.53 € | | | B0127.06X40 | steel | 8.8 | bright (black) | M6 | 40 | 10 | 4 | 17 | 22 | 3 | 5 | 2,38 | | | 0.60 € | | | B0127.06X45 | steel | 8.8 | bright (black) | M6 | 45 | 10 | 4 | 22 | 27 | 3 | 5 | 2,38 | | | 0.62 € | | | B0127.06X50 | steel | 8.8 | bright (black) | M6 | 50 | 10 | 4 | 27 | 32 | 3 | 5 | 2,38 | | | 0.65 € | | | B0127.06X60 | steel | 8.8 | bright (black) | M6 | 60 | 10 | 4 | 37 | 42 | 3 | 5 | 2,38 | | | 0.79 € | | | B0127.08X10 | steel | 8.8 | bright (black) | M8 | 10 | 13 | 5 | 0 | 6,25 | 4 | 6 | 2,88 | | | 0.61 € | | | B0127.08X12 | steel | 8.8 | bright (black) | M8 | 12 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.61 € | | | B0127.08X16 | steel | 8.8 | bright (black) | M8 | 16 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.61 € | | | B0127.08X20 | steel | 8.8 | bright (black) | M8 | 20 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.61 € | | | B0127.08X25 | steel | 8.8 | bright (black) | M8 | 25 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.65 € | | | B0127.08X30 | steel | 8.8 | bright (black) | M8 | 30 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.70 € | | | B0127.08X35 | steel | 8.8 | bright (black) | M8 | 35 | 13 | 5 | 6,75 | 13 | 4 | 6 | 2,88 | | | 0.73 € | | | B0127.08X40 | steel | 8.8 | bright (black) | M8 | 40 | 13 | 5 | 11,75 | 18 | 4 | 6 | 2,88 | | | 0.75 € | | | B0127.08X45 | steel | 8.8 | bright (black) | M8 | 45 | 13 | 5 | 16,75 | 23 | 4 | 6 | 2,88 | | | 0.83 € | | | B0127.08X50 | steel | 8.8 | bright (black) | M8 | 50 | 13 | 5 | 21,75 | 28 | 4 | 6 | 2,88 | | | 0.83 € | | | B0127.08X60 | steel | 8.8 | bright (black) | M8 | 60 | 13 | 5 | 31,75 | 38 | 4 | 6 | 2,88 | | | 0.90 € | | | B0127.08X70 | steel | 8.8 | bright (black) | M8 | 70 | 13 | 5 | 41,75 | 48 | 4 | 6 | 2,88 | | | 0.90 € | | | B0127.08X80 | steel | 8.8 | bright (black) | M8 | 80 | 13 | 5 | 51,75 | 58 | 4 | 6 | 2,88 | | | 1.30 € | | | B0127.10X20 | steel | 8.8 | bright (black) | M10 | 20 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.83 € | | | B0127.10X25 | steel | 8.8 | bright (black) | M10 | 25 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.83 € | | | B0127.10X30 | steel | 8.8 | bright (black) | M10 | 30 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.83 € | | | B0127.10X35 | steel | 8.8 | bright (black) | M10 | 35 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.90 € | | | B0127.10X40 | steel | 8.8 | bright (black) | M10 | 40 | 16 | 6,5 | 6,5 | 14 | 5 | 8 | 3,35 | | | 0.90 € | | | B0127.10X45 | steel | 8.8 | bright (black) | M10 | 45 | 16 | 6,5 | 11,5 | 19 | 5 | 8 | 3,35 | | | 0.90 € | | | B0127.10X50 | steel | 8.8 | bright (black) | M10 | 50 | 16 | 6,5 | 16,5 | 24 | 5 | 8 | 3,35 | | | 0.90 € | | | B0127.10X60 | steel | 8.8 | bright (black) | M10 | 60 | 16 | 6,5 | 26,5 | 34 | 5 | 8 | 3,35 | | | 1.06 € | | | B0127.10X70 | steel | 8.8 | bright (black) | M10 | 70 | 16 | 6,5 | 36,5 | 44 | 5 | 8 | 3,35 | | | 1.32 € | | | B0127.10X80 | steel | 8.8 | bright (black) | M10 | 80 | 16 | 6,5 | 46,5 | 54 | 5 | 8 | 3,35 | | | 1.49 € | | | B0127.10X90 | steel | 8.8 | bright (black) | M10 | 90 | 16 | 6,5 | 56,5 | 64 | 5 | 8 | 3,35 | | | 1.65 € | | | B0127.10X100 | steel | 8.8 | bright (black) | M10 | 100 | 16 | 6,5 | 66,5 | 65 | 5 | 8 | 3,35 | | | 2.34 € | | | B0127.12X20 | steel | 8.8 | bright (black) | M12 | 20 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 0.99 € | | | B0127.12X25 | steel | 8.8 | bright (black) | M12 | 25 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 0.99 € | | | B0127.12X30 | steel | 8.8 | bright (black) | M12 | 30 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 0.99 € | | | B0127.12X35 | steel | 8.8 | bright (black) | M12 | 35 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.06 € | | | B0127.12X40 | steel | 8.8 | bright (black) | M12 | 40 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.16 € | | | B0127.12X45 | steel | 8.8 | bright (black) | M12 | 45 | 18 | 7,5 | 6,5 | 15 | 6 | 10 | 3,85 | | | 1.30 € | | | B0127.12X50 | steel | 8.8 | bright (black) | M12 | 50 | 18 | 7,5 | 11,5 | 20 | 6 | 10 | 3,85 | | | 1.32 € | | | B0127.12X60 | steel | 8.8 | bright (black) | M12 | 60 | 18 | 7,5 | 21,5 | 30 | 6 | 10 | 3,85 | | | 1.59 € | | | B0127.12X70 | steel | 8.8 | bright (black) | M12 | 70 | 18 | 7,5 | 31,5 | 40 | 6 | 10 | 3,85 | | | 1.82 € | | | B0127.12X80 | steel | 8.8 | bright (black) | M12 | 80 | 18 | 7,5 | 41,5 | 50 | 6 | 10 | 3,85 | | | 2.07 € | | | B0127.12X90 | steel | 8.8 | bright (black) | M12 | 90 | 18 | 7,5 | 51,5 | 60 | 6 | 10 | 3,85 | | | 2.30 € | | | B0127.12X100 | steel | 8.8 | bright (black) | M12 | 100 | 18 | 7,5 | 61,5 | 70 | 6 | 10 | 3,85 | | | 2.54 € | | | B0127.12X110 | steel | 8.8 | bright (black) | M12 | 110 | 18 | 7,5 | 71,5 | 80 | 6 | 10 | 3,85 | | | 3.34 € | | | B0127.12X120 | steel | 8.8 | bright (black) | M12 | 120 | 18 | 7,5 | 81,5 | 90 | 6 | 10 | 3,85 | | | 3.78 € | | | B0127.16X30 | steel | 8.8 | bright (black) | M16 | 30 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.19 € | | | B0127.16X35 | steel | 8.8 | bright (black) | M16 | 35 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.27 € | | | B0127.16X40 | steel | 8.8 | bright (black) | M16 | 40 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.39 € | | | B0127.16X45 | steel | 8.8 | bright (black) | M16 | 45 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.47 € | | | B0127.16X50 | steel | 8.8 | bright (black) | M16 | 50 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.62 € | | | B0127.16X60 | steel | 8.8 | bright (black) | M16 | 60 | 24 | 10 | 12 | 22 | 8 | 14 | 5,35 | | | 3.12 € | | | B0127.16X70 | steel | 8.8 | bright (black) | M16 | 70 | 24 | 10 | 22 | 32 | 8 | 14 | 5,35 | | | 3.40 € | | | B0127.16X80 | steel | 8.8 | bright (black) | M16 | 80 | 24 | 10 | 32 | 42 | 8 | 14 | 5,35 | | | 4.01 € | | | B0127.16X90 | steel | 8.8 | bright (black) | M16 | 90 | 24 | 10 | 42 | 52 | 8 | 14 | 5,35 | | | 4.26 € | | | B0127.16X100 | steel | 8.8 | bright (black) | M16 | 100 | 24 | 10 | 52 | 62 | 8 | 14 | 5,35 | | | 4.43 € | | | B0127.16X110 | steel | 8.8 | bright (black) | M16 | 110 | 24 | 10 | 62 | 72 | 8 | 14 | 5,35 | | | 5.26 € | | | B0127.16X120 | steel | 8.8 | bright (black) | M16 | 120 | 24 | 10 | 72 | 82 | 8 | 14 | 5,35 | | | 5.74 € | | | B0127.20X40 | steel | 8.8 | bright (black) | M20 | 40 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 7.73 € | | | B0127.20X45 | steel | 8.8 | bright (black) | M20 | 45 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 7.83 € | | | B0127.20X50 | steel | 8.8 | bright (black) | M20 | 50 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 7.99 € | | | B0127.20X60 | steel | 8.8 | bright (black) | M20 | 60 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 8.19 € | | | B0127.20X70 | steel | 8.8 | bright (black) | M20 | 70 | 30 | 12 | 11,5 | 24 | 10 | 17 | 6,32 | | | 8.70 € | | | B0127.20X80 | steel | 8.8 | bright (black) | M20 | 80 | 30 | 12 | 21,5 | 34 | 10 | 17 | 6,32 | | | 9.30 € | | | B0127.20X90 | steel | 8.8 | bright (black) | M20 | 90 | 30 | 12 | 31,5 | 44 | 10 | 17 | 6,32 | | | 9.93 € | | | B0127.20X100 | steel | 8.8 | bright (black) | M20 | 100 | 30 | 12 | 41,5 | 54 | 10 | 17 | 6,32 | | | 10.61 € | | | B0127.20X110 | steel | 8.8 | bright (black) | M20 | 110 | 30 | 12 | 51,5 | 64 | 10 | 17 | 6,32 | | | 11.38 € | | | B0127.20X120 | steel | 8.8 | bright (black) | M20 | 120 | 30 | 12 | 61,5 | 74 | 10 | 17 | 6,32 | | | 12.71 € | | | B0127.404X10 | steel | 8.8 | galvanised | M4 | 10 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.38 € | | | B0127.404X12 | steel | 8.8 | galvanised | M4 | 12 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.38 € | | | B0127.404X16 | steel | 8.8 | galvanised | M4 | 16 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.38 € | | | B0127.404X20 | steel | 8.8 | galvanised | M4 | 20 | 7 | 2,8 | 2,5 | 6 | 2 | 3 | 1,48 | | | 0.41 € | | | B0127.404X25 | steel | 8.8 | galvanised | M4 | 25 | 7 | 2,8 | 7,5 | 11 | 2 | 3 | 1,48 | | | 0.48 € | | | B0127.405X10 | steel | 8.8 | galvanised | M5 | 10 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.41 € | | | B0127.405X12 | steel | 8.8 | galvanised | M5 | 12 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.41 € | | | B0127.405X16 | steel | 8.8 | galvanised | M5 | 16 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.41 € | | | B0127.405X20 | steel | 8.8 | galvanised | M5 | 20 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.41 € | | | B0127.405X25 | steel | 8.8 | galvanised | M5 | 25 | 8,5 | 3,5 | 5 | 9 | 2,5 | 4 | 1,88 | | | 0.48 € | | | B0127.405X30 | steel | 8.8 | galvanised | M5 | 30 | 8,5 | 3,5 | 10 | 14 | 2,5 | 4 | 1,88 | | | 0.53 € | | | B0127.406X10 | steel | 8.8 | galvanised | M6 | 10 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.49 € | | | B0127.406X12 | steel | 8.8 | galvanised | M6 | 12 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.49 € | | | B0127.406X16 | steel | 8.8 | galvanised | M6 | 16 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.49 € | | | B0127.406X20 | steel | 8.8 | galvanised | M6 | 20 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.53 € | | | B0127.406X25 | steel | 8.8 | galvanised | M6 | 25 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.53 € | | | B0127.406X30 | steel | 8.8 | galvanised | M6 | 30 | 10 | 4 | 7 | 12 | 3 | 5 | 2,38 | | | 0.53 € | | | B0127.406X35 | steel | 8.8 | galvanised | M6 | 35 | 10 | 4 | 12 | 17 | 3 | 5 | 2,38 | | | 0.54 € | | | B0127.406X40 | steel | 8.8 | galvanised | M6 | 40 | 10 | 4 | 17 | 22 | 3 | 5 | 2,38 | | | 0.61 € | | | B0127.406X45 | steel | 8.8 | galvanised | M6 | 45 | 10 | 4 | 22 | 27 | 3 | 5 | 2,38 | | | 0.64 € | | | B0127.406X50 | steel | 8.8 | galvanised | M6 | 50 | 10 | 4 | 27 | 32 | 3 | 5 | 2,38 | | | 0.67 € | | | B0127.406X60 | steel | 8.8 | galvanised | M6 | 60 | 10 | 4 | 37 | 42 | 3 | 5 | 2,38 | | | 0.80 € | | | B0127.408X10 | steel | 8.8 | galvanised | M8 | 10 | 13 | 5 | 0 | 6,25 | 4 | 6 | 2,88 | | | 0.62 € | | | B0127.408X12 | steel | 8.8 | galvanised | M8 | 12 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.62 € | | | B0127.408X16 | steel | 8.8 | galvanised | M8 | 16 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.62 € | | | B0127.408X20 | steel | 8.8 | galvanised | M8 | 20 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.62 € | | | B0127.408X25 | steel | 8.8 | galvanised | M8 | 25 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.67 € | | | B0127.408X30 | steel | 8.8 | galvanised | M8 | 30 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.71 € | | | B0127.408X35 | steel | 8.8 | galvanised | M8 | 35 | 13 | 5 | 6,75 | 13 | 4 | 6 | 2,88 | | | 0.74 € | | | B0127.408X40 | steel | 8.8 | galvanised | M8 | 40 | 13 | 5 | 11,75 | 18 | 4 | 6 | 2,88 | | | 0.76 € | | | B0127.408X45 | steel | 8.8 | galvanised | M8 | 45 | 13 | 5 | 16,75 | 23 | 4 | 6 | 2,88 | | | 0.84 € | | | B0127.408X50 | steel | 8.8 | galvanised | M8 | 50 | 13 | 5 | 21,75 | 28 | 4 | 6 | 2,88 | | | 0.84 € | | | B0127.408X60 | steel | 8.8 | galvanised | M8 | 60 | 13 | 5 | 31,75 | 38 | 4 | 6 | 2,88 | | | 0.91 € | | | B0127.408X70 | steel | 8.8 | galvanised | M8 | 70 | 13 | 5 | 41,75 | 48 | 4 | 6 | 2,88 | | | 0.92 € | | | B0127.408X80 | steel | 8.8 | galvanised | M8 | 80 | 13 | 5 | 51,75 | 58 | 4 | 6 | 2,88 | | | 1.32 € | | | B0127.410X20 | steel | 8.8 | galvanised | M10 | 20 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.85 € | | | B0127.410X25 | steel | 8.8 | galvanised | M10 | 25 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.85 € | | | B0127.410X30 | steel | 8.8 | galvanised | M10 | 30 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.85 € | | | B0127.410X35 | steel | 8.8 | galvanised | M10 | 35 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.92 € | | | B0127.410X40 | steel | 8.8 | galvanised | M10 | 40 | 16 | 6,5 | 6,5 | 14 | 5 | 8 | 3,35 | | | 0.92 € | | | B0127.410X45 | steel | 8.8 | galvanised | M10 | 45 | 16 | 6,5 | 11,5 | 19 | 5 | 8 | 3,35 | | | 0.92 € | | | B0127.410X50 | steel | 8.8 | galvanised | M10 | 50 | 16 | 6,5 | 16,5 | 24 | 5 | 8 | 3,35 | | | 0.92 € | | | B0127.410X60 | steel | 8.8 | galvanised | M10 | 60 | 16 | 6,5 | 26,5 | 34 | 5 | 8 | 3,35 | | | 1.08 € | | | B0127.410X70 | steel | 8.8 | galvanised | M10 | 70 | 16 | 6,5 | 36,5 | 44 | 5 | 8 | 3,35 | | | 1.35 € | | | B0127.410X80 | steel | 8.8 | galvanised | M10 | 80 | 16 | 6,5 | 46,5 | 54 | 5 | 8 | 3,35 | | | 1.52 € | | | B0127.410X90 | steel | 8.8 | galvanised | M10 | 90 | 16 | 6,5 | 56,5 | 64 | 5 | 8 | 3,35 | | | 1.68 € | | | B0127.410X100 | steel | 8.8 | galvanised | M10 | 100 | 16 | 6,5 | 66,5 | 74 | 5 | 8 | 3,35 | | | 2.39 € | | | B0127.412X20 | steel | 8.8 | galvanised | M12 | 20 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.01 € | | | B0127.412X25 | steel | 8.8 | galvanised | M12 | 25 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.01 € | | | B0127.412X30 | steel | 8.8 | galvanised | M12 | 30 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.01 € | | | B0127.412X35 | steel | 8.8 | galvanised | M12 | 35 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.08 € | | | B0127.412X40 | steel | 8.8 | galvanised | M12 | 40 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.18 € | | | B0127.412X45 | steel | 8.8 | galvanised | M12 | 45 | 18 | 7,5 | 6,5 | 15 | 6 | 10 | 3,85 | | | 1.32 € | | | B0127.412X50 | steel | 8.8 | galvanised | M12 | 50 | 18 | 7,5 | 11,5 | 20 | 6 | 10 | 3,85 | | | 1.34 € | | | B0127.412X60 | steel | 8.8 | galvanised | M12 | 60 | 18 | 7,5 | 21,5 | 30 | 6 | 10 | 3,85 | | | 1.61 € | | | B0127.412X70 | steel | 8.8 | galvanised | M12 | 70 | 18 | 7,5 | 31,5 | 40 | 6 | 10 | 3,85 | | | 1.86 € | | | B0127.412X80 | steel | 8.8 | galvanised | M12 | 80 | 18 | 7,5 | 41,5 | 50 | 6 | 10 | 3,85 | | | 2.10 € | | | B0127.412X90 | steel | 8.8 | galvanised | M12 | 90 | 18 | 7,5 | 51,5 | 60 | 6 | 10 | 3,85 | | | 2.34 € | | | B0127.412X100 | steel | 8.8 | galvanised | M12 | 100 | 18 | 7,5 | 61,5 | 70 | 6 | 10 | 3,85 | | | 2.59 € | | | B0127.412X110 | steel | 8.8 | galvanised | M12 | 110 | 18 | 7,5 | 71,5 | 80 | 6 | 10 | 3,85 | | | 3.37 € | | | B0127.412X120 | steel | 8.8 | galvanised | M12 | 120 | 18 | 7,5 | 81,5 | 90 | 6 | 10 | 3,85 | | | 3.81 € | | | B0127.416X30 | steel | 8.8 | galvanised | M16 | 30 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.22 € | | | B0127.416X35 | steel | 8.8 | galvanised | M16 | 35 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.31 € | | | B0127.416X40 | steel | 8.8 | galvanised | M16 | 40 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.42 € | | | B0127.416X45 | steel | 8.8 | galvanised | M16 | 45 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.51 € | | | B0127.416X50 | steel | 8.8 | galvanised | M16 | 50 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.65 € | | | B0127.416X60 | steel | 8.8 | galvanised | M16 | 60 | 24 | 10 | 12 | 22 | 8 | 14 | 5,35 | | | 3.15 € | | | B0127.416X70 | steel | 8.8 | galvanised | M16 | 70 | 24 | 10 | 22 | 32 | 8 | 14 | 5,35 | | | 3.44 € | | | B0127.416X80 | steel | 8.8 | galvanised | M16 | 80 | 24 | 10 | 32 | 42 | 8 | 14 | 5,35 | | | 4.07 € | | | B0127.416X90 | steel | 8.8 | galvanised | M16 | 90 | 24 | 10 | 42 | 52 | 8 | 14 | 5,35 | | | 4.32 € | | | B0127.416X100 | steel | 8.8 | galvanised | M16 | 100 | 24 | 10 | 52 | 62 | 8 | 14 | 5,35 | | | 4.48 € | | | B0127.416X110 | steel | 8.8 | galvanised | M16 | 110 | 24 | 10 | 62 | 72 | 8 | 14 | 5,35 | | | 5.31 € | | | B0127.416X120 | steel | 8.8 | galvanised | M16 | 120 | 24 | 10 | 72 | 82 | 8 | 14 | 5,35 | | | 5.78 € | | | B0127.420X40 | steel | 8.8 | galvanised | M20 | 40 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 7.77 € | | | B0127.420X45 | steel | 8.8 | galvanised | M20 | 45 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 7.86 € | | | B0127.420X50 | steel | 8.8 | galvanised | M20 | 50 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 8.04 € | | | B0127.420X60 | steel | 8.8 | galvanised | M20 | 60 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 8.22 € | | | B0127.420X70 | steel | 8.8 | galvanised | M20 | 70 | 30 | 12 | 11,5 | 24 | 10 | 17 | 6,32 | | | 8.74 € | | | B0127.420X80 | steel | 8.8 | galvanised | M20 | 80 | 30 | 12 | 21,5 | 34 | 10 | 17 | 6,32 | | | 9.34 € | | | B0127.420X90 | steel | 8.8 | galvanised | M20 | 90 | 30 | 12 | 31,5 | 44 | 10 | 17 | 6,32 | | | 9.99 € | | | B0127.420X100 | steel | 8.8 | galvanised | M20 | 100 | 30 | 12 | 41,5 | 54 | 10 | 17 | 6,32 | | | 10.65 € | | | B0127.420X110 | steel | 8.8 | galvanised | M20 | 110 | 30 | 12 | 51,5 | 64 | 10 | 17 | 6,32 | | | 11.44 € | | | B0127.420X120 | steel | 8.8 | galvanised | M20 | 120 | 30 | 12 | 61,5 | 74 | 10 | 17 | 6,32 | | | 12.76 € | | | B0127.306X10 | steel | 10.9 | bright (black) | M6 | 10 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.67 € | | | B0127.306X12 | steel | 10.9 | bright (black) | M6 | 12 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.67 € | | | B0127.306X16 | steel | 10.9 | bright (black) | M6 | 16 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.67 € | | | B0127.306X20 | steel | 10.9 | bright (black) | M6 | 20 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.71 € | | | B0127.306X25 | steel | 10.9 | bright (black) | M6 | 25 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.71 € | | | B0127.306X30 | steel | 10.9 | bright (black) | M6 | 30 | 10 | 4 | 7 | 12 | 3 | 5 | 2,38 | | | 0.71 € | | | B0127.306X35 | steel | 10.9 | bright (black) | M6 | 35 | 10 | 4 | 12 | 17 | 3 | 5 | 2,38 | | | 0.72 € | | | B0127.306X40 | steel | 10.9 | bright (black) | M6 | 40 | 10 | 4 | 17 | 22 | 3 | 5 | 2,38 | | | 0.85 € | | | B0127.308X16 | steel | 10.9 | bright (black) | M8 | 16 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.88 € | | | B0127.308X20 | steel | 10.9 | bright (black) | M8 | 20 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.88 € | | | B0127.308X30 | steel | 10.9 | bright (black) | M8 | 30 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.97 € | | | B0127.308X35 | steel | 10.9 | bright (black) | M8 | 35 | 13 | 5 | 6,75 | 13 | 4 | 6 | 2,88 | | | 1.01 € | | | B0127.308X40 | steel | 10.9 | bright (black) | M8 | 40 | 13 | 5 | 11,75 | 18 | 4 | 6 | 2,88 | | | 1.04 € | | | B0127.308X45 | steel | 10.9 | bright (black) | M8 | 45 | 13 | 5 | 16,75 | 23 | 4 | 6 | 2,88 | | | 1.16 € | | | B0127.308X50 | steel | 10.9 | bright (black) | M8 | 50 | 13 | 5 | 21,75 | 28 | 4 | 6 | 2,88 | | | 1.16 € | | | B0127.308X60 | steel | 10.9 | bright (black) | M8 | 60 | 13 | 5 | 31,75 | 38 | 4 | 6 | 2,88 | | | 1.26 € | | | B0127.310X20 | steel | 10.9 | bright (black) | M10 | 20 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 1.16 € | | | B0127.310X25 | steel | 10.9 | bright (black) | M10 | 25 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 1.16 € | | | B0127.310X35 | steel | 10.9 | bright (black) | M10 | 35 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 1.26 € | | | B0127.310X40 | steel | 10.9 | bright (black) | M10 | 40 | 16 | 6,5 | 6,5 | 14 | 5 | 8 | 3,35 | | | 1.26 € | | | B0127.310X45 | steel | 10.9 | bright (black) | M10 | 45 | 16 | 6,5 | 11,5 | 19 | 5 | 8 | 3,35 | | | 1.26 € | | | B0127.310X50 | steel | 10.9 | bright (black) | M10 | 50 | 16 | 6,5 | 16,5 | 24 | 5 | 8 | 3,35 | | | 1.26 € | | | B0127.310X60 | steel | 10.9 | bright (black) | M10 | 60 | 16 | 6,5 | 26,5 | 34 | 5 | 8 | 3,35 | | | 1.50 € | | | B0127.312X25 | steel | 10.9 | bright (black) | M12 | 25 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.38 € | | | B0127.312X35 | steel | 10.9 | bright (black) | M12 | 35 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.50 € | | | B0127.312X45 | steel | 10.9 | bright (black) | M12 | 45 | 18 | 7,5 | 6,5 | 15 | 6 | 10 | 3,85 | | | 1.81 € | | | B0127.312X50 | steel | 10.9 | bright (black) | M12 | 50 | 18 | 7,5 | 11,5 | 20 | 6 | 10 | 3,85 | | | 1.85 € | | | B0127.312X60 | steel | 10.9 | bright (black) | M12 | 60 | 18 | 7,5 | 21,5 | 30 | 6 | 10 | 3,85 | | | 2.20 € | | | B0127.316X30 | steel | 10.9 | bright (black) | M16 | 30 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.08 € | | | B0127.316X35 | steel | 10.9 | bright (black) | M16 | 35 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.19 € | | | B0127.316X45 | steel | 10.9 | bright (black) | M16 | 45 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.45 € | | | B0127.316X40 | steel | 10.9 | bright (black) | M16 | 40 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.35 € | | | B0127.316X50 | steel | 10.9 | bright (black) | M16 | 50 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.68 € | | | B0127.316X60 | steel | 10.9 | bright (black) | M16 | 60 | 24 | 10 | 12 | 22 | 8 | 14 | 5,35 | | | 4.38 € | | | B0127.316X70 | steel | 10.9 | bright (black) | M16 | 70 | 24 | 10 | 22 | 32 | 8 | 14 | 5,35 | | | 4.75 € | | | B0127.316X80 | steel | 10.9 | bright (black) | M16 | 80 | 24 | 10 | 32 | 42 | 8 | 14 | 5,35 | | | 5.60 € | | | B0127.320X40 | steel | 10.9 | bright (black) | M20 | 40 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 10.84 € | | | B0127.320X50 | steel | 10.9 | bright (black) | M20 | 50 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 11.20 € | | | B0127.320X60 | steel | 10.9 | bright (black) | M20 | 60 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 11.47 € | | | B0127.320X70 | steel | 10.9 | bright (black) | M20 | 70 | 30 | 12 | 11,5 | 24 | 10 | 17 | 6,32 | | | 12.18 € | |
|
| Order No. | Main
material | Grade | Surface finish
body | D | L | DK | K | Ls
min. | Lg
max. | D1 | SW | T | CAD | Acc. | Price | Order |
|---|
| B0127.104X10 | stainless steel A2 | 70 | bright | M4 | 10 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.82 € | | | B0127.104X12 | stainless steel A2 | 70 | bright | M4 | 12 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.82 € | | | B0127.104X16 | stainless steel A2 | 70 | bright | M4 | 16 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.62 € | | | B0127.104X20 | stainless steel A2 | 70 | bright | M4 | 20 | 7 | 2,8 | 2,5 | 6 | 2 | 3 | 1,48 | | | 0.62 € | | | B0127.104X25 | stainless steel A2 | 70 | bright | M4 | 25 | 7 | 2,8 | 4,5 | 11 | 2 | 3 | 1,48 | | | 0.65 € | | | B0127.105X10 | stainless steel A2 | 70 | bright | M5 | 10 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.82 € | | | B0127.105X12 | stainless steel A2 | 70 | bright | M5 | 12 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.82 € | | | B0127.105X16 | stainless steel A2 | 70 | bright | M5 | 16 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.64 € | | | B0127.105X20 | stainless steel A2 | 70 | bright | M5 | 20 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.69 € | | | B0127.105X25 | stainless steel A2 | 70 | bright | M5 | 25 | 8,5 | 3,5 | 5 | 9 | 2,5 | 4 | 1,88 | | | 0.70 € | | | B0127.105X30 | stainless steel A2 | 70 | bright | M5 | 30 | 8,5 | 3,5 | 10 | 14 | 2,5 | 4 | 1,88 | | | 0.83 € | | | B0127.106X10 | stainless steel A2 | 70 | bright | M6 | 10 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.90 € | | | B0127.106X12 | stainless steel A2 | 70 | bright | M6 | 12 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.90 € | | | B0127.106X16 | stainless steel A2 | 70 | bright | M6 | 16 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.82 € | | | B0127.106X20 | stainless steel A2 | 70 | bright | M6 | 20 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.83 € | | | B0127.106X25 | stainless steel A2 | 70 | bright | M6 | 25 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.84 € | | | B0127.106X30 | stainless steel A2 | 70 | bright | M6 | 30 | 10 | 4 | 7 | 12 | 3 | 5 | 2,38 | | | 0.90 € | | | B0127.106X35 | stainless steel A2 | 70 | bright | M6 | 35 | 10 | 4 | 12 | 17 | 3 | 5 | 2,38 | | | 0.90 € | | | B0127.106X40 | stainless steel A2 | 70 | bright | M6 | 40 | 10 | 4 | 17 | 22 | 3 | 5 | 2,38 | | | 0.90 € | | | B0127.106X45 | stainless steel A2 | 70 | bright | M6 | 45 | 10 | 4 | 22 | 27 | 3 | 5 | 2,38 | | | 0.90 € | | | B0127.106X50 | stainless steel A2 | 70 | bright | M6 | 50 | 10 | 4 | 27 | 32 | 3 | 5 | 2,38 | | | 1.16 € | | | B0127.106X60 | stainless steel A2 | 70 | bright | M6 | 60 | 10 | 4 | 37 | 42 | 3 | 5 | 2,38 | | | 1.53 € | | | B0127.108X10 | stainless steel A2 | 70 | bright | M8 | 10 | 13 | 5 | 0 | 6,25 | 4 | 6 | 2,88 | | | 1.27 € | | | B0127.108X12 | stainless steel A2 | 70 | bright | M8 | 12 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 1.23 € | | | B0127.108X16 | stainless steel A2 | 70 | bright | M8 | 16 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 1.13 € | | | B0127.108X20 | stainless steel A2 | 70 | bright | M8 | 20 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.98 € | | | B0127.108X25 | stainless steel A2 | 70 | bright | M8 | 25 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.98 € | | | B0127.108X30 | stainless steel A2 | 70 | bright | M8 | 30 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.98 € | | | B0127.108X35 | stainless steel A2 | 70 | bright | M8 | 35 | 13 | 5 | 6,75 | 13 | 4 | 6 | 2,88 | | | 1.08 € | | | B0127.108X40 | stainless steel A2 | 70 | bright | M8 | 40 | 13 | 5 | 11,75 | 18 | 4 | 6 | 2,88 | | | 1.18 € | | | B0127.108X45 | stainless steel A2 | 70 | bright | M8 | 45 | 13 | 5 | 16,75 | 23 | 4 | 6 | 2,88 | | | 1.40 € | | | B0127.108X50 | stainless steel A2 | 70 | bright | M8 | 50 | 13 | 5 | 21,75 | 28 | 4 | 6 | 2,88 | | | 1.59 € | | | B0127.108X60 | stainless steel A2 | 70 | bright | M8 | 60 | 13 | 5 | 31,75 | 38 | 4 | 6 | 2,88 | | | 2.03 € | | | B0127.108X70 | stainless steel A2 | 70 | bright | M8 | 70 | 13 | 5 | 41,75 | 48 | 4 | 6 | 2,88 | | | 2.91 € | | | B0127.110X16 | stainless steel A2 | 70 | bright | M10 | 16 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 2.30 € | | | B0127.110X20 | stainless steel A2 | 70 | bright | M10 | 20 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 1.96 € | | | B0127.110X25 | stainless steel A2 | 70 | bright | M10 | 25 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 1.85 € | | | B0127.110X30 | stainless steel A2 | 70 | bright | M10 | 30 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 2.00 € | | | B0127.110X35 | stainless steel A2 | 70 | bright | M10 | 35 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 2.08 € | | | B0127.110X40 | stainless steel A2 | 70 | bright | M10 | 40 | 16 | 6,5 | 6,5 | 14 | 5 | 8 | 3,35 | | | 2.29 € | | | B0127.110X45 | stainless steel A2 | 70 | bright | M10 | 45 | 16 | 6,5 | 11,5 | 19 | 5 | 8 | 3,35 | | | 2.64 € | | | B0127.110X50 | stainless steel A2 | 70 | bright | M10 | 50 | 16 | 6,5 | 16,5 | 24 | 5 | 8 | 3,35 | | | 2.85 € | | | B0127.110X60 | stainless steel A2 | 70 | bright | M10 | 60 | 16 | 6,5 | 26,5 | 34 | 5 | 8 | 3,35 | | | 3.47 € | | | B0127.110X70 | stainless steel A2 | 70 | bright | M10 | 70 | 16 | 6,5 | 36,5 | 44 | 5 | 8 | 3,35 | | | 4.33 € | | | B0127.112X20 | stainless steel A2 | 70 | bright | M12 | 20 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 3.04 € | | | B0127.112X25 | stainless steel A2 | 70 | bright | M12 | 25 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 2.85 € | | | B0127.112X30 | stainless steel A2 | 70 | bright | M12 | 30 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 2.85 € | | | B0127.112X35 | stainless steel A2 | 70 | bright | M12 | 35 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 3.06 € | | | B0127.112X40 | stainless steel A2 | 70 | bright | M12 | 40 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 3.35 € | | | B0127.112X45 | stainless steel A2 | 70 | bright | M12 | 45 | 18 | 7,5 | 6,5 | 15 | 6 | 10 | 3,85 | | | 3.69 € | | | B0127.112X50 | stainless steel A2 | 70 | bright | M12 | 50 | 18 | 7,5 | 11,5 | 20 | 6 | 10 | 3,85 | | | 3.98 € | | | B0127.112X60 | stainless steel A2 | 70 | bright | M12 | 60 | 18 | 7,5 | 21,5 | 30 | 6 | 10 | 3,85 | | | 4.75 € | | | B0127.112X70 | stainless steel A2 | 70 | bright | M12 | 70 | 18 | 7,5 | 31,5 | 40 | 6 | 10 | 3,85 | | | 5.84 € | | | B0127.604X10 | stainless steel A4 | 70 | bright | M4 | 10 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 1.04 € | | | B0127.604X12 | stainless steel A4 | 70 | bright | M4 | 12 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 1.04 € | | | B0127.604X16 | stainless steel A4 | 70 | bright | M4 | 16 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.82 € | | | B0127.604X20 | stainless steel A4 | 70 | bright | M4 | 20 | 7 | 2,8 | 2,5 | 6 | 2 | 3 | 1,48 | | | 0.82 € | | | B0127.604X25 | stainless steel A4 | 70 | bright | M4 | 25 | 7 | 2,8 | 7,5 | 11 | 2 | 3 | 1,48 | | | 0.87 € | | | B0127.605X10 | stainless steel A4 | 70 | bright | M5 | 10 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 1.04 € | | | B0127.605X12 | stainless steel A4 | 70 | bright | M5 | 12 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 1.04 € | | | B0127.605X16 | stainless steel A4 | 70 | bright | M5 | 16 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.84 € | | | B0127.605X20 | stainless steel A4 | 70 | bright | M5 | 20 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.90 € | | | B0127.605X25 | stainless steel A4 | 70 | bright | M5 | 25 | 8,5 | 3,5 | 5 | 9 | 2,5 | 4 | 1,88 | | | 0.92 € | | | B0127.605X30 | stainless steel A4 | 70 | bright | M5 | 30 | 8,5 | 3,5 | 10 | 14 | 2,5 | 4 | 1,88 | | | 1.06 € | | | B0127.606X10 | stainless steel A4 | 70 | bright | M6 | 10 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 1.17 € | | | B0127.606X12 | stainless steel A4 | 70 | bright | M6 | 12 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 1.17 € | | | B0127.606X16 | stainless steel A4 | 70 | bright | M6 | 16 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 1.04 € | | | B0127.606X20 | stainless steel A4 | 70 | bright | M6 | 20 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 1.06 € | | | B0127.606X25 | stainless steel A4 | 70 | bright | M6 | 25 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 1.07 € | | | B0127.606X30 | stainless steel A4 | 70 | bright | M6 | 30 | 10 | 4 | 7 | 12 | 3 | 5 | 2,38 | | | 1.17 € | | | B0127.606X35 | stainless steel A4 | 70 | bright | M6 | 35 | 10 | 4 | 12 | 17 | 3 | 5 | 2,38 | | | 1.17 € | | | B0127.606X40 | stainless steel A4 | 70 | bright | M6 | 40 | 10 | 4 | 17 | 22 | 3 | 5 | 2,38 | | | 1.17 € | | | B0127.606X45 | stainless steel A4 | 70 | bright | M6 | 45 | 10 | 4 | 22 | 27 | 3 | 5 | 2,38 | | | 1.17 € | | | B0127.606X50 | stainless steel A4 | 70 | bright | M6 | 50 | 10 | 4 | 27 | 32 | 3 | 5 | 2,38 | | | 1.50 € | | | B0127.606X60 | stainless steel A4 | 70 | bright | M6 | 60 | 10 | 4 | 37 | 42 | 3 | 5 | 2,38 | | | 2.00 € | | | B0127.608X10 | stainless steel A4 | 70 | bright | M8 | 10 | 13 | 5 | 0 | 6,25 | 4 | 6 | 2,88 | | | 1.64 € | | | B0127.608X12 | stainless steel A4 | 70 | bright | M8 | 12 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 1.60 € | | | B0127.608X16 | stainless steel A4 | 70 | bright | M8 | 16 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 1.46 € | | | B0127.608X20 | stainless steel A4 | 70 | bright | M8 | 20 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 1.28 € | | | B0127.608X25 | stainless steel A4 | 70 | bright | M8 | 25 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 1.28 € | | | B0127.608X30 | stainless steel A4 | 70 | bright | M8 | 30 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 1.28 € | | | B0127.608X35 | stainless steel A4 | 70 | bright | M8 | 35 | 13 | 5 | 6,75 | 13 | 4 | 6 | 2,88 | | | 1.44 € | | | B0127.608X40 | stainless steel A4 | 70 | bright | M8 | 40 | 13 | 5 | 11,75 | 18 | 4 | 6 | 2,88 | | | 1.53 € | | | B0127.608X45 | stainless steel A4 | 70 | bright | M8 | 45 | 13 | 5 | 16,75 | 23 | 4 | 6 | 2,88 | | | 1.82 € | | | B0127.608X50 | stainless steel A4 | 70 | bright | M8 | 50 | 13 | 5 | 21,75 | 28 | 4 | 6 | 2,88 | | | 2.07 € | | | B0127.608X60 | stainless steel A4 | 70 | bright | M8 | 60 | 13 | 5 | 31,75 | 38 | 4 | 6 | 2,88 | | | 2.64 € | | | B0127.608X70 | stainless steel A4 | 70 | bright | M8 | 70 | 13 | 5 | 41,75 | 48 | 4 | 6 | 2,88 | | | 3.80 € | | | B0127.610X16 | stainless steel A4 | 70 | bright | M10 | 16 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 3.00 € | | | B0127.610X20 | stainless steel A4 | 70 | bright | M10 | 20 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 2.55 € | | | B0127.610X25 | stainless steel A4 | 70 | bright | M10 | 25 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 2.41 € | | | B0127.610X30 | stainless steel A4 | 70 | bright | M10 | 30 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 2.60 € | | | B0127.610X35 | stainless steel A4 | 70 | bright | M10 | 35 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 2.70 € | | | B0127.610X40 | stainless steel A4 | 70 | bright | M10 | 40 | 16 | 6,5 | 6,5 | 14 | 5 | 8 | 3,35 | | | 2.99 € | | | B0127.610X45 | stainless steel A4 | 70 | bright | M10 | 45 | 16 | 6,5 | 11,5 | 19 | 5 | 8 | 3,35 | | | 3.44 € | | | B0127.610X50 | stainless steel A4 | 70 | bright | M10 | 50 | 16 | 6,5 | 16,5 | 24 | 5 | 8 | 3,35 | | | 3.72 € | | | B0127.610X60 | stainless steel A4 | 70 | bright | M10 | 60 | 16 | 6,5 | 26,5 | 34 | 5 | 8 | 3,35 | | | 4.50 € | | | B0127.610X70 | stainless steel A4 | 70 | bright | M10 | 70 | 16 | 6,5 | 36,5 | 44 | 5 | 8 | 3,35 | | | 5.62 € | | | B0127.612X20 | stainless steel A4 | 70 | bright | M12 | 20 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 3.94 € | | | B0127.612X25 | stainless steel A4 | 70 | bright | M12 | 25 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 3.72 € | | | B0127.612X30 | stainless steel A4 | 70 | bright | M12 | 30 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 3.72 € | | | B0127.612X35 | stainless steel A4 | 70 | bright | M12 | 35 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 3.98 € | | | B0127.612X40 | stainless steel A4 | 70 | bright | M12 | 40 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 4.34 € | | | B0127.612X45 | stainless steel A4 | 70 | bright | M12 | 45 | 18 | 7,5 | 6,5 | 15 | 6 | 10 | 3,85 | | | 4.79 € | | | B0127.612X50 | stainless steel A4 | 70 | bright | M12 | 50 | 18 | 7,5 | 11,5 | 20 | 6 | 10 | 3,85 | | | 5.15 € | | | B0127.612X70 | stainless steel A4 | 70 | bright | M12 | 70 | 18 | 7,5 | 31,5 | 40 | 6 | 10 | 3,85 | | | 7.57 € | |
|
