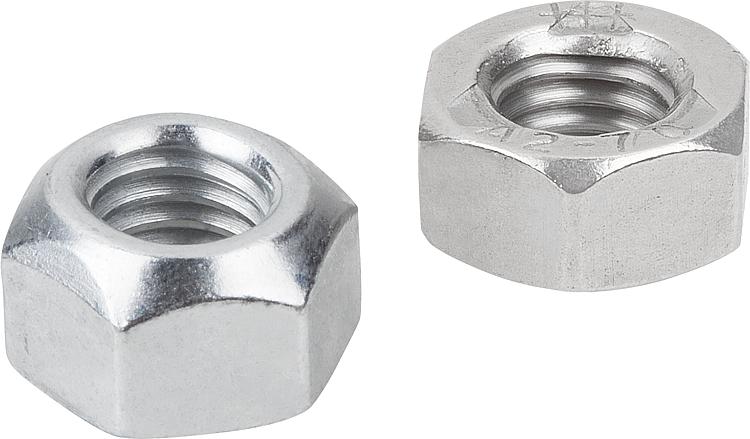

B0104Hexagon nuts with thread lock DIN 980 enhanced |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel A2.Version:Electro zinc-plated steel.
Bright stainless steel.Note:Hexagon nuts with thread lock DIN 980, Form V (all-metal nut, one piece).
The maximum nut height H max. is shown in the table.
The form and dimensions of the stainless steel versions are the same as for DIN 934 with additional crimping.Drawing reference:a) Steel
b) Stainless steel
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Grade | D
| E | H | M | SW | CAD | Acc. | Price | Order |
|---|
| B0104.204 | steel | 8 | M4 | 7,66 | 4,2 | 2,2 | 7 |  | | 0.38 € | | | B0104.205 | steel | 8 | M5 | 8,79 | 5,1 | 2,75 | 8 | | | 0.25 € | | | B0104.206 | steel | 8 | M6 | 11,05 | 6 | 3,3 | 10 | | | 0.31 € | | | B0104.208 | steel | 8 | M8 | 14,38 | 8 | 4,4 | 13 | | | 0.54 € | | | B0104.210 | steel | 8 | M10 | 18,9 | 10 | 5,5 | 17 | | | 1.08 € | | | B0104.212 | steel | 8 | M12 | 21,1 | 12 | 6,6 | 19 | | | 1.30 € | | | B0104.214 | steel | 8 | M14 | 23,9 | 14 | 7,7 | 22 | | | 1.76 € | | | B0104.216 | steel | 8 | M16 | 26,76 | 16 | 8,8 | 24 | | | 2.09 € | | | B0104.220 | steel | 8 | M20 | 32,95 | 20 | 11 | 30 | | | 2.89 € | | | B0104.224 | steel | 8 | M24 | 39,55 | 24 | 13,2 | 36 | | | 4.73 € | | | B0104.227 | steel | 8 | M27 | 45,2 | 27 | 14,8 | 41 | | | 7.51 € | | | B0104.230 | steel | 8 | M30 | 50,85 | 30 | 16,5 | 46 | | | 7.60 € | | | B0104.308 | steel | 10 | M8 | 14,38 | 8 | 4,4 | 13 | | | 0.70 € | | | B0104.310 | steel | 10 | M10 | 18,9 | 10 | 5,5 | 17 | | | 1.26 € | | | B0104.312 | steel | 10 | M12 | 21,1 | 12 | 6,6 | 19 | | | 1.78 € | | | B0104.314 | steel | 10 | M14 | 23,9 | 14 | 7,7 | 22 | | | 2.26 € | | | B0104.316 | steel | 10 | M16 | 26,76 | 16 | 8,8 | 24 | | | 2.41 € | | | B0104.320 | steel | 10 | M20 | 32,95 | 20 | 11 | 30 | | | 3.71 € | | | B0104.324 | steel | 10 | M24 | 35 | 24 | 13,2 | 36 | | | 5.40 € | | | B0104.327 | steel | 10 | M27 | 45,2 | 27 | 14,8 | 41 | | | 9.07 € | | | B0104.330 | steel | 10 | M30 | 50,85 | 30 | 16,5 | 46 | | | 10.07 € | | | B0104.104 | stainless steel A2 | 70 | M4 | 7,66 | 3,2 | 2,2 | 7 | | | 0.43 € | | | B0104.105 | stainless steel A2 | 70 | M5 | 8,79 | 4 | 2,75 | 8 | | | 0.45 € | | | B0104.106 | stainless steel A2 | 70 | M6 | 11,05 | 5 | 3,3 | 10 | | | 0.55 € | | | B0104.108 | stainless steel A2 | 70 | M8 | 14,38 | 6,5 | 4,4 | 13 | | | 0.71 € | | | B0104.110 | stainless steel A2 | 70 | M10 | 18,9 | 8 | 5,5 | 17 | | | 1.46 € | | | B0104.112 | stainless steel A2 | 70 | M12 | 21,1 | 10 | 6,6 | 19 | | | 2.19 € | | | B0104.114 | stainless steel A2 | 70 | M14 | 23,9 | 11 | 7,7 | 22 | | | 3.00 € | | | B0104.116 | stainless steel A2 | 70 | M16 | 26,76 | 13 | 8,8 | 24 | | | 2.83 € | | | B0104.120 | stainless steel A2 | 70 | M20 | 32,95 | 16 | 11 | 30 | | | 4.42 € | | | B0104.124 | stainless steel A2 | 70 | M24 | 39,55 | 19 | 13,2 | 36 | | | 6.60 € | |
