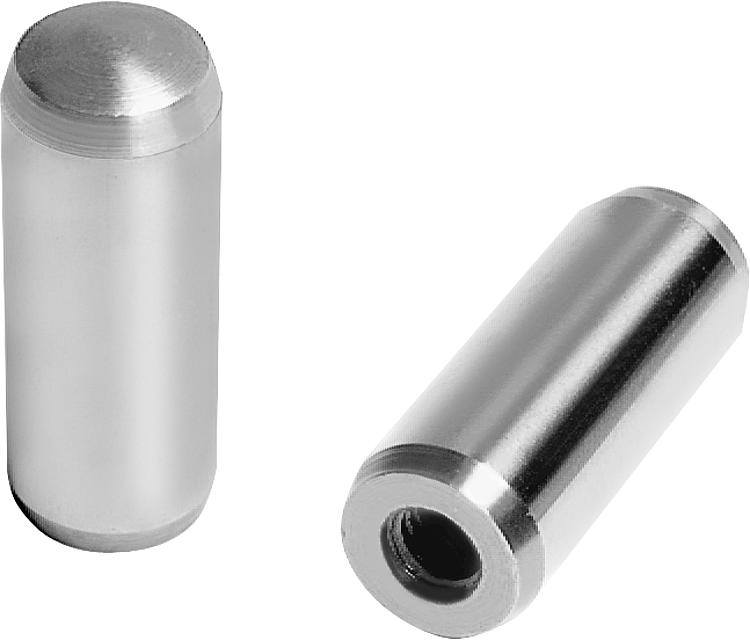

B0524Cylindrical pins with internal thread DIN EN ISO 8735 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Tool steel 1.2067Version:Case hardened, hardness 60 ±2 HRC.

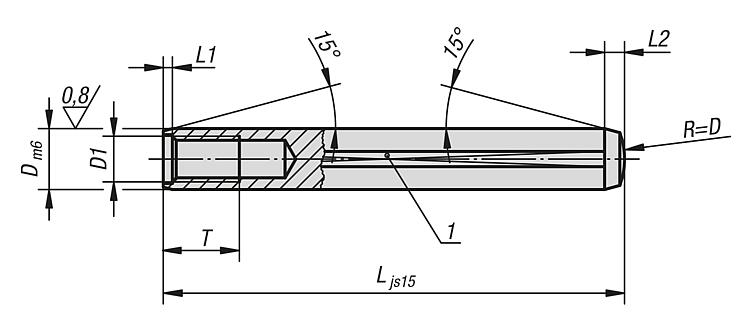

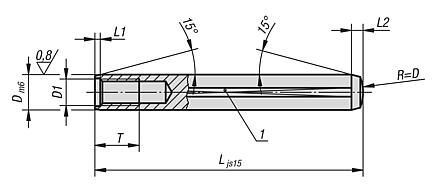

Annealed, ground and lapped.Note:Tapped cylindrical pins are chiefly used in blind holes. The milled flat prevents air compression in blind holes. Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D | L | D1 | T | L1 ca. | L2 ca. | CAD | Acc. | Price | Order |
|---|
| B0524.05X16 | 5 | 16 | M3 | 6 | 0,6 | 1,7 |  | | 1.47 € | | | B0524.05X20 | 5 | 20 | M3 | 6 | 0,6 | 1,7 | | | 1.40 € | | | B0524.05X24 | 5 | 24 | M3 | 6 | 0,6 | 1,7 | | | 1.47 € | | | B0524.05X28 | 5 | 28 | M3 | 6 | 0,6 | 1,7 | | | 1.53 € | | | B0524.05X32 | 5 | 32 | M3 | 6 | 0,6 | 1,7 | | | 1.65 € | | | B0524.05X36 | 5 | 36 | M3 | 6 | 0,6 | 1,7 | | | 1.74 € | | | B0524.05X40 | 5 | 40 | M3 | 6 | 0,6 | 1,7 | | | 1.80 € | | | B0524.05X45 | 5 | 45 | M3 | 6 | 0,6 | 1,7 | | | 1.90 € | | | B0524.06X16 | 6 | 16 | M4 | 6 | 0,8 | 2,1 | | | 0.98 € | | | B0524.06X18 | 6 | 18 | M4 | 6 | 0,8 | 2,1 | | | 0.96 € | | | B0524.06X20 | 6 | 20 | M4 | 6 | 0,8 | 2,1 | | | 0.89 € | | | B0524.06X24 | 6 | 24 | M4 | 6 | 0,8 | 2,1 | | | 0.94 € | | | B0524.06X28 | 6 | 28 | M4 | 6 | 0,8 | 2,1 | | | 0.95 € | | | B0524.06X32 | 6 | 32 | M4 | 6 | 0,8 | 2,1 | | | 1.03 € | | | B0524.06X36 | 6 | 36 | M4 | 6 | 0,8 | 2,1 | | | 1.08 € | | | B0524.06X40 | 6 | 40 | M4 | 6 | 0,8 | 2,1 | | | 1.12 € | | | B0524.06X45 | 6 | 45 | M4 | 6 | 0,8 | 2,1 | | | 1.17 € | | | B0524.06X50 | 6 | 50 | M4 | 6 | 0,8 | 2,1 | | | 1.27 € | | | B0524.06X55 | 6 | 55 | M4 | 6 | 0,8 | 2,1 | | | 1.38 € | | | B0524.06X60 | 6 | 60 | M4 | 6 | 0,8 | 2,1 | | | 1.40 € | | | B0524.08X20 | 8 | 20 | M5 | 8 | 1 | 2,6 | | | 1.05 € | | | B0524.08X24 | 8 | 24 | M5 | 8 | 1 | 2,6 | | | 1.12 € | | | B0524.08X28 | 8 | 28 | M5 | 8 | 1 | 2,6 | | | 1.15 € | | | B0524.08X32 | 8 | 32 | M5 | 8 | 1 | 2,6 | | | 1.26 € | | | B0524.08X36 | 8 | 36 | M5 | 8 | 1 | 2,6 | | | 1.34 € | | | B0524.08X40 | 8 | 40 | M5 | 8 | 1 | 2,6 | | | 1.38 € | | | B0524.08X45 | 8 | 45 | M5 | 8 | 1 | 2,6 | | | 1.47 € | | | B0524.08X50 | 8 | 50 | M5 | 8 | 1 | 2,6 | | | 1.55 € | | | B0524.08X55 | 8 | 55 | M5 | 8 | 1 | 2,6 | | | 1.77 € | | | B0524.08X60 | 8 | 60 | M5 | 8 | 1 | 2,6 | | | 1.81 € | | | B0524.08X70 | 8 | 70 | M5 | 8 | 1 | 2,6 | | | 1.97 € | | | B0524.08X80 | 8 | 80 | M5 | 8 | 1 | 2,6 | | | 2.29 € | | | B0524.08X90 | 8 | 90 | M5 | 8 | 1 | 2,6 | | | 2.34 € | | | B0524.08X100 | 8 | 100 | M5 | 8 | 1 | 2,6 | | | 3.00 € | | | B0524.10X20 | 10 | 20 | M6 | 10 | 1,2 | 3 | | | 1.95 € | | | B0524.10X24 | 10 | 24 | M6 | 10 | 1,2 | 3 | | | 1.48 € | | | B0524.10X28 | 10 | 28 | M6 | 10 | 1,2 | 3 | | | 1.57 € | | | B0524.10X32 | 10 | 32 | M6 | 10 | 1,2 | 3 | | | 1.47 € | | | B0524.10X36 | 10 | 36 | M6 | 10 | 1,2 | 3 | | | 1.55 € | | | B0524.10X40 | 10 | 40 | M6 | 10 | 1,2 | 3 | | | 1.75 € | | | B0524.10X45 | 10 | 45 | M6 | 10 | 1,2 | 3 | | | 1.87 € | | | B0524.10X50 | 10 | 50 | M6 | 10 | 1,2 | 3 | | | 1.97 € | | | B0524.10X55 | 10 | 55 | M6 | 10 | 1,2 | 3 | | | 2.26 € | | | B0524.10X60 | 10 | 60 | M6 | 10 | 1,2 | 3 | | | 2.29 € | | | B0524.10X70 | 10 | 70 | M6 | 10 | 1,2 | 3 | | | 2.56 € | | | B0524.10X80 | 10 | 80 | M6 | 10 | 1,2 | 3 | | | 2.81 € | | | B0524.10X90 | 10 | 90 | M6 | 10 | 1,2 | 3 | | | 2.70 € | | | B0524.10X100 | 10 | 100 | M6 | 10 | 1,2 | 3 | | | 2.84 € | | | B0524.12X32 | 12 | 32 | M6 | 10 | 1,6 | 3,8 | | | 1.75 € | | | B0524.12X36 | 12 | 36 | M6 | 10 | 1,6 | 3,8 | | | 1.87 € | | | B0524.12X40 | 12 | 40 | M6 | 10 | 1,6 | 3,8 | | | 2.10 € | | | B0524.12X45 | 12 | 45 | M6 | 10 | 1,6 | 3,8 | | | 2.29 € | | | B0524.12X50 | 12 | 50 | M6 | 10 | 1,6 | 3,8 | | | 2.44 € | | | B0524.12X55 | 12 | 55 | M6 | 10 | 1,6 | 3,8 | | | 2.56 € | | | B0524.12X60 | 12 | 60 | M6 | 10 | 1,6 | 3,8 | | | 2.68 € | | | B0524.12X70 | 12 | 70 | M6 | 10 | 1,6 | 3,8 | | | 2.93 € | | | B0524.12X80 | 12 | 80 | M6 | 10 | 1,6 | 3,8 | | | 3.13 € | | | B0524.12X90 | 12 | 90 | M6 | 10 | 1,6 | 3,8 | | | 3.46 € | | | B0524.12X100 | 12 | 100 | M6 | 10 | 1,6 | 3,8 | | | 3.64 € | | | B0524.12X120 | 12 | 120 | M6 | 10 | 1,6 | 3,8 | | | 3.69 € | | | B0524.14X32 | 14 | 32 | M8 | 12 | 1,8 | 4 | | | 2.07 € | | | B0524.14X36 | 14 | 36 | M8 | 12 | 1,8 | 4 | | | 2.34 € | | | B0524.14X40 | 14 | 40 | M8 | 12 | 1,8 | 4 | | | 2.60 € | | | B0524.14X45 | 14 | 45 | M8 | 12 | 1,8 | 4 | | | 3.38 € | | | B0524.14X50 | 14 | 50 | M8 | 12 | 1,8 | 4 | | | 3.30 € | | | B0524.14X55 | 14 | 55 | M8 | 12 | 1,8 | 4 | | | 3.46 € | | | B0524.14X60 | 14 | 60 | M8 | 12 | 1,8 | 4 | | | 3.61 € | | | B0524.14X70 | 14 | 70 | M8 | 12 | 1,8 | 4 | | | 3.90 € | | | B0524.14X80 | 14 | 80 | M8 | 12 | 1,8 | 4 | | | 4.19 € | | | B0524.14X90 | 14 | 90 | M8 | 12 | 1,8 | 4 | | | 4.02 € | | | B0524.14X100 | 14 | 100 | M8 | 12 | 1,8 | 4 | | | 4.57 € | | | B0524.14X120 | 14 | 120 | M8 | 12 | 1,8 | 4 | | | 4.93 € | | | B0524.16X40 | 16 | 40 | M8 | 12 | 2 | 4,7 | | | 3.38 € | | | B0524.16X45 | 16 | 45 | M8 | 12 | 2 | 4,7 | | | 3.55 € | | | B0524.16X50 | 16 | 50 | M8 | 12 | 2 | 4,7 | | | 3.83 € | | | B0524.16X55 | 16 | 55 | M8 | 12 | 2 | 4,7 | | | 3.55 € | | | B0524.16X60 | 16 | 60 | M8 | 12 | 2 | 4,7 | | | 4.28 € | | | B0524.16X70 | 16 | 70 | M8 | 12 | 2 | 4,7 | | | 4.60 € | | | B0524.16X80 | 16 | 80 | M8 | 12 | 2 | 4,7 | | | 4.94 € | | | B0524.16X90 | 16 | 90 | M8 | 12 | 2 | 4,7 | | | 5.25 € | | | B0524.16X100 | 16 | 100 | M8 | 12 | 2 | 4,7 | | | 5.85 € | | | B0524.16X120 | 16 | 120 | M8 | 12 | 2 | 4,7 | | | 6.29 € | | | B0524.20X45 | 20 | 45 | M10 | 16 | 2,5 | 6 | | | 5.70 € | | | B0524.20X50 | 20 | 50 | M10 | 16 | 2,5 | 6 | | | 6.60 € | | | B0524.20X55 | 20 | 55 | M10 | 16 | 2,5 | 6 | | | 6.23 € | | | B0524.20X60 | 20 | 60 | M10 | 16 | 2,5 | 6 | | | 7.45 € | | | B0524.20X70 | 20 | 70 | M10 | 16 | 2,5 | 6 | | | 7.95 € | | | B0524.20X80 | 20 | 80 | M10 | 16 | 2,5 | 6 | | | 8.42 € | | | B0524.20X90 | 20 | 90 | M10 | 16 | 2,5 | 6 | | | 8.21 € | | | B0524.20X100 | 20 | 100 | M10 | 16 | 2,5 | 6 | | | 9.76 € | | | B0524.20X120 | 20 | 120 | M10 | 16 | 2,5 | 6 | | | 10.68 € | |
