B0100Hexagon nuts thin DIN 439 / ISO 4035 |
go back |
|

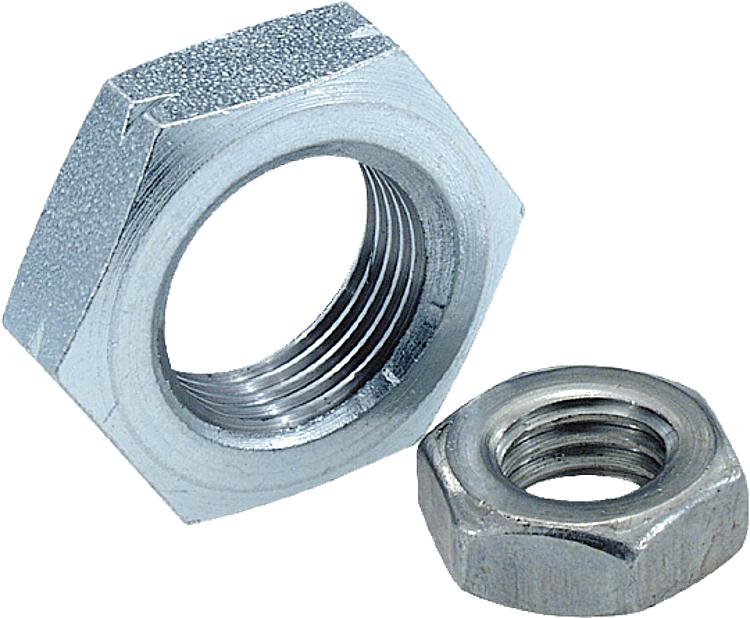

Item description/product images |
|
|
DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 04, electro zinc-plated or black oxidised.
Stainless steel A2, bright.
Stainless steel A4, bright.Note:These hexagon nuts are used in screw connections exposed to limited loads, e.g. as a locknut for clevis joints or rod ends.

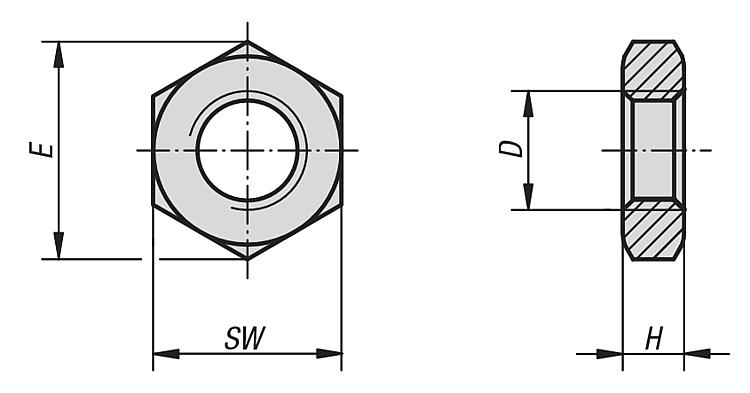

The maximum nut height H max. is shown in the table. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Surface finish
body | Version 2 | D | E | H | SW | DIN | ISO | Status | CAD | Acc. | Price | Order |
|---|
| B0100.006 | steel | galvanised | RH thread | M6X0,75 | 11,05 | 3,2 | 10 | DIN 439 | - | |  | | 0.53 € | | | B0100.008 | steel | galvanised | RH thread | M8X1 | 14,38 | 4 | 13 | DIN 439 | - | | | | 0.11 € | | | B0100.05 | steel | galvanised | RH thread | M5 | 8,79 | 2,7 | 8 | DIN 439 | - | | | | 0.11 € | | | B0100.06 | steel | galvanised | RH thread | M6 | 11,05 | 3,2 | 10 | DIN 439 | - | | | | 0.11 € | | | B0100.061 | steel | galvanised | LH thread | M6 | 11,05 | 3,2 | 10 | DIN 439 | - | | | | 0.62 € | | | B0100.08 | steel | galvanised | RH thread | M8 | 14,38 | 4 | 13 | DIN 439 | - | | | | 0.11 € | | | B0100.081 | steel | galvanised | LH thread | M8 | 14,38 | 4 | 13 | DIN 439 | - | | | | 0.88 € | | | B0100.10 | steel | galvanised | RH thread | M10 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.20 € | | | B0100.101 | steel | galvanised | LH thread | M10 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.99 € | | | B0100.103 | steel | galvanised | RH thread | M10X1 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.25 € | | | B0100.1031 | steel | galvanised | LH thread | M10X1 | 18,9 | 5 | 17 | DIN 439 | - | | | | 1.12 € | | | B0100.104 | steel | galvanised | RH thread | M10X1,25 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.25 € | | | B0100.1041 | steel | galvanised | LH thread | M10X1,25 | 18,9 | 5 | 17 | DIN 439 | - | | | | 1.22 € | | | B0100.12 | steel | galvanised | RH thread | M12 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.31 € | | | B0100.121 | steel | galvanised | LH thread | M12 | 21,1 | 6 | 19 | DIN 439 | - | | | | 1.06 € | | | B0100.123 | steel | galvanised | RH thread | M12X1,25 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.34 € | | | B0100.1231 | steel | galvanised | LH thread | M12X1,25 | 21,1 | 6 | 19 | DIN 439 | - | | | | 1.43 € | | | B0100.124 | steel | galvanised | RH thread | M12X1,5 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.34 € | | | B0100.1241 | steel | galvanised | LH thread | M12X1,5 | 21,1 | 6 | 19 | DIN 439 | - | | | | 1.29 € | | | B0100.16 | steel | galvanised | RH thread | M16 | 26,76 | 8 | 24 | DIN 439 | - | | | | 0.38 € | | | B0100.161 | steel | galvanised | LH thread | M16 | 26,76 | 8 | 24 | DIN 439 | - | | | | 1.07 € | | | B0100.163 | steel | galvanised | RH thread | M16x1,5 | 26,76 | 8 | 24 | DIN 439 | - | | | | 0.48 € | | | B0100.183 | steel | galvanised | RH thread | M18x1,5 | 29,56 | 9 | 27 | DIN 439 | - | | | | 0.90 € | | | B0100.203 | steel | galvanised | RH thread | M20X1,5 | 32,95 | 10 | 30 | DIN 439 | - | | | | 1.07 € | | | B0100.2031 | steel | galvanised | LH thread | M20X1,5 | 32,95 | 10 | 30 | DIN 439 | - | | | | 1.82 € | | | B0100.223 | steel | galvanised | RH thread | M22x1,5 | 36,9 | 10 | 32 | DIN 439 | - | | | | 1.57 € | | | B0100.2231 | steel | galvanised | LH thread | M22x1,5 | 36,9 | 10 | 32 | DIN 439 | - | | | | 2.65 € | | | B0100.14 | steel | galvanised | RH thread | M14 | 24,49 | 7 | 22 | DIN 439 | - | | | | 0.36 € | | | B0100.20 | steel | galvanised | RH thread | M20 | 32,95 | 10 | 30 | DIN 439 | - | | | | 1.02 € | | | B0100.24 | steel | galvanised | RH thread | M24 | 39,55 | 12 | 36 | DIN 439 | - | | | | 1.77 € | | | B0100.30 | steel | galvanised | RH thread | M30 | 50,85 | 15 | 46 | DIN 439 | - | | | | 3.40 € | | | B0100.205 | steel | black oxidised | RH thread | M5 | 8,79 | 2,7 | 8 | DIN 439 | - | | | | 0.11 € | | | B0100.206 | steel | black oxidised | RH thread | M6 | 11,05 | 3,2 | 10 | DIN 439 | - | | | | 0.11 € | | | B0100.2063 | steel | black oxidised | RH thread | M6X0,75 | 11,05 | 3,2 | 10 | DIN 439 | - | | | | 0.11 € | | | B0100.208 | steel | black oxidised | RH thread | M8 | 14,38 | 4 | 13 | DIN 439 | - | | | | 0.11 € | | | B0100.2083 | steel | black oxidised | RH thread | M8X1 | 14,38 | 4 | 13 | DIN 439 | - | | | | 0.14 € | | | B0100.210 | steel | black oxidised | RH thread | M10 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.20 € | | | B0100.2103 | steel | black oxidised | RH thread | M10X1 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.25 € | | | B0100.212 | steel | black oxidised | RH thread | M12 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.31 € | | | B0100.2124 | steel | black oxidised | RH thread | M12X1,5 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.34 € | | | B0100.216 | steel | black oxidised | RH thread | M16 | 26,76 | 8 | 24 | DIN 439 | - | | | | 0.38 € | | | B0100.2163 | steel | black oxidised | RH thread | M16x1,5 | 26,76 | 8 | 24 | DIN 439 | - | | | | 0.48 € | | | B0100.2203 | steel | black oxidised | RH thread | M20X1,5 | 32,95 | 10 | 30 | DIN 439 | - | | | | 1.07 € | | | B0100.2243 | steel | black oxidised | RH thread | M24x2 | 39,6 | 12 | 36 | DIN 439 | - | | | | 1.07 € | | | B0100.105 | stainless steel A2 | bright | RH thread | M5 | 8,79 | 2,7 | 8 | DIN 439 | - | | | | 0.11 € | | | B0100.106 | stainless steel A2 | bright | RH thread | M6 | 11,05 | 3,2 | 10 | DIN 439 | - | | | | 0.11 € | | | B0100.1061 | stainless steel A2 | bright | LH thread | M6 | 11,05 | 3,2 | 10 | DIN 439 | - | | | | 0.69 € | | | B0100.1062 | stainless steel A2 | bright | RH thread | M6X0,75 | 11,05 | 3,2 | 10 | DIN 439 | - | | | | 0.25 € | | | B0100.108 | stainless steel A2 | bright | RH thread | M8 | 14,38 | 4 | 13 | DIN 439 | - | | | | 0.25 € | | | B0100.1081 | stainless steel A2 | bright | LH thread | M8 | 14,38 | 4 | 13 | DIN 439 | - | | | | 0.93 € | | | B0100.1083 | stainless steel A2 | bright | RH thread | M8X1 | 14,38 | 4 | 13 | DIN 439 | - | | | | 0.29 € | | | B0100.110 | stainless steel A2 | bright | RH thread | M10 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.31 € | | | B0100.1101 | stainless steel A2 | bright | LH thread | M10 | 18,9 | 5 | 17 | DIN 439 | - | | | | 1.12 € | | | B0100.1103 | stainless steel A2 | bright | RH thread | M10X1 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.31 € | | | B0100.11031 | stainless steel A2 | bright | LH thread | M10X1 | 18,9 | 5 | 17 | DIN 439 | - | | | | 1.26 € | | | B0100.1104 | stainless steel A2 | bright | RH thread | M10X1,25 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.32 € | | | B0100.11041 | stainless steel A2 | bright | LH thread | M10X1,25 | 18,9 | 5 | 17 | DIN 439 | - | | | | 1.29 € | | | B0100.112 | stainless steel A2 | bright | RH thread | M12 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.36 € | | | B0100.1121 | stainless steel A2 | bright | LH thread | M12 | 21,1 | 6 | 19 | DIN 439 | - | | | | 1.19 € | | | B0100.1123 | stainless steel A2 | bright | RH thread | M12X1,25 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.38 € | | | B0100.11231 | stainless steel A2 | bright | LH thread | M12X1,25 | 21,1 | 6 | 19 | DIN 439 | - | | | | 2.01 € | | | B0100.1124 | stainless steel A2 | bright | RH thread | M12X1,5 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.38 € | | | B0100.11241 | stainless steel A2 | bright | LH thread | M12X1,5 | 21,1 | 6 | 19 | DIN 439 | - | expiring | | | 2.01 € | | | B0100.116 | stainless steel A2 | bright | RH thread | M16 | 26,76 | 8 | 24 | DIN 439 | - | | | | 0.62 € | | | B0100.1161 | stainless steel A2 | bright | LH thread | M16 | 26,76 | 8 | 24 | DIN 439 | - | | | | 2.01 € | | | B0100.1163 | stainless steel A2 | bright | RH thread | M16x1,5 | 26,76 | 8 | 24 | DIN 439 | - | | | | 0.69 € | | | B0100.120 | stainless steel A2 | bright | RH thread | M20 | 32,95 | 10 | 30 | DIN 439 | - | | | | 1.16 € | | | B0100.1203 | stainless steel A2 | bright | RH thread | M20X1,5 | 32,95 | 10 | 30 | DIN 439 | - | | | | 1.19 € | | | B0100.12031 | stainless steel A2 | bright | LH thread | M20X1,5 | 32,95 | 10 | 30 | DIN 439 | - | | | | 3.09 € | | | B0100.1223 | stainless steel A2 | bright | RH thread | M22x1,5 | 36,9 | 10 | 32 | DIN 439 | - | | | | 2.88 € | | | B0100.12231 | stainless steel A2 | bright | LH thread | M22x1,5 | 36,9 | 10 | 32 | DIN 439 | - | | | | 3.44 € | | | B0100.1243 | stainless steel A2 | bright | RH thread | M24x2 | 39,6 | 12 | 36 | DIN 439 | - | | | | 3.25 € | | | B0100.114 | stainless steel A2 | bright | RH thread | M14 | 24,49 | 7 | 22 | DIN 439 | - | | | | 0.50 € | | | B0100.1244 | stainless steel A2 | bright | RH thread | M24 | 39,55 | 12 | 36 | DIN 439 | - | | | | 3.01 € | | | B0100.605 | stainless steel A4 | bright | RH thread | M5 | 8,79 | 2,7 | 8 | DIN 439 | - | | | | 0.14 € | | | B0100.606 | stainless steel A4 | bright | RH thread | M6 | 11,05 | 3,2 | 10 | DIN 439 | - | | | | 0.14 € | | | B0100.608 | stainless steel A4 | bright | RH thread | M8 | 14,38 | 4 | 13 | DIN 439 | - | | | | 0.31 € | | | B0100.610 | stainless steel A4 | bright | RH thread | M10 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.40 € | | | B0100.6103 | stainless steel A4 | bright | RH thread | M10X1 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.40 € | | | B0100.6104 | stainless steel A4 | bright | RH thread | M10X1,25 | 18,9 | 5 | 17 | DIN 439 | - | | | | 0.41 € | | | B0100.612 | stainless steel A4 | bright | RH thread | M12 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.48 € | | | B0100.6123 | stainless steel A4 | bright | RH thread | M12X1,25 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.50 € | | | B0100.6124 | stainless steel A4 | bright | RH thread | M12X1,5 | 21,1 | 6 | 19 | DIN 439 | - | | | | 0.50 € | | | B0100.614 | stainless steel A4 | bright | RH thread | M14 | 24,49 | 7 | 22 | DIN 439 | - | | | | 0.65 € | | | B0100.616 | stainless steel A4 | bright | RH thread | M16 | 26,76 | 8 | 24 | DIN 439 | - | | | | 0.82 € | | | B0100.6163 | stainless steel A4 | bright | RH thread | M16x1,5 | 26,76 | 8 | 24 | DIN 439 | - | | | | 0.90 € | | | B0100.620 | stainless steel A4 | bright | RH thread | M20 | 32,95 | 10 | 30 | DIN 439 | - | | | | 1.50 € | | | B0100.6203 | stainless steel A4 | bright | RH thread | M20X1,5 | 32,95 | 10 | 30 | DIN 439 | - | | | | 1.56 € | | | B0100.6223 | stainless steel A4 | bright | RH thread | M22x1,5 | 36,9 | 10 | 32 | DIN 439 | - | | | | 3.76 € | | | B0100.6244 | stainless steel A4 | bright | RH thread | M24 | 39,55 | 12 | 36 | DIN 439 | - | | | | 3.90 € | | | B0100.6243 | stainless steel A4 | bright | RH thread | M24x2 | 39,6 | 12 | 36 | DIN 439 | - | | | | 4.25 € | |
