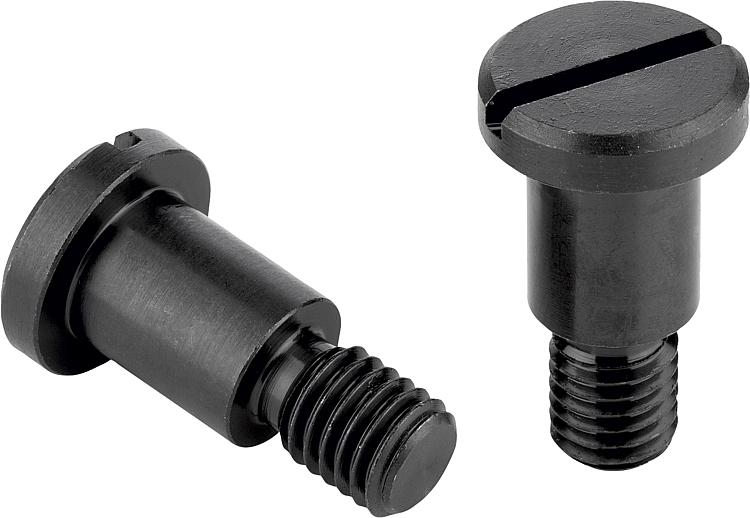

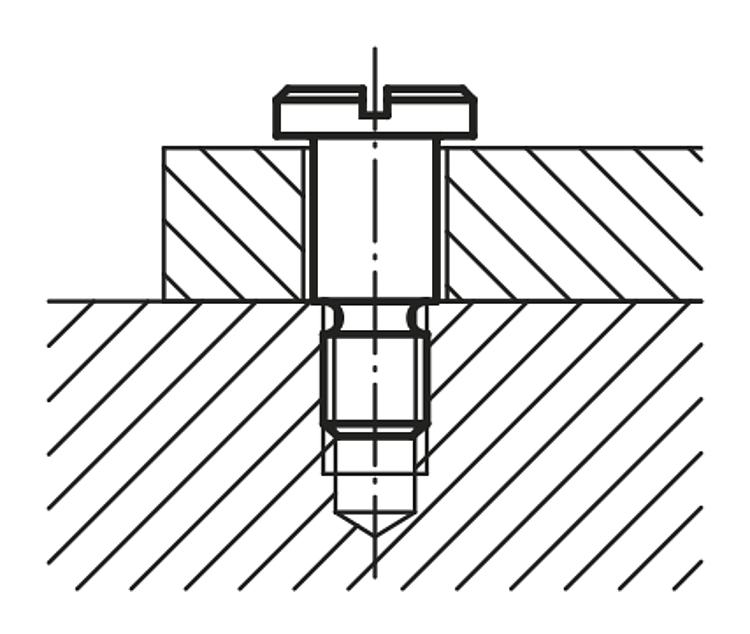

B0117Shoulder screws with slotted flat head DIN 923 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Black oxidised, grade 5.8.Note:For use with captive C-washers B0116. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D1
| D2 | D3 | L | B | K | CAD | Acc. | Price | Order |
|---|
| B0117.06 | M6 | 13 | 8 | 10 +0,15/+0,07 | 9 | 3,1 |  | | 1.81 € | | | B0117.08 | M8 | 16 | 10 | 12 +0,2/+0,1 | 11 | 3,8 | | | 2.15 € | | | B0117.10 | M10 | 20 | 13 | 16 +0,2/+0,1 | 13,5 | 4,6 | | | 2.81 € | |
