B0120Grub screws with flat point hexagon socket DIN EN ISO 4026 |
go back |
|
|
DescriptionMaterial:Steel or stainless steel (A 2).
Thread lock nylon.Version:Steel class 45 H, black.
Stainless steel A2-70, bright.Drawing reference:L2 = approx. 2x thread pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

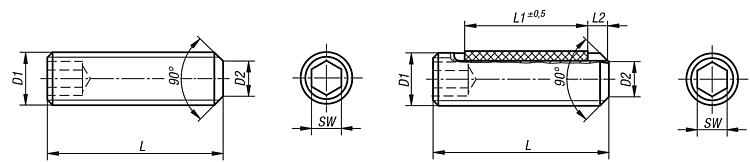

Drawings (total overview) |

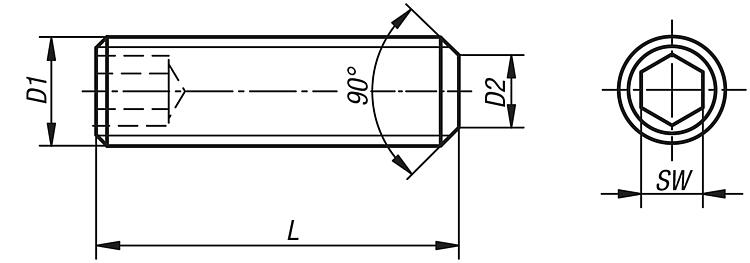

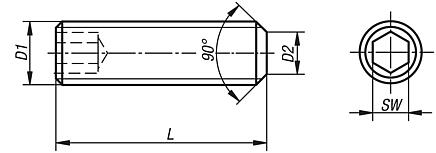

Grub screws with hex socket and flat point DIN EN ISO 4026, without thread lock |
More information |
| Order No. | Main
material | L | D1 | D2 | SW | CAD | Acc. | Price | Order |
|---|
| B0120.03X5 | steel | 5 | M3 | 2 | 1,5 |  | | 0.11 € | | | B0120.03X6 | steel | 6 | M3 | 2 | 1,5 | | | 0.11 € | | | B0120.03X8 | steel | 8 | M3 | 2 | 1,5 | | | 0.11 € | | | B0120.03X10 | steel | 10 | M3 | 2 | 1,5 | | | 0.14 € | | | B0120.03X12 | steel | 12 | M3 | 2 | 1,5 | | | 0.14 € | | | B0120.03X16 | steel | 16 | M3 | 2 | 1,5 | | | 0.14 € | | | B0120.03X20 | steel | 20 | M3 | 2 | 1,5 | | | 0.31 € | | | B0120.04X5 | steel | 5 | M4 | 2,5 | 2 | | | 0.11 € | | | B0120.04X6 | steel | 6 | M4 | 2,5 | 2 | | | 0.11 € | | | B0120.04X8 | steel | 8 | M4 | 2,5 | 2 | | | 0.11 € | | | B0120.04X10 | steel | 10 | M4 | 2,5 | 2 | | | 0.11 € | | | B0120.04X12 | steel | 12 | M4 | 2,5 | 2 | | | 0.11 € | | | B0120.04X16 | steel | 16 | M4 | 2,5 | 2 | | | 0.14 € | | | B0120.04X20 | steel | 20 | M4 | 2,5 | 2 | | | 0.25 € | | | B0120.04X25 | steel | 25 | M4 | 2,5 | 2 | | | 0.31 € | | | B0120.05X5 | steel | 5 | M5 | 3,5 | 2,5 | | | 0.11 € | | | B0120.05X6 | steel | 6 | M5 | 3,5 | 2,5 | | | 0.11 € | | | B0120.05X8 | steel | 8 | M5 | 3,5 | 2,5 | | | 0.11 € | | | B0120.05X10 | steel | 10 | M5 | 3,5 | 2,5 | | | 0.11 € | | | B0120.05X12 | steel | 12 | M5 | 3,5 | 2,5 | | | 0.11 € | | | B0120.05X16 | steel | 16 | M5 | 3,5 | 2,5 | | | 0.14 € | | | B0120.05X20 | steel | 20 | M5 | 3,5 | 2,5 | | | 0.25 € | | | B0120.05X25 | steel | 25 | M5 | 3,5 | 2,5 | | | 0.32 € | | | B0120.05X30 | steel | 30 | M5 | 3,5 | 2,5 | | | 0.36 € | | | B0120.06X6 | steel | 6 | M6 | 4 | 3 | | | 0.11 € | | | B0120.06X8 | steel | 8 | M6 | 4 | 3 | | | 0.11 € | | | B0120.06X10 | steel | 10 | M6 | 4 | 3 | | | 0.14 € | | | B0120.06X12 | steel | 12 | M6 | 4 | 3 | | | 0.14 € | | | B0120.06X16 | steel | 16 | M6 | 4 | 3 | | | 0.25 € | | | B0120.06X20 | steel | 20 | M6 | 4 | 3 | | | 0.31 € | | | B0120.06X25 | steel | 25 | M6 | 4 | 3 | | | 0.34 € | | | B0120.06X30 | steel | 30 | M6 | 4 | 3 | | | 0.38 € | | | B0120.06X35 | steel | 35 | M6 | 4 | 3 | | | 0.45 € | | | B0120.06X40 | steel | 40 | M6 | 4 | 3 | | | 0.50 € | | | B0120.06X45 | steel | 45 | M6 | 4 | 3 | | | 0.55 € | | | B0120.06X50 | steel | 50 | M6 | 4 | 3 | | | 0.62 € | | | B0120.06X60 | steel | 60 | M6 | 4 | 3 | | | 0.64 € | | | B0120.08X8 | steel | 8 | M8 | 5,5 | 4 | | | 0.14 € | | | B0120.08X10 | steel | 10 | M8 | 5,5 | 4 | | | 0.14 € | | | B0120.08X12 | steel | 12 | M8 | 5,5 | 4 | | | 0.14 € | | | B0120.08X16 | steel | 16 | M8 | 5,5 | 4 | | | 0.31 € | | | B0120.08X20 | steel | 20 | M8 | 5,5 | 4 | | | 0.32 € | | | B0120.08X25 | steel | 25 | M8 | 5,5 | 4 | | | 0.38 € | | | B0120.08X30 | steel | 30 | M8 | 5,5 | 4 | | | 0.65 € | | | B0120.08X35 | steel | 35 | M8 | 5,5 | 4 | | | 0.48 € | | | B0120.08X40 | steel | 40 | M8 | 5,5 | 4 | | | 0.59 € | | | B0120.08X45 | steel | 45 | M8 | 5,5 | 4 | | | 0.64 € | | | B0120.08X50 | steel | 50 | M8 | 5,5 | 4 | | | 0.69 € | | | B0120.08X60 | steel | 60 | M8 | 5,5 | 4 | | | 0.83 € | | | B0120.08X70 | steel | 70 | M8 | 5,5 | 4 | | | 0.90 € | | | B0120.08X80 | steel | 80 | M8 | 5,5 | 4 | | | 0.90 € | | | B0120.10X10 | steel | 10 | M10 | 7 | 5 | | | 0.31 € | | | B0120.10X12 | steel | 12 | M10 | 7 | 5 | | | 0.31 € | | | B0120.10X16 | steel | 16 | M10 | 7 | 5 | | | 0.32 € | | | B0120.10X20 | steel | 20 | M10 | 7 | 5 | | | 0.38 € | | | B0120.10X25 | steel | 25 | M10 | 7 | 5 | | | 0.48 € | | | B0120.10X30 | steel | 30 | M10 | 7 | 5 | | | 0.50 € | | | B0120.10X35 | steel | 35 | M10 | 7 | 5 | | | 0.55 € | | | B0120.10X40 | steel | 40 | M10 | 7 | 5 | | | 0.65 € | | | B0120.10X45 | steel | 45 | M10 | 7 | 5 | | | 0.83 € | | | B0120.10X50 | steel | 50 | M10 | 7 | 5 | | | 0.84 € | | | B0120.10X60 | steel | 60 | M10 | 7 | 5 | | | 0.90 € | | | B0120.10X70 | steel | 70 | M10 | 7 | 5 | | | 1.04 € | | | B0120.10X80 | steel | 80 | M10 | 7 | 5 | | | 1.22 € | | | B0120.10X90 | steel | 90 | M10 | 7 | 5 | | | 1.43 € | | | B0120.10X100 | steel | 100 | M10 | 7 | 5 | | | 1.80 € | | | B0120.103X5 | stainless steel | 5 | M3 | 2 | 1,5 | | | 0.60 € | | | B0120.103X6 | stainless steel | 6 | M3 | 2 | 1,5 | | | 0.62 € | | | B0120.103X8 | stainless steel | 8 | M3 | 2 | 1,5 | | | 0.64 € | | | B0120.103X10 | stainless steel | 10 | M3 | 2 | 1,5 | | | 0.65 € | | | B0120.103X12 | stainless steel | 12 | M3 | 2 | 1,5 | | | 0.70 € | | | B0120.104X5 | stainless steel | 5 | M4 | 2,5 | 2 | | | 0.36 € | | | B0120.104X6 | stainless steel | 6 | M4 | 2,5 | 2 | | | 0.36 € | | | B0120.104X8 | stainless steel | 8 | M4 | 2,5 | 2 | | | 0.38 € | | | B0120.104X10 | stainless steel | 10 | M4 | 2,5 | 2 | | | 0.40 € | | | B0120.104X12 | stainless steel | 12 | M4 | 2,5 | 2 | | | 0.40 € | | | B0120.104X16 | stainless steel | 16 | M4 | 2,5 | 2 | | | 0.48 € | | | B0120.104X20 | stainless steel | 20 | M4 | 2,5 | 2 | | | 0.50 € | | | B0120.105X5 | stainless steel | 5 | M5 | 3,5 | 2,5 | | | 0.45 € | | | B0120.105X6 | stainless steel | 6 | M5 | 3,5 | 2,5 | | | 0.45 € | | | B0120.105X8 | stainless steel | 8 | M5 | 3,5 | 2,5 | | | 0.48 € | | | B0120.105X10 | stainless steel | 10 | M5 | 3,5 | 2,5 | | | 0.48 € | | | B0120.105X12 | stainless steel | 12 | M5 | 3,5 | 2,5 | | | 0.48 € | | | B0120.105X16 | stainless steel | 16 | M5 | 3,5 | 2,5 | | | 0.48 € | | | B0120.105X20 | stainless steel | 20 | M5 | 3,5 | 2,5 | | | 0.60 € | | | B0120.105X25 | stainless steel | 25 | M5 | 3,5 | 2,5 | | | 0.62 € | | | B0120.105X30 | stainless steel | 30 | M5 | 3,5 | 2,5 | | | 0.65 € | | | B0120.106X6 | stainless steel | 6 | M6 | 4 | 3 | | | 0.48 € | | | B0120.106X8 | stainless steel | 8 | M6 | 4 | 3 | | | 0.48 € | | | B0120.106X10 | stainless steel | 10 | M6 | 4 | 3 | | | 0.50 € | | | B0120.106X12 | stainless steel | 12 | M6 | 4 | 3 | | | 0.53 € | | | B0120.106X16 | stainless steel | 16 | M6 | 4 | 3 | | | 0.59 € | | | B0120.106X20 | stainless steel | 20 | M6 | 4 | 3 | | | 0.64 € | | | B0120.106X25 | stainless steel | 25 | M6 | 4 | 3 | | | 0.69 € | | | B0120.106X30 | stainless steel | 30 | M6 | 4 | 3 | | | 0.79 € | | | B0120.106X35 | stainless steel | 35 | M6 | 4 | 3 | | | 0.83 € | | | B0120.106X40 | stainless steel | 40 | M6 | 4 | 3 | | | 0.84 € | | | B0120.108X8 | stainless steel | 8 | M8 | 5,5 | 4 | | | 0.60 € | | | B0120.108X10 | stainless steel | 10 | M8 | 5,5 | 4 | | | 0.62 € | | | B0120.108X12 | stainless steel | 12 | M8 | 5,5 | 4 | | | 0.64 € | | | B0120.108X16 | stainless steel | 16 | M8 | 5,5 | 4 | | | 0.70 € | | | B0120.108X20 | stainless steel | 20 | M8 | 5,5 | 4 | | | 0.83 € | | | B0120.108X25 | stainless steel | 25 | M8 | 5,5 | 4 | | | 0.88 € | | | B0120.108X30 | stainless steel | 30 | M8 | 5,5 | 4 | | | 0.90 € | | | B0120.108X35 | stainless steel | 35 | M8 | 5,5 | 4 | | | 0.90 € | | | B0120.108X40 | stainless steel | 40 | M8 | 5,5 | 4 | | | 0.94 € | | | B0120.108X45 | stainless steel | 45 | M8 | 5,5 | 4 | | | 1.04 € | | | B0120.108X50 | stainless steel | 50 | M8 | 5,5 | 4 | | | 1.08 € | | | B0120.110X10 | stainless steel | 10 | M10 | 7 | 5 | | | 0.83 € | | | B0120.110X12 | stainless steel | 12 | M10 | 7 | 5 | | | 0.84 € | | | B0120.110X16 | stainless steel | 16 | M10 | 7 | 5 | | | 0.90 € | | | B0120.110X20 | stainless steel | 20 | M10 | 7 | 5 | | | 0.97 € | | | B0120.110X25 | stainless steel | 25 | M10 | 7 | 5 | | | 0.98 € | | | B0120.110X30 | stainless steel | 30 | M10 | 7 | 5 | | | 1.07 € | | | B0120.110X35 | stainless steel | 35 | M10 | 7 | 5 | | | 1.19 € | | | B0120.110X40 | stainless steel | 40 | M10 | 7 | 5 | | | 1.31 € | | | B0120.110X45 | stainless steel | 45 | M10 | 7 | 5 | | | 1.43 € | | | B0120.110X50 | stainless steel | 50 | M10 | 7 | 5 | | | 1.52 € | |
|

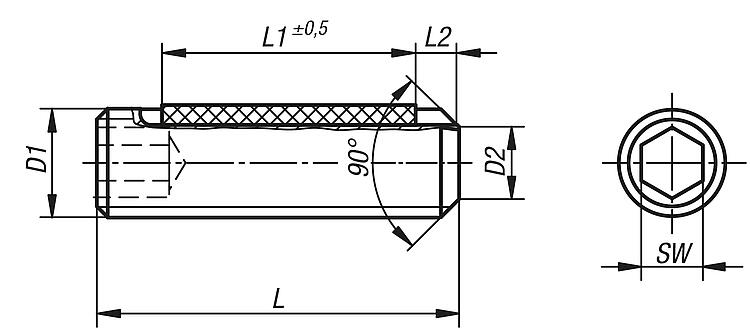

Grub screws with hex socket and flat point DIN EN ISO 4026, with thread lock |
More information |
| Order No. | Version 2 | Main
material | L | L1 | D1
| D2 | SW | CAD | Acc. | Price | Order |
|---|
| B0120.203X5 | with thread lock | steel | 5 | 2 | M3 | 2 | 1,5 | | | 0.71 € | | | B0120.203X6 | with thread lock | steel | 6 | 3 | M3 | 2 | 1,5 | | | 0.71 € | | | B0120.203X8 | with thread lock | steel | 8 | 4 | M3 | 2 | 1,5 | | | 0.71 € | | | B0120.203X10 | with thread lock | steel | 10 | 4 | M3 | 2 | 1,5 | | | 0.71 € | | | B0120.203X12 | with thread lock | steel | 12 | 4 | M3 | 2 | 1,5 | | | 0.71 € | | | B0120.204X5 | with thread lock | steel | 5 | 2 | M4 | 2,5 | 2 | | | 0.71 € | | | B0120.204X6 | with thread lock | steel | 6 | 2,5 | M4 | 2,5 | 2 | | | 0.71 € | | | B0120.204X8 | with thread lock | steel | 8 | 3,5 | M4 | 2,5 | 2 | | | 0.71 € | | | B0120.204X10 | with thread lock | steel | 10 | 5 | M4 | 2,5 | 2 | | | 0.71 € | | | B0120.204X12 | with thread lock | steel | 12 | 5 | M4 | 2,5 | 2 | | | 0.71 € | | | B0120.204X16 | with thread lock | steel | 16 | 5 | M4 | 2,5 | 2 | | | 0.71 € | | | B0120.205X5 | with thread lock | steel | 5 | 2 | M5 | 3,5 | 2,5 | | | 0.75 € | | | B0120.205X6 | with thread lock | steel | 6 | 3 | M5 | 3,5 | 2,5 | | | 0.75 € | | | B0120.205X8 | with thread lock | steel | 8 | 3,5 | M5 | 3,5 | 2,5 | | | 0.75 € | | | B0120.205X10 | with thread lock | steel | 10 | 3,5 | M5 | 3,5 | 2,5 | | | 0.75 € | | | B0120.205X12 | with thread lock | steel | 12 | 5 | M5 | 3,5 | 2,5 | | | 0.75 € | | | B0120.205X16 | with thread lock | steel | 16 | 6 | M5 | 3,5 | 2,5 | | | 0.75 € | | | B0120.206X6 | with thread lock | steel | 6 | 2,5 | M6 | 4 | 3 | | | 0.75 € | | | B0120.206X8 | with thread lock | steel | 8 | 3 | M6 | 4 | 3 | | | 0.75 € | | | B0120.206X10 | with thread lock | steel | 10 | 3,5 | M6 | 4 | 3 | | | 0.75 € | | | B0120.206X12 | with thread lock | steel | 12 | 5 | M6 | 4 | 3 | | | 0.75 € | | | B0120.206X16 | with thread lock | steel | 16 | 7 | M6 | 4 | 3 | | | 0.79 € | | | B0120.206X20 | with thread lock | steel | 20 | 7 | M6 | 4 | 3 | | | 0.79 € | | | B0120.208X8 | with thread lock | steel | 8 | 3 | M8 | 5,5 | 4 | | | 0.79 € | | | B0120.208X10 | with thread lock | steel | 10 | 3,5 | M8 | 5,5 | 4 | | | 0.79 € | | | B0120.208X12 | with thread lock | steel | 12 | 5 | M8 | 5,5 | 4 | | | 0.79 € | | | B0120.208X16 | with thread lock | steel | 16 | 8 | M8 | 5,5 | 4 | | | 0.79 € | | | B0120.208X20 | with thread lock | steel | 20 | 8 | M8 | 5,5 | 4 | | | 0.79 € | | | B0120.210X10 | with thread lock | steel | 10 | 5 | M10 | 7 | 5 | | | 0.82 € | | | B0120.210X12 | with thread lock | steel | 12 | 5 | M10 | 7 | 5 | | | 0.82 € | | | B0120.210X16 | with thread lock | steel | 16 | 9 | M10 | 7 | 5 | | | 0.82 € | | | B0120.210X20 | with thread lock | steel | 20 | 9 | M10 | 7 | 5 | | | 0.82 € | | | B0120.303X5 | with thread lock | stainless steel | 5 | 2 | M3 | 2 | 1,5 | | | 1.22 € | | | B0120.303X6 | with thread lock | stainless steel | 6 | 3 | M3 | 2 | 1,5 | | | 1.22 € | | | B0120.303X8 | with thread lock | stainless steel | 8 | 4 | M3 | 2 | 1,5 | | | 1.22 € | | | B0120.303X10 | with thread lock | stainless steel | 10 | 4 | M3 | 2 | 1,5 | | | 1.22 € | | | B0120.303X12 | with thread lock | stainless steel | 12 | 4 | M3 | 2 | 1,5 | | | 1.22 € | | | B0120.304X5 | with thread lock | stainless steel | 5 | 2 | M4 | 2,5 | 2 | | | 1.22 € | | | B0120.304X6 | with thread lock | stainless steel | 6 | 2,5 | M4 | 2,5 | 2 | | | 1.22 € | | | B0120.304X8 | with thread lock | stainless steel | 8 | 3,5 | M4 | 2,5 | 2 | | | 1.22 € | | | B0120.304X10 | with thread lock | stainless steel | 10 | 5 | M4 | 2,5 | 2 | | | 1.22 € | | | B0120.304X12 | with thread lock | stainless steel | 12 | 5 | M4 | 2,5 | 2 | | | 1.22 € | | | B0120.304X16 | with thread lock | stainless steel | 16 | 5 | M4 | 2,5 | 2 | | | 1.22 € | | | B0120.305X5 | with thread lock | stainless steel | 5 | 2 | M5 | 3,5 | 2,5 | | | 1.26 € | | | B0120.305X6 | with thread lock | stainless steel | 6 | 3 | M5 | 3,5 | 2,5 | | | 1.26 € | | | B0120.305X8 | with thread lock | stainless steel | 8 | 3,5 | M5 | 3,5 | 2,5 | | | 1.26 € | | | B0120.305X10 | with thread lock | stainless steel | 10 | 3,5 | M5 | 3,5 | 2,5 | | | 1.26 € | | | B0120.305X12 | with thread lock | stainless steel | 12 | 5 | M5 | 3,5 | 2,5 | | | 1.26 € | | | B0120.305X16 | with thread lock | stainless steel | 16 | 6 | M5 | 3,5 | 2,5 | | | 1.26 € | | | B0120.306X6 | with thread lock | stainless steel | 6 | 2,5 | M6 | 4 | 3 | | | 1.26 € | | | B0120.306X8 | with thread lock | stainless steel | 8 | 3 | M6 | 4 | 3 | | | 1.26 € | | | B0120.306X10 | with thread lock | stainless steel | 10 | 3,5 | M6 | 4 | 3 | | | 1.26 € | | | B0120.306X12 | with thread lock | stainless steel | 12 | 5 | M6 | 4 | 3 | | | 1.28 € | | | B0120.306X16 | with thread lock | stainless steel | 16 | 7 | M6 | 4 | 3 | | | 1.28 € | | | B0120.308X8 | with thread lock | stainless steel | 8 | 3 | M8 | 5,5 | 4 | | | 1.28 € | | | B0120.306X20 | with thread lock | stainless steel | 20 | 7 | M6 | 4 | 3 | | | 1.28 € | | | B0120.308X10 | with thread lock | stainless steel | 10 | 3,5 | M8 | 5,5 | 4 | | | 1.28 € | | | B0120.308X12 | with thread lock | stainless steel | 12 | 5 | M8 | 5,5 | 4 | | | 1.28 € | | | B0120.308X16 | with thread lock | stainless steel | 16 | 8 | M8 | 5,5 | 4 | | | 1.28 € | | | B0120.308X20 | with thread lock | stainless steel | 20 | 8 | M8 | 5,5 | 4 | | | 1.28 € | | | B0120.310X10 | with thread lock | stainless steel | 10 | 5 | M10 | 7 | 5 | | | 1.30 € | | | B0120.310X12 | with thread lock | stainless steel | 12 | 5 | M10 | 7 | 5 | | | 1.30 € | | | B0120.310X16 | with thread lock | stainless steel | 16 | 9 | M10 | 7 | 5 | | | 1.30 € | | | B0120.310X20 | with thread lock | stainless steel | 20 | 9 | M10 | 7 | 5 | | | 1.30 € | |
|
