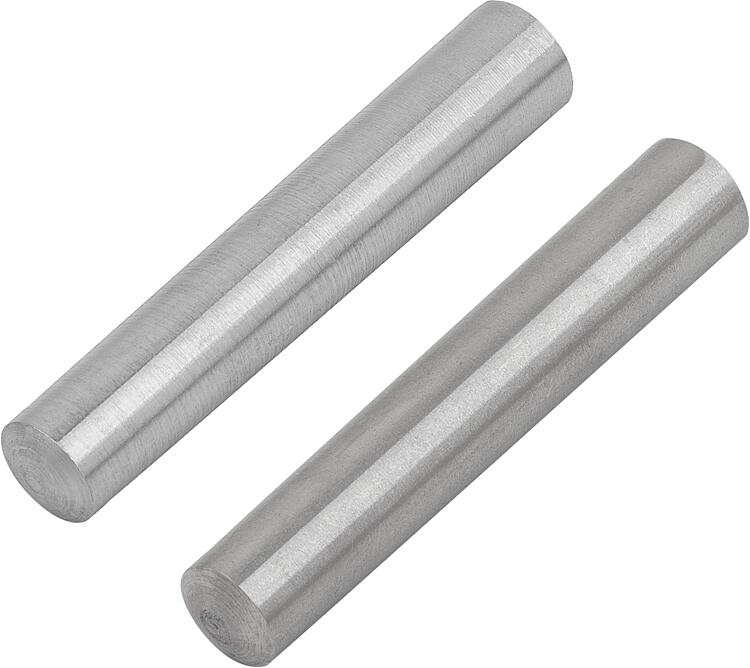

B0576Tapered pins ISO 2339, steel or stainless steel Form B |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel.Version:Bright.Note:The ISO 2339 tapered pins available in steel or stainless steel are essential components in machine construction. These pins fulfil the ISO 2339 international standards and offer a reliable connection solution for various applications in machines and systems. The steel or stainless steel materials ensure high strength and corrosion resistance, depending on the specific requirements of the application. The tapered Form B facilitates assembly and ensures a secure connection. These tapered pins offer high load-bearing capacity and durability to meet the demanding requirements of machine construction.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

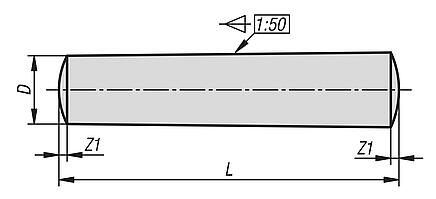

| Order No. | Form | Main
material | D
| L | Z1 | CAD | Acc. | Price | Order |
|---|
| B0576.0020010 | B | steel | 2 | 10 | 0,25 |  | | 0.27 € | | | B0576.0020012 | B | steel | 2 | 12 | 0,25 | | | 0.27 € | | | B0576.0020014 | B | steel | 2 | 14 | 0,25 | | | 0.28 € | | | B0576.0020016 | B | steel | 2 | 16 | 0,25 | | | 0.34 € | | | B0576.0020018 | B | steel | 2 | 18 | 0,25 | | | 0.16 € | | | B0576.0020020 | B | steel | 2 | 20 | 0,25 | | | 0.16 € | | | B0576.0020022 | B | steel | 2 | 22 | 0,25 | | | 0.20 € | | | B0576.0020024 | B | steel | 2 | 24 | 0,25 | | | 0.20 € | | | B0576.0020026 | B | steel | 2 | 26 | 0,25 | | | 0.21 € | | | B0576.0020028 | B | steel | 2 | 28 | 0,25 | | | 0.22 € | | | B0576.0020030 | B | steel | 2 | 30 | 0,25 | | | 0.23 € | | | B0576.0020032 | B | steel | 2 | 32 | 0,25 | | | 0.24 € | | | B0576.0020036 | B | steel | 2 | 36 | 0,25 | | | 0.24 € | | | B0576.0020040 | B | steel | 2 | 40 | 0,25 | | | 0.25 € | | | B0576.0020045 | B | steel | 2 | 45 | 0,25 | | | 0.26 € | | | B0576.0020050 | B | steel | 2 | 50 | 0,25 | | | 0.29 € | | | B0576.0025010 | B | steel | 2,5 | 10 | 0,3 | | | 0.18 € | | | B0576.0025012 | B | steel | 2,5 | 12 | 0,3 | | | 0.18 € | | | B0576.0025014 | B | steel | 2,5 | 14 | 0,3 | | | 0.18 € | | | B0576.0025016 | B | steel | 2,5 | 16 | 0,3 | | | 0.19 € | | | B0576.0025018 | B | steel | 2,5 | 18 | 0,3 | | | 0.22 € | | | B0576.0025020 | B | steel | 2,5 | 20 | 0,3 | | | 0.22 € | | | B0576.0025022 | B | steel | 2,5 | 22 | 0,3 | | | 0.22 € | | | B0576.0025024 | B | steel | 2,5 | 24 | 0,3 | | | 0.32 € | | | B0576.0025026 | B | steel | 2,5 | 26 | 0,3 | | | 0.24 € | | | B0576.0025028 | B | steel | 2,5 | 28 | 0,3 | | | 0.24 € | | | B0576.0025030 | B | steel | 2,5 | 30 | 0,3 | | | 0.25 € | | | B0576.0025032 | B | steel | 2,5 | 32 | 0,3 | | | 0.26 € | | | B0576.0025036 | B | steel | 2,5 | 36 | 0,3 | | | 0.27 € | | | B0576.0025040 | B | steel | 2,5 | 40 | 0,3 | | | 0.28 € | | | B0576.0025045 | B | steel | 2,5 | 45 | 0,3 | | | 0.31 € | | | B0576.0025050 | B | steel | 2,5 | 50 | 0,3 | | | 0.33 € | | | B0576.0025055 | B | steel | 2,5 | 55 | 0,3 | | | 0.44 € | | | B0576.0025060 | B | steel | 2,5 | 60 | 0,3 | | | 0.52 € | | | B0576.0030010 | B | steel | 3 | 10 | 0,4 | | | 0.19 € | | | B0576.0030012 | B | steel | 3 | 12 | 0,4 | | | 0.19 € | | | B0576.0030014 | B | steel | 3 | 14 | 0,4 | | | 0.20 € | | | B0576.0030016 | B | steel | 3 | 16 | 0,4 | | | 0.27 € | | | B0576.0030018 | B | steel | 3 | 18 | 0,4 | | | 0.21 € | | | B0576.0030020 | B | steel | 3 | 20 | 0,4 | | | 0.22 € | | | B0576.0030022 | B | steel | 3 | 22 | 0,4 | | | 0.23 € | | | B0576.0030024 | B | steel | 3 | 24 | 0,4 | | | 0.26 € | | | B0576.0030026 | B | steel | 3 | 26 | 0,4 | | | 0.26 € | | | B0576.0030028 | B | steel | 3 | 28 | 0,4 | | | 0.26 € | | | B0576.0030030 | B | steel | 3 | 30 | 0,4 | | | 0.27 € | | | B0576.0030032 | B | steel | 3 | 32 | 0,4 | | | 0.28 € | | | B0576.0030036 | B | steel | 3 | 36 | 0,4 | | | 0.29 € | | | B0576.0030040 | B | steel | 3 | 40 | 0,4 | | | 0.32 € | | | B0576.0030045 | B | steel | 3 | 45 | 0,4 | | | 0.33 € | | | B0576.0030050 | B | steel | 3 | 50 | 0,4 | | | 0.38 € | | | B0576.0030055 | B | steel | 3 | 55 | 0,4 | | | 0.45 € | | | B0576.0030060 | B | steel | 3 | 60 | 0,4 | | | 0.46 € | | | B0576.0040010 | B | steel | 4 | 10 | 0,5 | | | 0.19 € | | | B0576.0040012 | B | steel | 4 | 12 | 0,5 | | | 0.20 € | | | B0576.0040014 | B | steel | 4 | 14 | 0,5 | | | 0.22 € | | | B0576.0040016 | B | steel | 4 | 16 | 0,5 | | | 0.22 € | | | B0576.0040018 | B | steel | 4 | 18 | 0,5 | | | 0.24 € | | | B0576.0040020 | B | steel | 4 | 20 | 0,5 | | | 0.26 € | | | B0576.0040022 | B | steel | 4 | 22 | 0,5 | | | 0.26 € | | | B0576.0040024 | B | steel | 4 | 24 | 0,5 | | | 0.27 € | | | B0576.0040026 | B | steel | 4 | 26 | 0,5 | | | 0.27 € | | | B0576.0040028 | B | steel | 4 | 28 | 0,5 | | | 0.30 € | | | B0576.0040030 | B | steel | 4 | 30 | 0,5 | | | 0.32 € | | | B0576.0040032 | B | steel | 4 | 32 | 0,5 | | | 0.36 € | | | B0576.0040036 | B | steel | 4 | 36 | 0,5 | | | 0.36 € | | | B0576.0040040 | B | steel | 4 | 40 | 0,5 | | | 0.38 € | | | B0576.0040045 | B | steel | 4 | 45 | 0,5 | | | 0.43 € | | | B0576.0040050 | B | steel | 4 | 50 | 0,5 | | | 0.44 € | | | B0576.0040055 | B | steel | 4 | 55 | 0,5 | | | 0.47 € | | | B0576.0040060 | B | steel | 4 | 60 | 0,5 | | | 0.76 € | | | B0576.0040070 | B | steel | 4 | 70 | 0,5 | | | 0.76 € | | | B0576.0040080 | B | steel | 4 | 80 | 0,5 | | | 0.77 € | | | B0576.0040090 | B | steel | 4 | 90 | 0,5 | | | 0.81 € | | | B0576.0040100 | B | steel | 4 | 100 | 0,5 | | | 0.90 € | | | B0576.0050014 | B | steel | 5 | 14 | 0,63 | | | 0.22 € | | | B0576.0050016 | B | steel | 5 | 16 | 0,63 | | | 0.25 € | | | B0576.0050018 | B | steel | 5 | 18 | 0,63 | | | 0.25 € | | | B0576.0050020 | B | steel | 5 | 20 | 0,63 | | | 0.28 € | | | B0576.0050022 | B | steel | 5 | 22 | 0,63 | | | 0.28 € | | | B0576.0050024 | B | steel | 5 | 24 | 0,63 | | | 0.30 € | | | B0576.0050026 | B | steel | 5 | 26 | 0,63 | | | 0.31 € | | | B0576.0050028 | B | steel | 5 | 28 | 0,63 | | | 0.32 € | | | B0576.0050030 | B | steel | 5 | 30 | 0,63 | | | 0.36 € | | | B0576.0050032 | B | steel | 5 | 32 | 0,63 | | | 0.36 € | | | B0576.0050036 | B | steel | 5 | 36 | 0,63 | | | 0.39 € | | | B0576.0050040 | B | steel | 5 | 40 | 0,63 | | | 0.43 € | | | B0576.0050045 | B | steel | 5 | 45 | 0,63 | | | 0.45 € | | | B0576.0050050 | B | steel | 5 | 50 | 0,63 | | | 0.49 € | | | B0576.0050055 | B | steel | 5 | 55 | 0,63 | | | 0.50 € | | | B0576.0050060 | B | steel | 5 | 60 | 0,63 | | | 0.60 € | | | B0576.0050065 | B | steel | 5 | 65 | 0,63 | | | 0.67 € | | | B0576.0050070 | B | steel | 5 | 70 | 0,63 | | | 0.69 € | | | B0576.0050080 | B | steel | 5 | 80 | 0,63 | | | 0.79 € | | | B0576.0050090 | B | steel | 5 | 90 | 0,63 | | | 0.85 € | | | B0576.0050100 | B | steel | 5 | 100 | 0,63 | | | 0.91 € | | | B0576.0060020 | B | steel | 6 | 20 | 0,8 | | | 0.50 € | | | B0576.0060022 | B | steel | 6 | 22 | 0,8 | | | 0.32 € | | | B0576.0060024 | B | steel | 6 | 24 | 0,8 | | | 0.34 € | | | B0576.0060026 | B | steel | 6 | 26 | 0,8 | | | 0.40 € | | | B0576.0060028 | B | steel | 6 | 28 | 0,8 | | | 0.42 € | | | B0576.0060030 | B | steel | 6 | 30 | 0,8 | | | 0.46 € | | | B0576.0060032 | B | steel | 6 | 32 | 0,8 | | | 0.47 € | | | B0576.0060036 | B | steel | 6 | 36 | 0,8 | | | 0.50 € | | | B0576.0060040 | B | steel | 6 | 40 | 0,8 | | | 0.53 € | | | B0576.0060045 | B | steel | 6 | 45 | 0,8 | | | 0.63 € | | | B0576.0060050 | B | steel | 6 | 50 | 0,8 | | | 0.63 € | | | B0576.0060055 | B | steel | 6 | 55 | 0,8 | | | 0.65 € | | | B0576.0060060 | B | steel | 6 | 60 | 0,8 | | | 0.76 € | | | B0576.0060070 | B | steel | 6 | 70 | 0,8 | | | 0.84 € | | | B0576.0060080 | B | steel | 6 | 80 | 0,8 | | | 0.92 € | | | B0576.0060090 | B | steel | 6 | 90 | 0,8 | | | 1.00 € | | | B0576.0060100 | B | steel | 6 | 100 | 0,8 | | | 1.27 € | | | B0576.0060110 | B | steel | 6 | 110 | 0,8 | | | 1.94 € | | | B0576.0060120 | B | steel | 6 | 120 | 0,8 | | | 1.97 € | | | B0576.0060130 | B | steel | 6 | 130 | 0,8 | | | 2.44 € | | | B0576.0080024 | B | steel | 8 | 24 | 1 | | | 0.52 € | | | B0576.0080026 | B | steel | 8 | 26 | 1 | | | 0.57 € | | | B0576.0080028 | B | steel | 8 | 28 | 1 | | | 0.58 € | | | B0576.0080030 | B | steel | 8 | 30 | 1 | | | 0.62 € | | | B0576.0080032 | B | steel | 8 | 32 | 1 | | | 0.68 € | | | B0576.0080036 | B | steel | 8 | 36 | 1 | | | 0.77 € | | | B0576.0080040 | B | steel | 8 | 40 | 1 | | | 0.95 € | | | B0576.0080045 | B | steel | 8 | 45 | 1 | | | 0.76 € | | | B0576.0080050 | B | steel | 8 | 50 | 1 | | | 0.96 € | | | B0576.0080055 | B | steel | 8 | 55 | 1 | | | 1.05 € | | | B0576.0080060 | B | steel | 8 | 60 | 1 | | | 1.17 € | | | B0576.0080070 | B | steel | 8 | 70 | 1 | | | 1.95 € | | | B0576.0080080 | B | steel | 8 | 80 | 1 | | | 1.40 € | | | B0576.0080090 | B | steel | 8 | 90 | 1 | | | 1.62 € | | | B0576.0080100 | B | steel | 8 | 100 | 1 | | | 1.93 € | | | B0576.0080110 | B | steel | 8 | 110 | 1 | | | 2.21 € | | | B0576.0080120 | B | steel | 8 | 120 | 1 | | | 2.38 € | | | B0576.0080130 | B | steel | 8 | 130 | 1 | | | 3.05 € | | | B0576.0080140 | B | steel | 8 | 140 | 1 | | | 3.27 € | | | B0576.0080150 | B | steel | 8 | 150 | 1 | | | 3.96 € | | | B0576.0100028 | B | steel | 10 | 28 | 1,2 | | | 0.87 € | | | B0576.0100030 | B | steel | 10 | 30 | 1,2 | | | 0.98 € | | | B0576.0100032 | B | steel | 10 | 32 | 1,2 | | | 1.01 € | | | B0576.0100036 | B | steel | 10 | 36 | 1,2 | | | 1.03 € | | | B0576.0100040 | B | steel | 10 | 40 | 1,2 | | | 1.18 € | | | B0576.0100045 | B | steel | 10 | 45 | 1,2 | | | 1.22 € | | | B0576.0100050 | B | steel | 10 | 50 | 1,2 | | | 1.32 € | | | B0576.0100055 | B | steel | 10 | 55 | 1,2 | | | 1.64 € | | | B0576.0100060 | B | steel | 10 | 60 | 1,2 | | | 1.76 € | | | B0576.0100065 | B | steel | 10 | 65 | 1,2 | | | 1.93 € | | | B0576.0100070 | B | steel | 10 | 70 | 1,2 | | | 1.97 € | | | B0576.0100080 | B | steel | 10 | 80 | 1,2 | | | 2.22 € | | | B0576.0100090 | B | steel | 10 | 90 | 1,2 | | | 2.39 € | | | B0576.0100100 | B | steel | 10 | 100 | 1,2 | | | 2.78 € | | | B0576.0100110 | B | steel | 10 | 110 | 1,2 | | | 2.95 € | | | B0576.0100120 | B | steel | 10 | 120 | 1,2 | | | 3.19 € | | | B0576.0100130 | B | steel | 10 | 130 | 1,2 | | | 3.73 € | | | B0576.0100140 | B | steel | 10 | 140 | 1,2 | | | 3.76 € | | | B0576.0100150 | B | steel | 10 | 150 | 1,2 | | | 4.09 € | | | B0576.0120030 | B | steel | 12 | 30 | 1,6 | | | 1.25 € | | | B0576.0120032 | B | steel | 12 | 32 | 1,6 | | | 1.26 € | | | B0576.0120036 | B | steel | 12 | 36 | 1,6 | | | 1.31 € | | | B0576.0120040 | B | steel | 12 | 40 | 1,6 | | | 1.50 € | | | B0576.0120045 | B | steel | 12 | 45 | 1,6 | | | 1.64 € | | | B0576.0120050 | B | steel | 12 | 50 | 1,6 | | | 1.74 € | | | B0576.0120055 | B | steel | 12 | 55 | 1,6 | | | 1.90 € | | | B0576.0120060 | B | steel | 12 | 60 | 1,6 | | | 2.06 € | | | B0576.0120070 | B | steel | 12 | 70 | 1,6 | | | 2.56 € | | | B0576.0120080 | B | steel | 12 | 80 | 1,6 | | | 2.80 € | | | B0576.0120090 | B | steel | 12 | 90 | 1,6 | | | 2.93 € | | | B0576.0120100 | B | steel | 12 | 100 | 1,6 | | | 3.45 € | | | B0576.0120110 | B | steel | 12 | 110 | 1,6 | | | 4.14 € | | | B0576.0120120 | B | steel | 12 | 120 | 1,6 | | | 4.87 € | | | B0576.0120130 | B | steel | 12 | 130 | 1,6 | | | 5.59 € | | | B0576.0120140 | B | steel | 12 | 140 | 1,6 | | | 5.59 € | | | B0576.0120150 | B | steel | 12 | 150 | 1,6 | | | 6.26 € | | | B0576.0140040 | B | steel | 14 | 40 | 1,8 | | | 2.11 € | | | B0576.0140045 | B | steel | 14 | 45 | 1,8 | | | 2.34 € | | | B0576.0140050 | B | steel | 14 | 50 | 1,8 | | | 2.61 € | | | B0576.0140055 | B | steel | 14 | 55 | 1,8 | | | 2.79 € | | | B0576.0140060 | B | steel | 14 | 60 | 1,8 | | | 3.00 € | | | B0576.0140070 | B | steel | 14 | 70 | 1,8 | | | 3.39 € | | | B0576.0140080 | B | steel | 14 | 80 | 1,8 | | | 3.90 € | | | B0576.0140090 | B | steel | 14 | 90 | 1,8 | | | 4.21 € | | | B0576.0140100 | B | steel | 14 | 100 | 1,8 | | | 5.10 € | | | B0576.0140110 | B | steel | 14 | 110 | 1,8 | | | 5.70 € | | | B0576.0140120 | B | steel | 14 | 120 | 1,8 | | | 6.25 € | | | B0576.0140130 | B | steel | 14 | 130 | 1,8 | | | 7.39 € | | | B0576.0140140 | B | steel | 14 | 140 | 1,8 | | | 7.85 € | | | B0576.0140150 | B | steel | 14 | 150 | 1,8 | | | 8.90 € | | | B0576.0160040 | B | steel | 16 | 40 | 2 | | | 2.95 € | | | B0576.0160045 | B | steel | 16 | 45 | 2 | | | 3.14 € | | | B0576.0160050 | B | steel | 16 | 50 | 2 | | | 3.35 € | | | B0576.0160055 | B | steel | 16 | 55 | 2 | | | 3.63 € | | | B0576.0160060 | B | steel | 16 | 60 | 2 | | | 3.81 € | | | B0576.0160070 | B | steel | 16 | 70 | 2 | | | 4.49 € | | | B0576.0160080 | B | steel | 16 | 80 | 2 | | | 4.88 € | | | B0576.0160090 | B | steel | 16 | 90 | 2 | | | 5.39 € | | | B0576.0160100 | B | steel | 16 | 100 | 2 | | | 6.06 € | | | B0576.0160110 | B | steel | 16 | 110 | 2 | | | 6.60 € | | | B0576.0160120 | B | steel | 16 | 120 | 2 | | | 7.22 € | | | B0576.0160130 | B | steel | 16 | 130 | 2 | | | 8.32 € | | | B0576.0160140 | B | steel | 16 | 140 | 2 | | | 9.08 € | | | B0576.0160150 | B | steel | 16 | 150 | 2 | | | 10.66 € | | | B0576.0160165 | B | steel | 16 | 165 | 2 | | | 15.39 € | | | B0576.0160180 | B | steel | 16 | 180 | 2 | | | 16.22 € | | | B0576.1020010 | B | stainless steel | 2 | 10 | 0,25 | | | 0.81 € | | | B0576.1020012 | B | stainless steel | 2 | 12 | 0,25 | | | 0.85 € | | | B0576.1020014 | B | stainless steel | 2 | 14 | 0,25 | | | 0.94 € | | | B0576.1020016 | B | stainless steel | 2 | 16 | 0,25 | | | 0.98 € | | | B0576.1020018 | B | stainless steel | 2 | 18 | 0,25 | | | 1.03 € | | | B0576.1020020 | B | stainless steel | 2 | 20 | 0,25 | | | 1.07 € | | | B0576.1020022 | B | stainless steel | 2 | 22 | 0,25 | | | 1.12 € | | | B0576.1020024 | B | stainless steel | 2 | 24 | 0,25 | | | 1.17 € | | | B0576.1020026 | B | stainless steel | 2 | 26 | 0,25 | | | 1.23 € | | | B0576.1020028 | B | stainless steel | 2 | 28 | 0,25 | | | 1.27 € | | | B0576.1020030 | B | stainless steel | 2 | 30 | 0,25 | | | 1.33 € | | | B0576.1020032 | B | stainless steel | 2 | 32 | 0,25 | | | 1.35 € | | | B0576.1020036 | B | stainless steel | 2 | 36 | 0,25 | | | 1.63 € | | | B0576.1025012 | B | stainless steel | 2,5 | 12 | 0,3 | | | 0.68 € | | | B0576.1025014 | B | stainless steel | 2,5 | 14 | 0,3 | | | 0.68 € | | | B0576.1025016 | B | stainless steel | 2,5 | 16 | 0,3 | | | 0.73 € | | | B0576.1025018 | B | stainless steel | 2,5 | 18 | 0,3 | | | 0.79 € | | | B0576.1025020 | B | stainless steel | 2,5 | 20 | 0,3 | | | 0.83 € | | | B0576.1025022 | B | stainless steel | 2,5 | 22 | 0,3 | | | 0.87 € | | | B0576.1025024 | B | stainless steel | 2,5 | 24 | 0,3 | | | 0.97 € | | | B0576.1025026 | B | stainless steel | 2,5 | 26 | 0,3 | | | 1.01 € | | | B0576.1025028 | B | stainless steel | 2,5 | 28 | 0,3 | | | 1.05 € | | | B0576.1025030 | B | stainless steel | 2,5 | 30 | 0,3 | | | 1.10 € | | | B0576.1025032 | B | stainless steel | 2,5 | 32 | 0,3 | | | 1.16 € | | | B0576.1025036 | B | stainless steel | 2,5 | 36 | 0,3 | | | 1.23 € | | | B0576.1030012 | B | stainless steel | 3 | 12 | 0,4 | | | 0.69 € | | | B0576.1030014 | B | stainless steel | 3 | 14 | 0,4 | | | currently not available | | | B0576.1030016 | B | stainless steel | 3 | 16 | 0,4 | | | 0.74 € | | | B0576.1030018 | B | stainless steel | 3 | 18 | 0,4 | | | 0.81 € | | | B0576.1030020 | B | stainless steel | 3 | 20 | 0,4 | | | 0.93 € | | | B0576.1030022 | B | stainless steel | 3 | 22 | 0,4 | | | 1.03 € | | | B0576.1030024 | B | stainless steel | 3 | 24 | 0,4 | | | 1.14 € | | | B0576.1030026 | B | stainless steel | 3 | 26 | 0,4 | | | 1.23 € | | | B0576.1030028 | B | stainless steel | 3 | 28 | 0,4 | | | 1.28 € | | | B0576.1030030 | B | stainless steel | 3 | 30 | 0,4 | | | 1.38 € | | | B0576.1030032 | B | stainless steel | 3 | 32 | 0,4 | | | 1.44 € | | | B0576.1030036 | B | stainless steel | 3 | 36 | 0,4 | | | 1.49 € | | | B0576.1030040 | B | stainless steel | 3 | 40 | 0,4 | | | 1.57 € | | | B0576.1030045 | B | stainless steel | 3 | 45 | 0,4 | | | 1.69 € | | | B0576.1030050 | B | stainless steel | 3 | 50 | 0,4 | | | 1.78 € | | | B0576.1040018 | B | stainless steel | 4 | 18 | 0,5 | | | 1.12 € | | | B0576.1040020 | B | stainless steel | 4 | 20 | 0,5 | | | 1.22 € | | | B0576.1040022 | B | stainless steel | 4 | 22 | 0,5 | | | 1.35 € | | | B0576.1040024 | B | stainless steel | 4 | 24 | 0,5 | | | 1.49 € | | | B0576.1040026 | B | stainless steel | 4 | 26 | 0,5 | | | 1.60 € | | | B0576.1040028 | B | stainless steel | 4 | 28 | 0,5 | | | 1.70 € | | | B0576.1040030 | B | stainless steel | 4 | 30 | 0,5 | | | 1.82 € | | | B0576.1040032 | B | stainless steel | 4 | 32 | 0,5 | | | 1.94 € | | | B0576.1040036 | B | stainless steel | 4 | 36 | 0,5 | | | 2.12 € | | | B0576.1040040 | B | stainless steel | 4 | 40 | 0,5 | | | 2.33 € | | | B0576.1040045 | B | stainless steel | 4 | 45 | 0,5 | | | 2.58 € | | | B0576.1040050 | B | stainless steel | 4 | 50 | 0,5 | | | 2.78 € | | | B0576.1040055 | B | stainless steel | 4 | 55 | 0,5 | | | 3.00 € | | | B0576.1040060 | B | stainless steel | 4 | 60 | 0,5 | | | 3.31 € | | | B0576.1050020 | B | stainless steel | 5 | 20 | 0,63 | | | 1.66 € | | | B0576.1050022 | B | stainless steel | 5 | 22 | 0,63 | | | 1.79 € | | | B0576.1050024 | B | stainless steel | 5 | 24 | 0,63 | | | 1.83 € | | | B0576.1050026 | B | stainless steel | 5 | 26 | 0,63 | | | 2.03 € | | | B0576.1050028 | B | stainless steel | 5 | 28 | 0,63 | | | 2.13 € | | | B0576.1050030 | B | stainless steel | 5 | 30 | 0,63 | | | 2.32 € | | | B0576.1050032 | B | stainless steel | 5 | 32 | 0,63 | | | 2.37 € | | | B0576.1050036 | B | stainless steel | 5 | 36 | 0,63 | | | 2.70 € | | | B0576.1050040 | B | stainless steel | 5 | 40 | 0,63 | | | 2.83 € | | | B0576.1050045 | B | stainless steel | 5 | 45 | 0,63 | | | 3.20 € | | | B0576.1050050 | B | stainless steel | 5 | 50 | 0,63 | | | 3.35 € | | | B0576.1050055 | B | stainless steel | 5 | 55 | 0,63 | | | 3.49 € | | | B0576.1050060 | B | stainless steel | 5 | 60 | 0,63 | | | 3.79 € | | | B0576.1050070 | B | stainless steel | 5 | 70 | 0,63 | | | 4.13 € | | | B0576.1060024 | B | stainless steel | 6 | 24 | 0,8 | | | 2.43 € | | | B0576.1060026 | B | stainless steel | 6 | 26 | 0,8 | | | 2.56 € | | | B0576.1060028 | B | stainless steel | 6 | 28 | 0,8 | | | 2.65 € | | | B0576.1060030 | B | stainless steel | 6 | 30 | 0,8 | | | 2.80 € | | | B0576.1060032 | B | stainless steel | 6 | 32 | 0,8 | | | 2.97 € | | | B0576.1060036 | B | stainless steel | 6 | 36 | 0,8 | | | 3.16 € | | | B0576.1060040 | B | stainless steel | 6 | 40 | 0,8 | | | 3.45 € | | | B0576.1060045 | B | stainless steel | 6 | 45 | 0,8 | | | 3.83 € | | | B0576.1060050 | B | stainless steel | 6 | 50 | 0,8 | | | 4.06 € | | | B0576.1060055 | B | stainless steel | 6 | 55 | 0,8 | | | 4.68 € | | | B0576.1060060 | B | stainless steel | 6 | 60 | 0,8 | | | 5.02 € | | | B0576.1060070 | B | stainless steel | 6 | 70 | 0,8 | | | 5.61 € | | | B0576.1080028 | B | stainless steel | 8 | 28 | 1 | | | 4.14 € | | | B0576.1080030 | B | stainless steel | 8 | 30 | 1 | | | 4.80 € | | | B0576.1080032 | B | stainless steel | 8 | 32 | 1 | | | 5.14 € | | | B0576.1080036 | B | stainless steel | 8 | 36 | 1 | | | 5.89 € | | | B0576.1080040 | B | stainless steel | 8 | 40 | 1 | | | 6.41 € | | | B0576.1080045 | B | stainless steel | 8 | 45 | 1 | | | 6.86 € | | | B0576.1080050 | B | stainless steel | 8 | 50 | 1 | | | 7.55 € | | | B0576.1080055 | B | stainless steel | 8 | 55 | 1 | | | 8.32 € | | | B0576.1080060 | B | stainless steel | 8 | 60 | 1 | | | 9.04 € | | | B0576.1080070 | B | stainless steel | 8 | 70 | 1 | | | 9.66 € | | | B0576.1080080 | B | stainless steel | 8 | 80 | 1 | | | 10.45 € | | | B0576.1080090 | B | stainless steel | 8 | 90 | 1 | | | 11.39 € | | | B0576.1080100 | B | stainless steel | 8 | 100 | 1 | | | 12.24 € | | | B0576.1100032 | B | stainless steel | 10 | 32 | 1,2 | | | 6.81 € | | | B0576.1100036 | B | stainless steel | 10 | 36 | 1,2 | | | 7.50 € | | | B0576.1100040 | B | stainless steel | 10 | 40 | 1,2 | | | 7.80 € | | | B0576.1100045 | B | stainless steel | 10 | 45 | 1,2 | | | 8.22 € | | | B0576.1100050 | B | stainless steel | 10 | 50 | 1,2 | | | 8.50 € | | | B0576.1100055 | B | stainless steel | 10 | 55 | 1,2 | | | 9.53 € | | | B0576.1100060 | B | stainless steel | 10 | 60 | 1,2 | | | 10.41 € | | | B0576.1100070 | B | stainless steel | 10 | 70 | 1,2 | | | 11.45 € | | | B0576.1100080 | B | stainless steel | 10 | 80 | 1,2 | | | 12.24 € | | | B0576.1100090 | B | stainless steel | 10 | 90 | 1,2 | | | 13.92 € | | | B0576.1100100 | B | stainless steel | 10 | 100 | 1,2 | | | 15.07 € | |
