B0099Hexagon head bolts with flange DIN EN 1665 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 8.8, electro zinc-plated.
Steel grade 10.9, electro zinc-plated.
Bright stainless steel. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

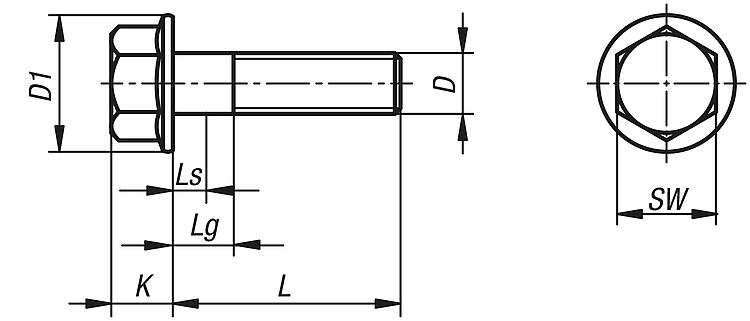

| Order No. | Main
material | Grade | D
| L | Ls
min. | Lg
max. | D1 | SW | K | Status | CAD | Acc. | Price | Order |
|---|
| B0099.406X12 | steel | 8.8 | M6 | 12 | 0 | 0 | 14,2 | 10 | 6,6 | |  | | 0.40 € | | | B0099.406X16 | steel | 8.8 | M6 | 16 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.30 € | | | B0099.406X20 | steel | 8.8 | M6 | 20 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.30 € | | | B0099.406X25 | steel | 8.8 | M6 | 25 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.30 € | | | B0099.406X30 | steel | 8.8 | M6 | 30 | 7 | 12 | 14,2 | 10 | 6,6 | | | | 0.34 € | | | B0099.408X12 | steel | 8.8 | M8 | 12 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.35 € | | | B0099.408X16 | steel | 8.8 | M8 | 16 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.38 € | | | B0099.408X20 | steel | 8.8 | M8 | 20 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.38 € | | | B0099.408X25 | steel | 8.8 | M8 | 25 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.38 € | | | B0099.408X30 | steel | 8.8 | M8 | 30 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.38 € | | | B0099.408X35 | steel | 8.8 | M8 | 35 | 6,75 | 13 | 18 | 13 | 8,1 | | | | 0.40 € | | | B0099.408X40 | steel | 8.8 | M8 | 40 | 11,75 | 18 | 18 | 13 | 8,1 | | | | 0.44 € | | | B0099.408X50 | steel | 8.8 | M8 | 50 | 21,75 | 28 | 18 | 13 | 8,1 | | | | 0.50 € | | | B0099.408X60 | steel | 8.8 | M8 | 60 | 31,75 | 38 | 18 | 13 | 8,1 | | | | 0.60 € | | | B0099.410X20 | steel | 8.8 | M10 | 20 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 0.65 € | | | B0099.410X25 | steel | 8.8 | M10 | 25 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 0.71 € | | | B0099.410X30 | steel | 8.8 | M10 | 30 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 0.75 € | | | B0099.410X35 | steel | 8.8 | M10 | 35 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 0.90 € | | | B0099.410X40 | steel | 8.8 | M10 | 40 | 6,5 | 14 | 22,3 | 16 | 10,4 | | | | 0.90 € | | | B0099.410X50 | steel | 8.8 | M10 | 50 | 16,5 | 24 | 22,3 | 16 | 10,4 | | | | 0.90 € | | | B0099.412X20 | steel | 8.8 | M12 | 20 | 0 | 0 | 26,6 | 18 | 11,8 | | | | 0.92 € | | | B0099.412X25 | steel | 8.8 | M12 | 25 | 0 | 0 | 26,6 | 18 | 11,8 | | | | 0.95 € | | | B0099.412X30 | steel | 8.8 | M12 | 30 | 0 | 0 | 26,6 | 18 | 11,8 | | | | 0.99 € | | | B0099.412X40 | steel | 8.8 | M12 | 40 | 0 | 0 | 26,6 | 18 | 11,8 | | | | 1.12 € | | | B0099.412X50 | steel | 8.8 | M12 | 50 | 11,25 | 20 | 26,6 | 18 | 11,8 | | | | 2.65 € | | | B0099.416X30 | steel | 8.8 | M16 | 30 | 0 | 0 | 35 | 24 | 15,4 | | | | 1.81 € | | | B0099.416X35 | steel | 8.8 | M16 | 35 | 0 | 0 | 35 | 24 | 15,4 | | | | 1.96 € | | | B0099.416X40 | steel | 8.8 | M16 | 40 | 0 | 0 | 35 | 24 | 15,4 | | | | 2.12 € | | | B0099.416X50 | steel | 8.8 | M16 | 50 | 0 | 0 | 35 | 24 | 15,4 | | | | 2.26 € | | | B0099.416X70 | steel | 8.8 | M16 | 70 | 22 | 32 | 35 | 24 | 15,4 | | | | 3.18 € | | | B0099.506X12 | steel | 10.9 | M6 | 12 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.50 € | | | B0099.506X16 | steel | 10.9 | M6 | 16 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.40 € | | | B0099.506X20 | steel | 10.9 | M6 | 20 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.40 € | | | B0099.506X25 | steel | 10.9 | M6 | 25 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.40 € | | | B0099.506X30 | steel | 10.9 | M6 | 30 | 7 | 12 | 14,2 | 10 | 6,6 | | | | 0.48 € | | | B0099.508X12 | steel | 10.9 | M8 | 12 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.49 € | | | B0099.508X16 | steel | 10.9 | M8 | 16 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.54 € | | | B0099.508X20 | steel | 10.9 | M8 | 20 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.54 € | | | B0099.508X25 | steel | 10.9 | M8 | 25 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.54 € | | | B0099.508X30 | steel | 10.9 | M8 | 30 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.55 € | | | B0099.508X35 | steel | 10.9 | M8 | 35 | 6,75 | 13 | 18 | 13 | 8,1 | | | | 0.57 € | | | B0099.508X40 | steel | 10.9 | M8 | 40 | 11,75 | 18 | 18 | 13 | 8,1 | | | | 0.62 € | | | B0099.510X25 | steel | 10.9 | M10 | 25 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 0.98 € | | | B0099.510X30 | steel | 10.9 | M10 | 30 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 1.04 € | | | B0099.510X40 | steel | 10.9 | M10 | 40 | 6,5 | 14 | 22,3 | 16 | 10,4 | | | | 1.21 € | | | B0099.512X20 | steel | 10.9 | M12 | 20 | 0 | 0 | 26,6 | 18 | 11,8 | | | | on request | | | B0099.512X35 | steel | 10.9 | M12 | 35 | 0 | 0 | 26,6 | 18 | 11,8 | | | | 1.51 € | | | B0099.512X40 | steel | 10.9 | M12 | 40 | 0 | 0 | 26,6 | 18 | 11,8 | | | | 1.56 € | | | B0099.512X45 | steel | 10.9 | M12 | 45 | 6,25 | 15 | 26,6 | 18 | 11,8 | | | | 1.95 € | | | B0099.512X50 | steel | 10.9 | M12 | 50 | 11,25 | 20 | 26,6 | 18 | 11,8 | | | | 2.91 € | | | B0099.516X30 | steel | 10.9 | M16 | 30 | 0 | 0 | 35 | 24 | 15,4 | | | | 2.54 € | | | B0099.516X35 | steel | 10.9 | M16 | 35 | 0 | 0 | 35 | 24 | 15,4 | | | | 2.75 € | | | B0099.516X40 | steel | 10.9 | M16 | 40 | 0 | 0 | 35 | 24 | 15,4 | | | | currently not available | | | B0099.516X45 | steel | 10.9 | M16 | 45 | 0 | 0 | 35 | 24 | 15,4 | expiring | | | 0.00 € | | | B0099.516X50 | steel | 10.9 | M16 | 50 | 0 | 0 | 35 | 24 | 15,4 | | | | 3.18 € | | | B0099.516X60 | steel | 10.9 | M16 | 60 | 12 | 22 | 35 | 24 | 15,4 | | | | 3.41 € | | | B0099.106X12 | stainless steel A2 | 70 | M6 | 12 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.50 € | | | B0099.106X16 | stainless steel A2 | 70 | M6 | 16 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.40 € | | | B0099.106X20 | stainless steel A2 | 70 | M6 | 20 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.40 € | | | B0099.106X25 | stainless steel A2 | 70 | M6 | 25 | 0 | 0 | 14,2 | 10 | 6,6 | | | | 0.40 € | | | B0099.106X30 | stainless steel A2 | 70 | M6 | 30 | 7 | 12 | 14,2 | 10 | 6,6 | | | | 0.48 € | | | B0099.108X16 | stainless steel A2 | 70 | M8 | 16 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.54 € | | | B0099.108X20 | stainless steel A2 | 70 | M8 | 20 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.54 € | | | B0099.108X25 | stainless steel A2 | 70 | M8 | 25 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.54 € | | | B0099.108X30 | stainless steel A2 | 70 | M8 | 30 | 0 | 0 | 18 | 13 | 8,1 | | | | 0.55 € | | | B0099.108X35 | stainless steel A2 | 70 | M8 | 35 | 6,75 | 13 | 18 | 13 | 8,1 | | | | 0.57 € | | | B0099.108X40 | stainless steel A2 | 70 | M8 | 40 | 11,75 | 18 | 18 | 13 | 8,1 | | | | 0.62 € | | | B0099.108X50 | stainless steel A2 | 70 | M8 | 50 | 21,75 | 28 | 18 | 13 | 8,1 | | | | 0.70 € | | | B0099.110X20 | stainless steel A2 | 70 | M10 | 20 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 0.75 € | | | B0099.110X25 | stainless steel A2 | 70 | M10 | 25 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 0.98 € | | | B0099.110X30 | stainless steel A2 | 70 | M10 | 30 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 1.04 € | | | B0099.110X35 | stainless steel A2 | 70 | M10 | 35 | 0 | 0 | 22,3 | 16 | 10,4 | | | | 1.12 € | | | B0099.110X40 | stainless steel A2 | 70 | M10 | 40 | 6,5 | 14 | 22,3 | 16 | 10,4 | | | | 1.21 € | | | B0099.110X50 | stainless steel A2 | 70 | M10 | 50 | 11,5 | 19 | 22,3 | 16 | 10,4 | | | | 1.26 € | | | B0099.110X60 | stainless steel A2 | 70 | M10 | 60 | 16,5 | 24 | 22,3 | 16 | 10,4 | | | | 1.32 € | |
