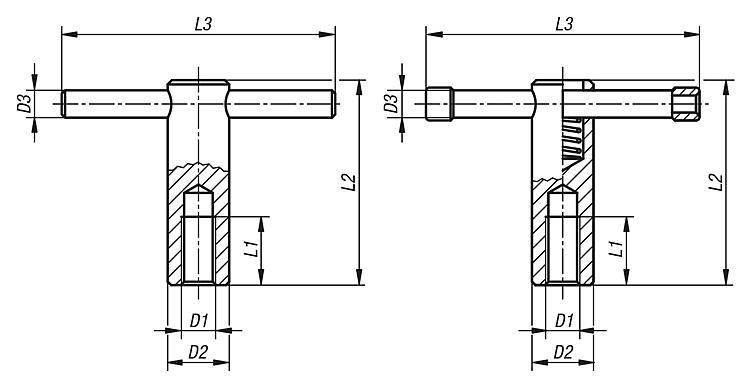

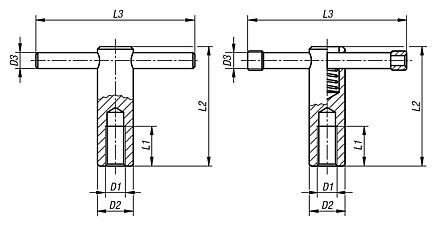

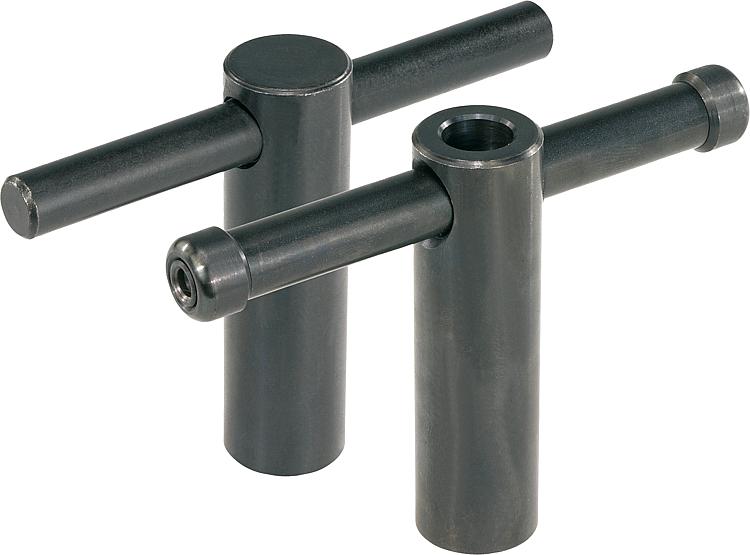

B0131Tommy bars with fixed or sliding T-bar, DIN 6305 or DIN 6307 |
go back |
|
|

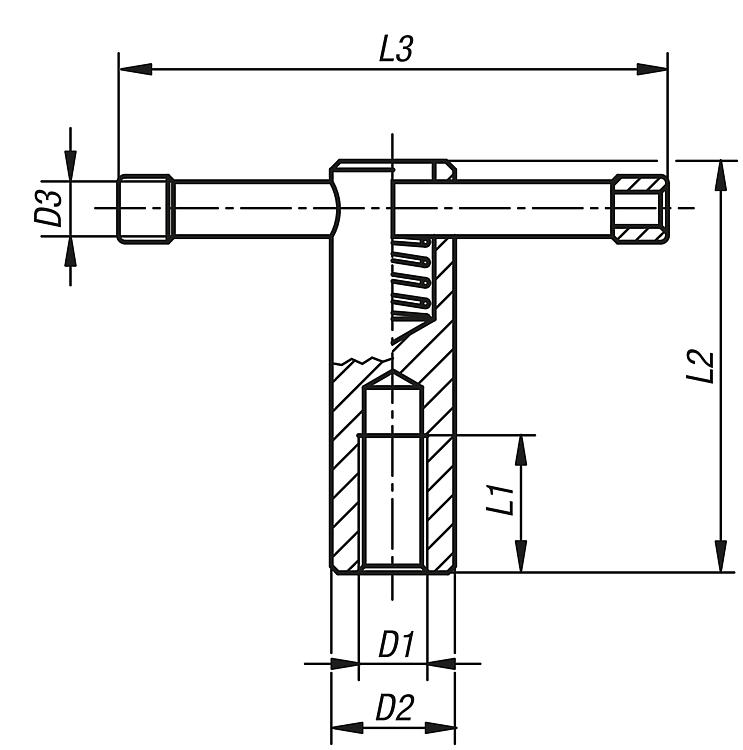

DescriptionMaterial:Steel.Version:Black oxidised.Note:By the version with sliding T-bar the bar is held in any desired position by a spring in the body. End stops prevent the bar falling out.

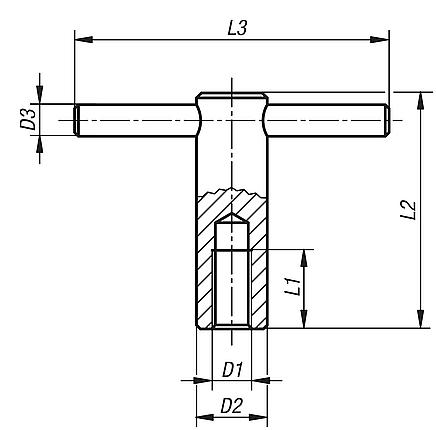

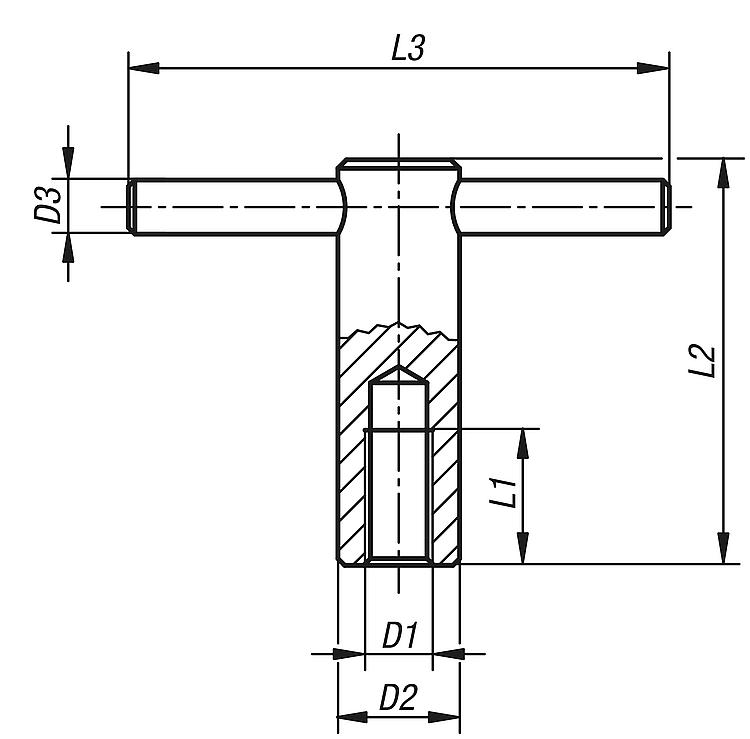

By the version with fixed T-bar the bar is pressed in. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
