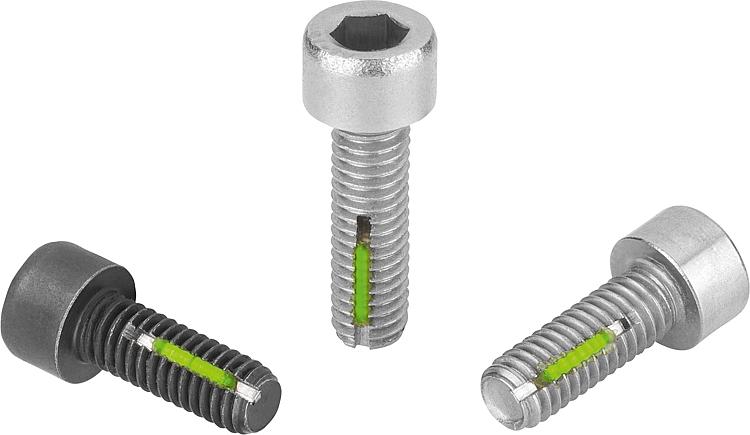

B0125Socket head screws DIN EN ISO 4762 with thread lock |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel (A 2).
Thread lock nylon.Version:Steel grade 8.8, black.

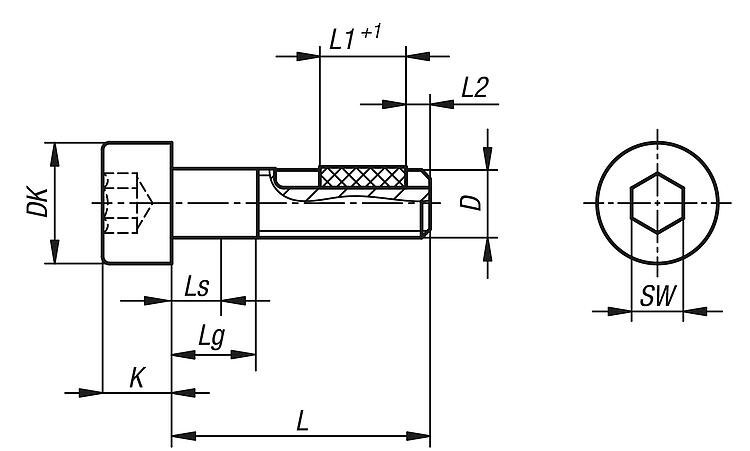

Stainless steel A2-70, bright.Drawing reference:L2 = approx. 2x thread pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Material
| D
| L | Ls
min. | Lg
max. | DK | K | L1 | SW | Tightening torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| B0125.804X10 | steel | M4 | 10 | 0 | 2,1 | 7 | 4 | 5 | 3 | 0,15 | 0,22 |  | | 0.33 € | | | B0125.804X12 | steel | M4 | 12 | 0 | 2,1 | 7 | 4 | 5 | 3 | 0,15 | 0,22 | | | 0.33 € | | | B0125.804X16 | steel | M4 | 16 | 0 | 2,1 | 7 | 4 | 6 | 3 | 0,15 | 0,22 | | | 0.33 € | | | B0125.804X20 | steel | M4 | 20 | 0 | 2,1 | 7 | 4 | 7 | 3 | 0,15 | 0,22 | | | 0.33 € | | | B0125.804X25 | steel | M4 | 25 | 0 | 2,1 | 7 | 4 | 7 | 3 | 0,15 | 0,22 | | | 0.33 € | | | B0125.805X10 | steel | M5 | 10 | 0 | 2,4 | 8,5 | 5 | 5 | 4 | 0,25 | 0,1 | | | 0.33 € | | | B0125.805X12 | steel | M5 | 12 | 0 | 2,4 | 8,5 | 5 | 6 | 4 | 0,25 | 0,1 | | | 0.33 € | | | B0125.805X16 | steel | M5 | 16 | 0 | 2,4 | 8,5 | 5 | 7 | 4 | 0,25 | 0,1 | | | 0.33 € | | | B0125.805X20 | steel | M5 | 20 | 0 | 2,4 | 8,5 | 5 | 7 | 4 | 0,25 | 0,1 | | | 0.33 € | | | B0125.805X25 | steel | M5 | 25 | 0 | 2,4 | 8,5 | 5 | 8 | 4 | 0,25 | 0,1 | | | 0.33 € | | | B0125.805X30 | steel | M5 | 30 | 4 | 8 | 8,5 | 5 | 8 | 4 | 0,25 | 0,1 | | | 0.33 € | | | B0125.805X40 | steel | M5 | 40 | 14 | 18 | 8,5 | 5 | 8 | 4 | 0,25 | 0,1 | | | 0.33 € | | | B0125.806X10 | steel | M6 | 10 | 0 | 3 | 10 | 6 | 5 | 5 | 0,45 | 0,25 | | | 0.33 € | | | B0125.806X12 | steel | M6 | 12 | 0 | 3 | 10 | 6 | 6 | 5 | 0,45 | 0,25 | | | 0.33 € | | | B0125.806X16 | steel | M6 | 16 | 0 | 3 | 10 | 6 | 7 | 5 | 0,45 | 0,25 | | | 0.33 € | | | B0125.806X20 | steel | M6 | 20 | 0 | 3 | 10 | 6 | 7 | 5 | 0,45 | 0,25 | | | 0.33 € | | | B0125.806X25 | steel | M6 | 25 | 0 | 3 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.33 € | | | B0125.806X30 | steel | M6 | 30 | 0 | 3 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.33 € | | | B0125.806X35 | steel | M6 | 35 | 6 | 11 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.33 € | | | B0125.806X40 | steel | M6 | 40 | 11 | 16 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.36 € | | | B0125.806X45 | steel | M6 | 45 | 16 | 21 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.36 € | | | B0125.806X50 | steel | M6 | 50 | 21 | 26 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.39 € | | | B0125.808X16 | steel | M8 | 16 | 0 | 3,75 | 13 | 8 | 7 | 6 | 0,8 | 0,4 | | | 0.35 € | | | B0125.808X20 | steel | M8 | 20 | 0 | 3,75 | 13 | 8 | 8 | 6 | 0,8 | 0,4 | | | 0.35 € | | | B0125.808X25 | steel | M8 | 25 | 0 | 3,75 | 13 | 8 | 8 | 6 | 0,8 | 0,4 | | | 0.38 € | | | B0125.808X30 | steel | M8 | 30 | 0 | 3,75 | 13 | 8 | 8 | 6 | 0,8 | 0,4 | | | 0.39 € | | | B0125.808X35 | steel | M8 | 35 | 0 | 3,75 | 13 | 8 | 10 | 6 | 0,8 | 0,4 | | | 0.39 € | | | B0125.808X40 | steel | M8 | 40 | 5,75 | 12 | 13 | 8 | 10 | 6 | 0,8 | 0,4 | | | 0.42 € | | | B0125.808X45 | steel | M8 | 45 | 10,75 | 17 | 13 | 8 | 10 | 6 | 0,8 | 0,4 | | | 0.42 € | | | B0125.810X25 | steel | M10 | 25 | 0 | 4,5 | 16 | 10 | 10 | 8 | 1,7 | 0,9 | | | 0.44 € | | | B0125.810X30 | steel | M10 | 30 | 0 | 4,5 | 16 | 10 | 10 | 8 | 1,7 | 0,9 | | | 0.44 € | | | B0125.810X40 | steel | M10 | 40 | 0 | 4,5 | 16 | 10 | 12 | 8 | 1,7 | 0,9 | | | 0.56 € | | | B0125.810X50 | steel | M10 | 50 | 10,5 | 18 | 16 | 10 | 12 | 8 | 1,7 | 0,9 | | | 0.59 € | | | B0125.812X30 | steel | M12 | 30 | 0 | 5,25 | 18 | 12 | 10 | 10 | 1,8 | 0,9 | | | 1.03 € | | | B0125.812X40 | steel | M12 | 40 | 0 | 5,25 | 18 | 12 | 12 | 10 | 1,8 | 0,9 | | | 1.16 € | | | B0125.812X50 | steel | M12 | 50 | 0 | 5,25 | 18 | 12 | 12 | 10 | 1,8 | 0,9 | | | 1.18 € | | | B0125.904X10 | stainless steel A2 | M4 | 10 | 0 | 2,1 | 7 | 4 | 5 | 3 | 0,15 | 0,22 | | | 0.39 € | | | B0125.904X12 | stainless steel A2 | M4 | 12 | 0 | 2,1 | 7 | 4 | 5 | 3 | 0,15 | 0,22 | | | 0.39 € | | | B0125.904X16 | stainless steel A2 | M4 | 16 | 0 | 2,1 | 7 | 4 | 6 | 3 | 0,15 | 0,22 | | | 0.39 € | | | B0125.904X20 | stainless steel A2 | M4 | 20 | 0 | 2,1 | 7 | 4 | 7 | 3 | 0,15 | 0,22 | | | 0.39 € | | | B0125.904X25 | stainless steel A2 | M4 | 25 | 0 | 2,1 | 7 | 4 | 7 | 3 | 0,15 | 0,22 | | | 0.42 € | | | B0125.905X10 | stainless steel A2 | M5 | 10 | 0 | 2,4 | 8,5 | 5 | 5 | 4 | 0,25 | 0,1 | | | 0.39 € | | | B0125.905X12 | stainless steel A2 | M5 | 12 | 0 | 2,4 | 8,5 | 5 | 6 | 4 | 0,25 | 0,1 | | | 0.39 € | | | B0125.905X16 | stainless steel A2 | M5 | 16 | 0 | 2,4 | 8,5 | 5 | 7 | 4 | 0,25 | 0,1 | | | 0.42 € | | | B0125.905X20 | stainless steel A2 | M5 | 20 | 0 | 2,4 | 8,5 | 5 | 7 | 4 | 0,25 | 0,1 | | | 0.42 € | | | B0125.905X25 | stainless steel A2 | M5 | 25 | 0 | 2,4 | 8,5 | 5 | 8 | 4 | 0,25 | 0,1 | | | 0.42 € | | | B0125.905X30 | stainless steel A2 | M5 | 30 | 4 | 8 | 8,5 | 5 | 8 | 4 | 0,25 | 0,1 | | | 0.42 € | | | B0125.905X40 | stainless steel A2 | M5 | 40 | 14 | 18 | 8,5 | 5 | 8 | 4 | 0,25 | 0,1 | | | 0.45 € | | | B0125.906X10 | stainless steel A2 | M6 | 10 | 0 | 3 | 10 | 6 | 5 | 5 | 0,45 | 0,25 | | | 0.42 € | | | B0125.906X12 | stainless steel A2 | M6 | 12 | 0 | 3 | 10 | 6 | 6 | 5 | 0,45 | 0,25 | | | 0.42 € | | | B0125.906X16 | stainless steel A2 | M6 | 16 | 0 | 3 | 10 | 6 | 7 | 5 | 0,45 | 0,25 | | | 0.42 € | | | B0125.906X20 | stainless steel A2 | M6 | 20 | 0 | 3 | 10 | 6 | 7 | 5 | 0,45 | 0,25 | | | 0.42 € | | | B0125.906X25 | stainless steel A2 | M6 | 25 | 0 | 3 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.45 € | | | B0125.906X30 | stainless steel A2 | M6 | 30 | 0 | 3 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.50 € | | | B0125.906X35 | stainless steel A2 | M6 | 35 | 6 | 11 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.50 € | | | B0125.906X40 | stainless steel A2 | M6 | 40 | 11 | 16 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.53 € | | | B0125.906X45 | stainless steel A2 | M6 | 45 | 16 | 21 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.56 € | | | B0125.906X50 | stainless steel A2 | M6 | 50 | 21 | 26 | 10 | 6 | 8 | 5 | 0,45 | 0,25 | | | 0.62 € | | | B0125.908X16 | stainless steel A2 | M8 | 16 | 0 | 3,75 | 13 | 8 | 7 | 6 | 0,8 | 0,4 | | | 0.61 € | | | B0125.908X20 | stainless steel A2 | M8 | 20 | 0 | 3,75 | 13 | 8 | 8 | 6 | 0,8 | 0,4 | | | 0.62 € | | | B0125.908X25 | stainless steel A2 | M8 | 25 | 0 | 3,75 | 13 | 8 | 8 | 6 | 0,8 | 0,4 | | | 0.65 € | | | B0125.908X30 | stainless steel A2 | M8 | 30 | 0 | 3,75 | 13 | 8 | 8 | 6 | 0,8 | 0,4 | | | 0.67 € | | | B0125.908X35 | stainless steel A2 | M8 | 35 | 0 | 3,75 | 13 | 8 | 10 | 6 | 0,8 | 0,4 | | | 0.71 € | | | B0125.908X40 | stainless steel A2 | M8 | 40 | 5,75 | 12 | 13 | 8 | 10 | 6 | 0,8 | 0,4 | | | 0.79 € | | | B0125.908X45 | stainless steel A2 | M8 | 45 | 10,75 | 17 | 13 | 8 | 10 | 6 | 0,8 | 0,4 | | | 0.83 € | | | B0125.910X25 | stainless steel A2 | M10 | 25 | 0 | 4,5 | 16 | 10 | 10 | 8 | 1,7 | 0,9 | | | 0.90 € | | | B0125.910X30 | stainless steel A2 | M10 | 30 | 0 | 4,5 | 16 | 10 | 10 | 8 | 1,7 | 0,9 | | | 0.90 € | | | B0125.910X40 | stainless steel A2 | M10 | 40 | 0 | 4,5 | 16 | 10 | 12 | 8 | 1,7 | 0,9 | | | 0.98 € | | | B0125.910X50 | stainless steel A2 | M10 | 50 | 10,5 | 18 | 16 | 10 | 12 | 8 | 1,7 | 0,9 | | | 0.98 € | | | B0125.912X30 | stainless steel A2 | M12 | 30 | 0 | 6 | 18 | 12 | 10 | 10 | 1,8 | 0,9 | | | 1.67 € | | | B0125.912X40 | stainless steel A2 | M12 | 40 | 0 | 6 | 18 | 12 | 12 | 10 | 1,8 | 0,9 | | | 1.96 € | | | B0125.912X50 | stainless steel A2 | M12 | 50 | 0 | 6 | 18 | 12 | 12 | 10 | 1,8 | 0,9 | | | 1.96 € | |
