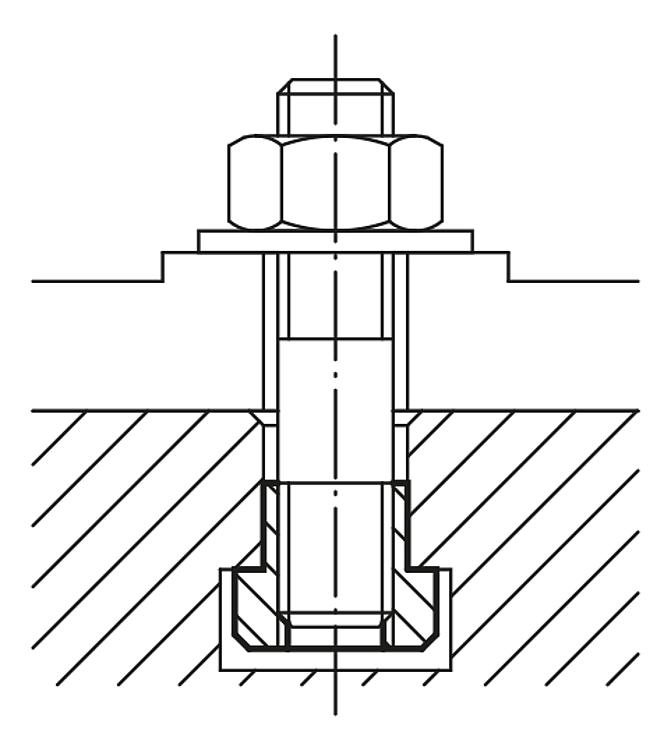

B0108Nuts for T-slots DIN 508 enhanced |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Carbon steel grade 10, EN AW-7075 or stainless steel 1.4571. Version:Steel tempered (black).
Aluminium and stainless steel bright.Note:Aluminium T-slot nuts have steel threaded inserts.
Strength of stainless steel version:
Rm = 700 N/mm², Rp0,2 = 450 N/mm².Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

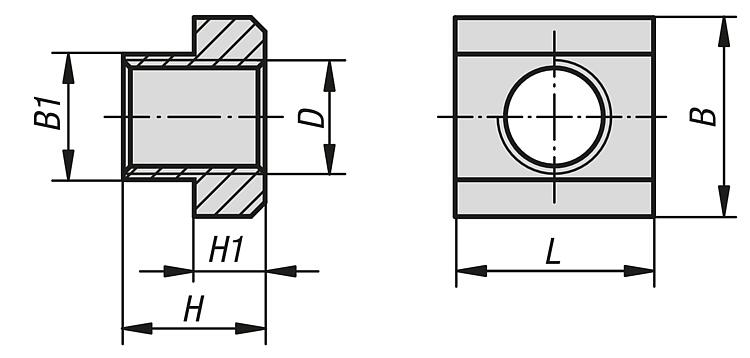

| Order No. | Main
material | Surface finish
body | Slot
width | B
| B1 | D | H | H1 | L | CAD | Acc. | Price | Order |
|---|
| B0108.05 | QT steel | tempered (black) | 6 | 10 | 5,6 | M5 | 8 | 4 | 10 |  | | 1.18 € | | | B0108.06 | QT steel | tempered (black) | 8 | 13 | 7,6 | M6 | 10 | 6 | 13 | | | 1.24 € | | | B0108.061 | QT steel | tempered (black) | 10 | 15 | 9,6 | M6 | 12 | 6 | 15 | | | 1.62 € | | | B0108.08 | QT steel | tempered (black) | 10 | 15 | 9,6 | M8 | 12 | 6 | 15 | | | 1.31 € | | | B0108.081 | QT steel | tempered (black) | 12 | 18 | 11,6 | M8 | 14 | 7 | 18 | | | 1.75 € | | | B0108.082 | QT steel | tempered (black) | 14 | 22 | 13,6 | M8 | 16 | 8 | 22 | | | 2.07 € | | | B0108.10 | QT steel | tempered (black) | 12 | 18 | 11,6 | M10 | 14 | 7 | 18 | | | 1.45 € | | | B0108.101 | QT steel | tempered (black) | 14 | 22 | 13,6 | M10 | 16 | 8 | 22 | | | 2.07 € | | | B0108.12 | QT steel | tempered (black) | 14 | 22 | 13,6 | M12 | 16 | 8 | 22 | | | 1.63 € | | | B0108.121 | QT steel | tempered (black) | 16 | 25 | 15,6 | M12 | 18 | 9 | 25 | | | 2.51 € | | | B0108.122 | QT steel | tempered (black) | 18 | 28 | 17,6 | M12 | 20 | 10 | 28 | | | 3.12 € | | | B0108.123 | QT steel | tempered (black) | 20 | 32 | 19,6 | M12 | 24 | 12 | 32 | | | 4.82 € | | | B0108.124 | QT steel | tempered (black) | 22 | 35 | 21,6 | M12 | 28 | 14 | 35 | | | 5.77 € | | | B0108.14 | QT steel | tempered (black) | 16 | 25 | 15,6 | M14 | 18 | 9 | 25 | | | 2.03 € | | | B0108.141 | QT steel | tempered (black) | 18 | 28 | 17,6 | M14 | 20 | 10 | 28 | | | 3.12 € | | | B0108.16 | QT steel | tempered (black) | 18 | 28 | 17,6 | M16 | 20 | 10 | 28 | | | 2.51 € | | | B0108.161 | QT steel | tempered (black) | 20 | 32 | 19,6 | M16 | 24 | 12 | 32 | | | 4.46 € | | | B0108.163 | QT steel | tempered (black) | 24 | 40 | 23,6 | M16 | 32 | 16 | 40 | | | 8.27 € | | | B0108.164 | QT steel | tempered (black) | 28 | 44 | 27,6 | M16 | 36 | 18 | 44 | | | 9.53 € | | | B0108.18 | QT steel | tempered (black) | 20 | 32 | 19,6 | M18 | 24 | 12 | 32 | | | 4.28 € | | | B0108.181 | QT steel | tempered (black) | 22 | 35 | 21,6 | M18 | 28 | 14 | 35 | | | 6.30 € | | | B0108.20 | QT steel | tempered (black) | 22 | 35 | 21,6 | M20 | 28 | 14 | 35 | | | 4.95 € | | | B0108.201 | QT steel | tempered (black) | 24 | 40 | 23,6 | M20 | 32 | 16 | 40 | | | 9.41 € | | | B0108.202 | QT steel | tempered (black) | 28 | 44 | 27,6 | M20 | 36 | 18 | 44 | | | 9.91 € | | | B0108.22 | QT steel | tempered (black) | 24 | 40 | 23,6 | M22 | 32 | 16 | 40 | | | 7.63 € | | | B0108.24 | QT steel | tempered (black) | 28 | 44 | 27,6 | M24 | 36 | 18 | 44 | | | 8.89 € | | | B0108.241 | QT steel | tempered (black) | 36 | 54 | 35,5 | M24 | 44 | 22 | 54 | | | 19.09 € | | | B0108.27 | QT steel | tempered (black) | 32 | 50 | 31,5 | M27 | 40 | 20 | 50 | | | 28.27 € | | | B0108.30 | QT steel | tempered (black) | 36 | 54 | 35,5 | M30 | 44 | 22 | 54 | | | 21.88 € | | | B0108.36 | QT steel | tempered (black) | 42 | 65 | 41,5 | M36 | 52 | 26 | 65 | | | 42.08 € | | | B0108.204 | aluminium | bright | 6 | 10 | 5,6 | M4 | 8 | 4 | 10 | | | 7.08 € | | | B0108.206 | aluminium | bright | 8 | 13 | 7,6 | M6 | 10 | 6 | 13 | | | 7.02 € | | | B0108.2061 | aluminium | bright | 10 | 15 | 9,6 | M6 | 12 | 6 | 15 | | | on request | | | B0108.208 | aluminium | bright | 12 | 18 | 11,6 | M8 | 14 | 7 | 18 | | | on request | | | B0108.210 | aluminium | bright | 14 | 22 | 13,6 | M10 | 16 | 8 | 22 | | | 14.51 € | | | B0108.216 | aluminium | bright | 22 | 35 | 21,6 | M16 | 28 | 14 | 35 | | | 23.73 € | | | B0108.806 | stainless steel A4 | bright | 8 | 13 | 7,6 | M6 | 10 | 6 | 13 | | | 3.06 € | | | B0108.808 | stainless steel A4 | bright | 10 | 15 | 9,6 | M8 | 12 | 6 | 15 | | | 3.35 € | | | B0108.810 | stainless steel A4 | bright | 12 | 18 | 11,6 | M10 | 14 | 7 | 18 | | | 4.16 € | | | B0108.812 | stainless steel A4 | bright | 14 | 22 | 13,6 | M12 | 16 | 8 | 22 | | | 5.76 € | | | B0108.814 | stainless steel A4 | bright | 16 | 25 | 15,6 | M14 | 18 | 9 | 25 | | | 7.94 € | | | B0108.816 | stainless steel A4 | bright | 18 | 28 | 17,6 | M16 | 20 | 10 | 28 | | | 10.43 € | |
