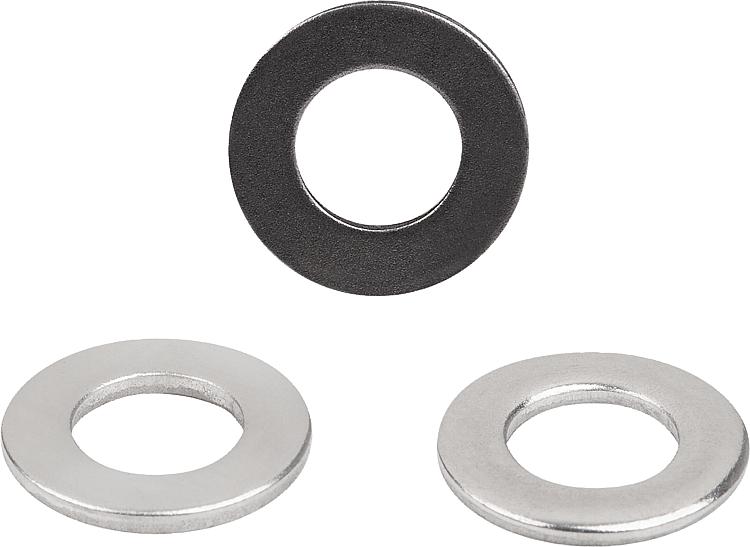

B0112Washers medium, DIN EN ISO 7089 A |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel, bright.
Stainless steel A2, bright.
Stainless steel A4, bright.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

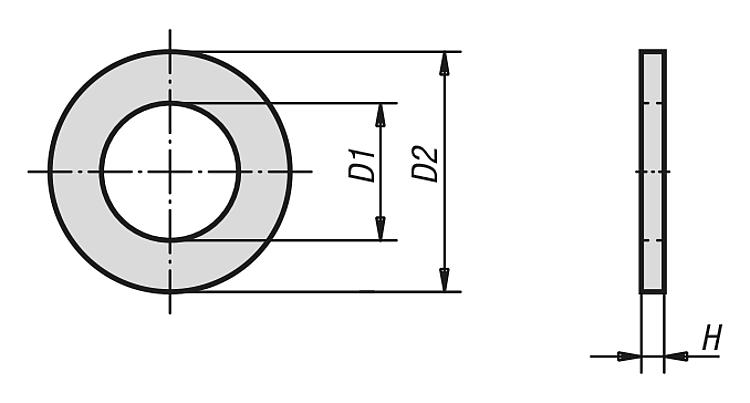

| Order No. | Main
material | Grade | for
screws
| D1 | D2
| H | CAD | Acc. | Price | Order |
|---|
| B0112.03 | steel | - | M3 | 3,2 | 7 | 0,5 |  | | 0.11 € | | | B0112.04 | steel | - | M4 | 4,3 | 9 | 0,8 | | | 0.11 € | | | B0112.05 | steel | - | M5 | 5,3 | 10 | 1 | | | 0.11 € | | | B0112.06 | steel | - | M6 | 6,4 | 12 | 1,6 | | | 0.11 € | | | B0112.08 | steel | - | M8 | 8,4 | 16 | 1,6 | | | 0.11 € | | | B0112.10 | steel | - | M10 | 10,5 | 20 | 2 | | | 0.11 € | | | B0112.12 | steel | - | M12 | 13 | 24 | 2,5 | | | 0.11 € | | | B0112.14 | steel | - | M14 | 15 | 28 | 2,5 | | | 0.19 € | | | B0112.16 | steel | - | M16 | 17 | 30 | 3 | | | 0.19 € | | | B0112.20 | steel | - | M20 | 21 | 37 | 3 | | | 0.32 € | | | B0112.24 | steel | - | M24 | 25 | 44 | 4 | | | 0.53 € | | | B0112.30 | steel | - | M30 | 31 | 56 | 4 | | | 1.01 € | | | B0112.36 | steel | - | M36 | 37 | 66 | 5 | | | 1.98 € | | | B0112.103 | stainless steel A2 | 70 | M3 | 3,2 | 7 | 0,5 | | | 0.11 € | | | B0112.104 | stainless steel A2 | 70 | M4 | 4,3 | 9 | 0,8 | | | 0.11 € | | | B0112.105 | stainless steel A2 | 70 | M5 | 5,3 | 10 | 1 | | | 0.11 € | | | B0112.106 | stainless steel A2 | 70 | M6 | 6,4 | 12 | 1,6 | | | 0.11 € | | | B0112.108 | stainless steel A2 | 70 | M8 | 8,4 | 16 | 1,6 | | | 0.11 € | | | B0112.110 | stainless steel A2 | 70 | M10 | 10,5 | 20 | 2 | | | 0.13 € | | | B0112.112 | stainless steel A2 | 70 | M12 | 13 | 24 | 2,5 | | | 0.31 € | | | B0112.114 | stainless steel A2 | 70 | M14 | 15 | 28 | 2,5 | | | 0.38 € | | | B0112.116 | stainless steel A2 | 70 | M16 | 17 | 30 | 3 | | | 0.45 € | | | B0112.120 | stainless steel A2 | 70 | M20 | 21 | 37 | 3 | | | 0.53 € | | | B0112.124 | stainless steel A2 | 70 | M24 | 25 | 44 | 4 | | | 0.92 € | | | B0112.130 | stainless steel A2 | 70 | M30 | 31 | 56 | 4 | | | 1.98 € | | | B0112.136 | stainless steel A2 | 70 | M36 | 37 | 66 | 5 | | | 3.66 € | | | B0112.603 | stainless steel A4 | 70 | M3 | 3,2 | 7 | 0,5 | | | 0.14 € | | | B0112.604 | stainless steel A4 | 70 | M4 | 4,3 | 9 | 0,8 | | | 0.14 € | | | B0112.605 | stainless steel A4 | 70 | M5 | 5,3 | 10 | 1 | | | 0.14 € | | | B0112.606 | stainless steel A4 | 70 | M6 | 6,4 | 12 | 1,6 | | | 0.14 € | | | B0112.608 | stainless steel A4 | 70 | M8 | 8,4 | 16 | 1,6 | | | 0.14 € | | | B0112.610 | stainless steel A4 | 70 | M10 | 10,5 | 20 | 2 | | | 0.20 € | | | B0112.612 | stainless steel A4 | 70 | M12 | 13 | 24 | 2,5 | | | 0.40 € | | | B0112.614 | stainless steel A4 | 70 | M14 | 15 | 28 | 2,5 | | | 0.50 € | | | B0112.616 | stainless steel A4 | 70 | M16 | 17 | 30 | 3 | | | 0.61 € | | | B0112.620 | stainless steel A4 | 70 | M20 | 21 | 37 | 3 | | | 0.67 € | | | B0112.624 | stainless steel A4 | 70 | M24 | 25 | 44 | 4 | | | 1.19 € | | | B0112.630 | stainless steel A4 | 70 | M30 | 31 | 56 | 4 | | | 2.59 € | | | B0112.636 | stainless steel A4 | 70 | M36 | 37 | 66 | 5 | | | 4.74 € | |
