B0110Nuts for T-slots rhombic form |
go back |
|
Item description/product images |
|
|

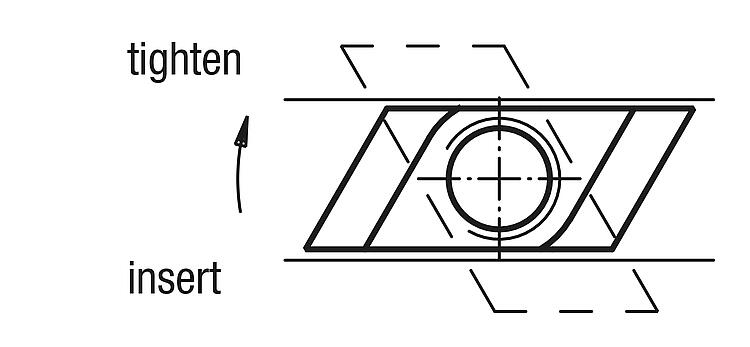

DescriptionMaterial:Carbon steel.Version:Tempered to 8 and black oxidised.Note:The benefit of rhombic nuts for T-slots is that they can be fitted in the slot from the top. They are particularly useful for long T-slots, or when the configuration on the machine table does not permit clamping screws or nuts for T-slots to be inserted from the side.Application:Insert from above then twist in the slot until it stops.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Slot
width | B | B1 | D
| H | H1 | CAD | Acc. | Price | Order |
|---|
| B0110.105 | 6 | 10 | 5,6 | M5 | 8 | 4 |  | | 2.31 € | | | B0110.106 | 8 | 13 | 7,6 | M6 | 10 | 6 | | | 3.22 € | | | B0110.108 | 10 | 15 | 9,7 | M8 | 12 | 6 | | | 3.54 € | | | B0110.110 | 12 | 18 | 11,7 | M10 | 14 | 7 | | | 4.01 € | | | B0110.210 | 14 | 22 | 13,5 | M10 | 16 | 8 | | | 7.30 € | | | B0110.310 | 18 | 28 | 17,5 | M10 | 20 | 10 | | | 9.57 € | | | B0110.112 | 14 | 22 | 13,7 | M12 | 16 | 8 | | | 4.26 € | | | B0110.114 | 16 | 25 | 15,7 | M14 | 18 | 9 | | | 6.96 € | | | B0110.116 | 18 | 28 | 17,7 | M16 | 20 | 10 | | | 7.02 € | | | B0110.216 | 20 | 32 | 19,7 | M16 | 24 | 12 | | | 10.71 € | | | B0110.316 | 22 | 35 | 21,5 | M16 | 28 | 14 | | | 16.58 € | | | B0110.416 | 28 | 44 | 27,5 | M16 | 36 | 18 | | | 22.95 € | | | B0110.118 | 20 | 32 | 19,7 | M18 | 24 | 12 | | | 11.54 € | | | B0110.120 | 22 | 35 | 21,7 | M20 | 28 | 14 | | | 12.70 € | | | B0110.124 | 28 | 44 | 27,7 | M24 | 36 | 18 | | | 21.30 € | | | B0110.130 | 36 | 54 | 35,6 | M30 | 44 | 22 | | | 40.35 € | | | B0110.136 | 42 | 65 | 41,5 | M36 | 52 | 26 | | | 78.17 € | |
