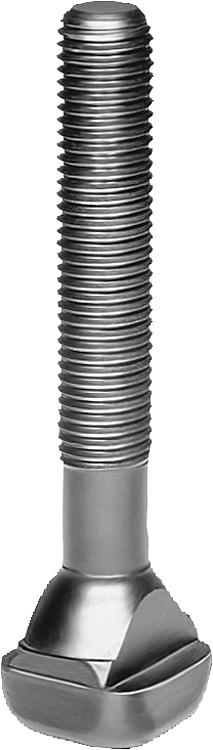

B0096T-slot bolts DIN 787, 12.9 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Carbon steel.Version:Forged and milled, rolled thread, tempered to 12.9, black.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

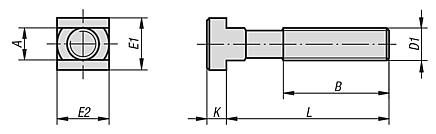

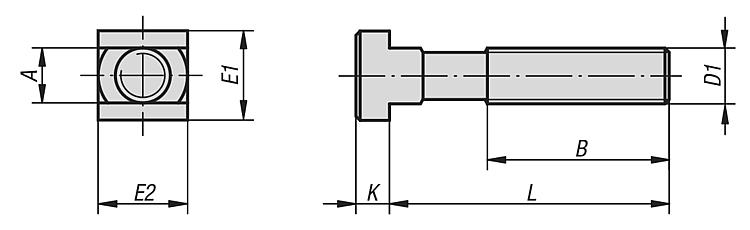

| Order No. | Slot
width | D1
| L | A | B | E1/E2 | K | CAD | Acc. | Price | Order |
|---|
| B0096.11250 | 12 | M12 | 50 | 11,7 | 35 | 18 | 7 |  | | 7.45 € | | | B0096.11280 | 12 | M12 | 80 | 11,7 | 55 | 18 | 7 | | | 7.92 € | | | B0096.112100 | 12 | M12 | 100 | 11,7 | 65 | 18 | 7 | | | 8.85 € | | | B0096.112125 | 12 | M12 | 125 | 11,7 | 75 | 18 | 7 | | | 9.02 € | | | B0096.112160 | 12 | M12 | 160 | 11,7 | 100 | 18 | 7 | | | 10.83 € | | | B0096.112200 | 12 | M12 | 200 | 11,7 | 120 | 18 | 7 | | | 11.97 € | | | B0096.11450 | 14 | M12 | 50 | 13,7 | 35 | 22 | 8 | | | 8.32 € | | | B0096.11480 | 14 | M12 | 80 | 13,7 | 55 | 22 | 8 | | | 8.40 € | | | B0096.114100 | 14 | M12 | 100 | 13,7 | 65 | 22 | 8 | | | 9.48 € | | | B0096.114125 | 14 | M12 | 125 | 13,7 | 75 | 22 | 8 | | | 9.61 € | | | B0096.114160 | 14 | M12 | 160 | 13,7 | 100 | 22 | 8 | | | 11.46 € | | | B0096.114200 | 14 | M12 | 200 | 13,7 | 120 | 22 | 8 | | | 12.05 € | | | B0096.11663 | 16 | M16 | 63 | 15,7 | 45 | 25 | 9 | | | 10.35 € | | | B0096.116100 | 16 | M16 | 100 | 15,7 | 65 | 25 | 9 | | | 10.88 € | | | B0096.116125 | 16 | M16 | 125 | 15,7 | 85 | 25 | 9 | | | 12.95 € | | | B0096.116160 | 16 | M16 | 160 | 15,7 | 100 | 25 | 9 | | | 13.45 € | | | B0096.116250 | 16 | M16 | 250 | 15,7 | 150 | 25 | 9 | | | 17.82 € | | | B0096.11863 | 18 | M16 | 63 | 17,7 | 45 | 28 | 10 | | | 10.59 € | | | B0096.118100 | 18 | M16 | 100 | 17,7 | 65 | 28 | 10 | | | 11.32 € | | | B0096.118125 | 18 | M16 | 125 | 17,7 | 85 | 28 | 10 | | | 13.23 € | | | B0096.118160 | 18 | M16 | 160 | 17,7 | 100 | 28 | 10 | | | 13.72 € | | | B0096.118250 | 18 | M16 | 250 | 17,7 | 150 | 28 | 10 | | | 16.82 € | | | B0096.12080 | 20 | M20 | 80 | 19,7 | 55 | 32 | 12 | | | 15.83 € | | | B0096.120125 | 20 | M20 | 125 | 19,7 | 85 | 32 | 12 | | | 16.28 € | | | B0096.120200 | 20 | M20 | 200 | 19,7 | 125 | 32 | 12 | | | 19.34 € | | | B0096.120315 | 20 | M20 | 315 | 19,7 | 190 | 32 | 12 | | | 27.06 € | | | B0096.12280 | 22 | M20 | 80 | 21,7 | 55 | 35 | 14 | | | 15.38 € | | | B0096.122125 | 22 | M20 | 125 | 21,7 | 85 | 35 | 14 | | | 16.12 € | | | B0096.122200 | 22 | M20 | 200 | 21,7 | 125 | 35 | 14 | | | 19.34 € | | | B0096.122315 | 22 | M20 | 315 | 21,7 | 190 | 35 | 14 | | | 27.06 € | | | B0096.124100 | 24 | M24 | 100 | 23,7 | 70 | 40 | 16 | | | 24.10 € | | | B0096.124160 | 24 | M24 | 160 | 23,7 | 110 | 40 | 16 | | | 26.38 € | | | B0096.124250 | 24 | M24 | 250 | 23,7 | 150 | 40 | 16 | | | 35.13 € | | | B0096.124400 | 24 | M24 | 400 | 23,7 | 240 | 40 | 16 | | | 48.54 € | | | B0096.128100 | 28 | M24 | 100 | 27,7 | 70 | 44 | 18 | | | 20.17 € | | | B0096.128160 | 28 | M24 | 160 | 27,7 | 110 | 44 | 18 | | | 25.89 € | | | B0096.128250 | 28 | M24 | 250 | 27,7 | 150 | 44 | 18 | | | 32.28 € | | | B0096.128400 | 28 | M24 | 400 | 27,7 | 240 | 44 | 18 | | | 47.24 € | |
