Locators
 B0037

Locators

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Bright, hardened.Note:If abrasion-resistant and exact locking is necessary, locators can be used together with spring plungers, especially with strong spring force.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0037 Locators 183 kB

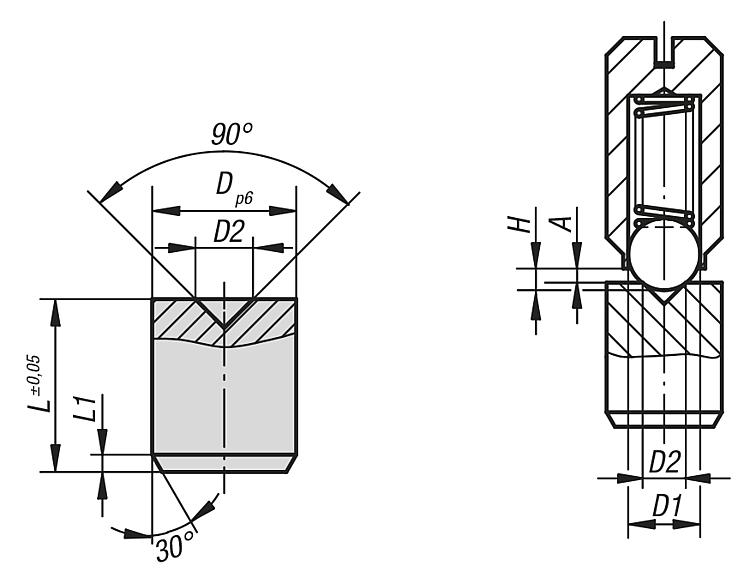

Drawings

Locators

Item selection/filter
Order No.

Suitable for
spring plungers
with ØD		DD1D2HLL1CADAcc.PriceOrder
B0037.04015- / M44see relevant products for dimensions1,5see relevant products for dimensions50,5 4.34 €
B0037.05020Ø4 / M55see relevant products for dimensions2see relevant products for dimensions60,5 4.34 €
B0037.06020Ø5 / M66see relevant products for dimensions2see relevant products for dimensions80,7 4.34 €
B0037.08030Ø6 / M88see relevant products for dimensions3see relevant products for dimensions101 4.52 €
B0037.10040Ø8 / M1010see relevant products for dimensions4see relevant products for dimensions121,2 5.33 €
B0037.12060Ø10 / M1212see relevant products for dimensions6see relevant products for dimensions141,5 5.51 €
B0037.16080Ø12 / M1616see relevant products for dimensions8see relevant products for dimensions182 9.75 €
