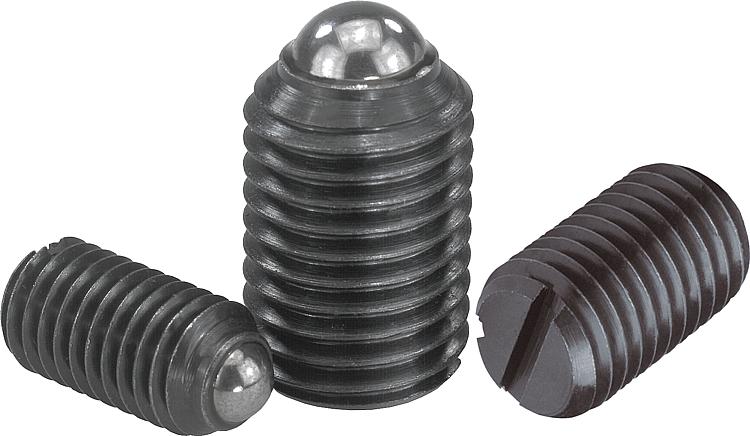

B0012Spring plungers with slot and ball, steel |
go back |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Ball steel.
Spring grade D steel wire.Version:Black oxidised. Ball hardened.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

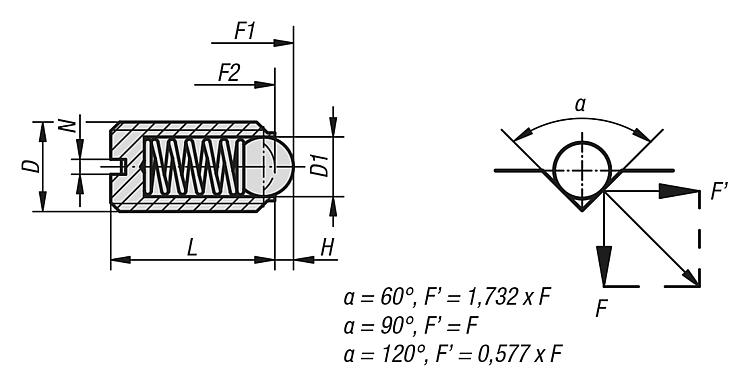

Drawings (total overview) |
Order No.
| D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0012.03 | M3 | 1,5 | 7 | 0,4 | 0,4 | 1,5 | 3 |  | | 0.98 € | | | B0012.04 | M4 | 2,5 | 9 | 0,8 | 0,6 | 4 | 10 | | | 0.71 € | | | B0012.05 | M5 | 3 | 12 | 0,9 | 0,8 | 6 | 11 | | | 0.71 € | | | B0012.06 | M6 | 3,5 | 14 | 1 | 1 | 9 | 13 | | | 0.71 € | | | B0012.08 | M8 | 5 | 16 | 1,5 | 1,2 | 15 | 30 | | | 0.99 € | | | B0012.10 | M10 | 6 | 19 | 2 | 1,6 | 20 | 40 | | | 1.02 € | | | B0012.12 | M12 | 8 | 22 | 2,5 | 2 | 30 | 55 | | | 1.60 € | | | B0012.16 | M16 | 10 | 24 | 3,5 | 2,5 | 65 | 125 | | | 2.15 € | | | B0012.20 | M20 | 12 | 30 | 4,5 | 2,5 | 80 | 160 | | | 3.23 € | |
|
Order No.
| D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0012.203 | M3 | 1,5 | 7 | 0,4 | 0,4 | 5 | 7 | | | 1.04 € | | | B0012.204 | M4 | 2,5 | 9 | 0,8 | 0,6 | 12 | 22 | | | 0.83 € | | | B0012.205 | M5 | 3 | 12 | 0,9 | 0,8 | 19 | 30 | | | 0.83 € | | | B0012.206 | M6 | 3,5 | 14 | 1 | 1 | 28 | 40 | | | 0.83 € | | | B0012.208 | M8 | 5 | 16 | 1,5 | 1,2 | 47 | 73 | | | 1.08 € | | | B0012.210 | M10 | 6 | 19 | 2 | 1,6 | 66 | 100 | | | 1.15 € | | | B0012.212 | M12 | 8 | 22 | 2,5 | 2 | 66 | 120 | | | 1.78 € | | | B0012.216 | M16 | 10 | 24 | 3,5 | 2,5 | 90 | 180 | | | 2.38 € | | | B0012.220 | M20 | 12 | 30 | 4,5 | 2,5 | 115 | 240 | | | 3.54 € | |
|
Spring plungers with slot and ball, long version, standard spring force |
More information |
Order No.
| D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0012.404 | M4 | 2,5 | 16 | 0,8 | 0,6 | 4 | 10 | | | 0.97 € | | | B0012.405 | M5 | 3 | 20 | 0,9 | 0,8 | 6 | 11 | | | 0.97 € | | | B0012.406 | M6 | 3,5 | 25 | 1 | 1 | 9 | 13 | | | 0.97 € | | | B0012.408 | M8 | 5 | 30 | 1,5 | 1,2 | 15 | 30 | | | 1.30 € | | | B0012.410 | M10 | 6 | 35 | 2 | 1,6 | 20 | 40 | | | 1.45 € | | | B0012.412 | M12 | 8 | 40 | 2,5 | 2 | 30 | 55 | | | 2.08 € | | | B0012.416 | M16 | 10 | 45 | 3,5 | 2,5 | 65 | 125 | | | 2.80 € | |
|
