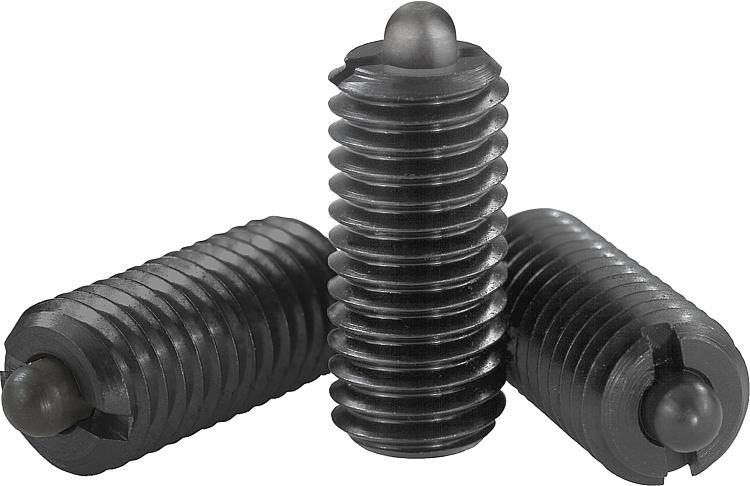

B0018Spring plungers with hexagon socket and thrust pin, steel |
go back |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.Version:Black oxidised.
Thrust pin hardened.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

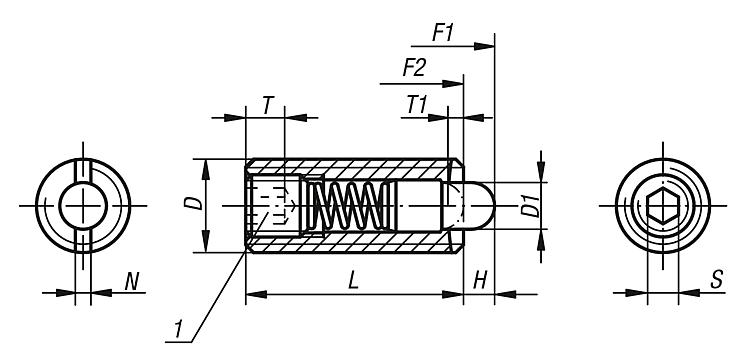

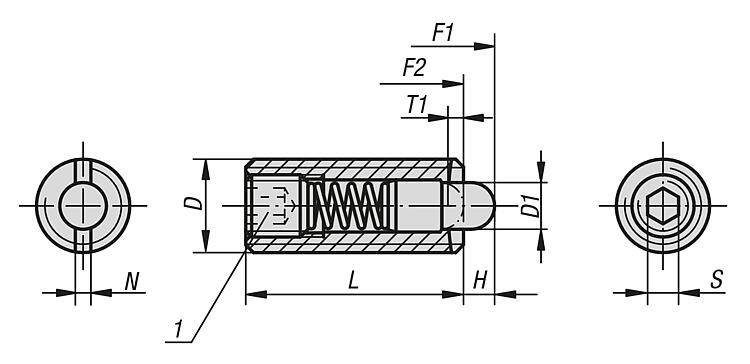

Drawings (total overview) |
Spring plungers with hexagon socket and thrust pin, standard spring force |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| B0018.03 | M3 | 1 | 1,5 | 10 | 1 | 0,4 | 0,7 | 0,5 | 3 | B0038.903 |  |  | 2.34 € | | | B0018.04 | M4 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 5 | 16 | B0038.904 | | | 1.82 € | | | B0018.05 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 6 | 20 | B0038.905 | | | 1.75 € | | | B0018.06 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 7 | 20 | B0038.906 | | | 1.81 € | | | B0018.08 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 9 | 35 | B0038.908 | | | 2.14 € | | | B0018.10 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 9 | 35 | B0038.910 | | | 2.39 € | | | B0018.12 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 12 | 55 | B0038.912 | | | 3.07 € | | | B0018.16 | M16 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 45 | 100 | B0038.916 | | | 3.93 € | | | B0018.20 | M20 | 10 | 7 | 40 | 3 | 2,5 | 6 | 60 | 120 | - | | | 5.04 € | | | B0018.24 | M24 | 12 | 10 | 52 | 3 | 2,5 | 8 | 80 | 160 | - | | | 8.91 € | |
|
Spring plungers with hexagon socket and thrust pin, light spring force |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| B0018.104 | M4 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 2 | 7 | B0038.904 | | | 1.87 € | | | B0018.105 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 3 | 10 | B0038.905 | | | 1.94 € | | | B0018.106 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 3 | 9 | B0038.906 | | | 1.97 € | | | B0018.108 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 4 | 16 | B0038.908 | | | 2.33 € | | | B0018.110 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 4 | 16 | B0038.910 | | | 2.56 € | | | B0018.112 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 5 | 27 | B0038.912 | | | 3.33 € | | | B0018.116 | M16 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 20 | 45 | B0038.916 | | | 4.25 € | |
|
Spring plungers with hexagon socket and thrust pin, reinforced spring force |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| B0018.205 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 11 | 29 | B0038.905 | | | 1.90 € | | | B0018.206 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 14 | 37 | B0038.906 | | | 1.97 € | | | B0018.208 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 22 | 65 | B0038.908 | | | 2.37 € | | | B0018.210 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 19 | 70 | B0038.910 | | | 2.61 € | | | B0018.212 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 25 | 85 | B0038.912 | | | 3.39 € | | | B0018.216 | M16 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 60 | 150 | B0038.916 | | | 4.34 € | | | B0018.220 | M20 | 10 | 7 | 40 | 3 | 2,5 | 6 | 75 | 190 | - | | | 5.54 € | | | B0018.224 | M24 | 12 | 10 | 52 | 3 | 2,5 | 8 | 95 | 240 | - | | | 9.84 € | |
|
