B0021

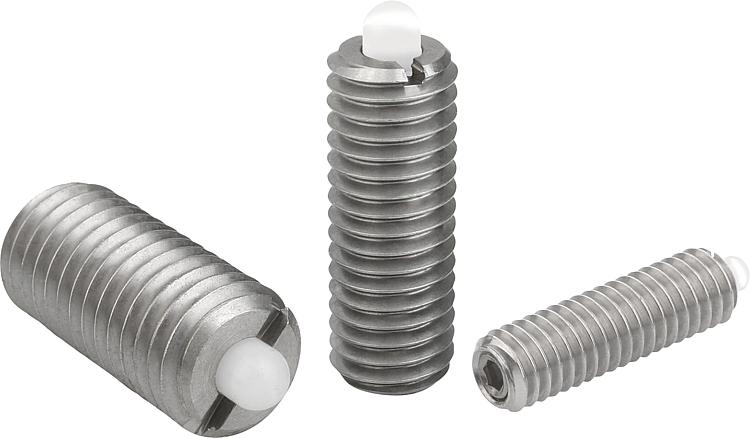

Spring plungers with hexagon socket and POM thrust pin,...

Item description/product images

DescriptionMaterial:

Sleeve 1.4305.
Thrust pin POM.
Spring 1.4310.

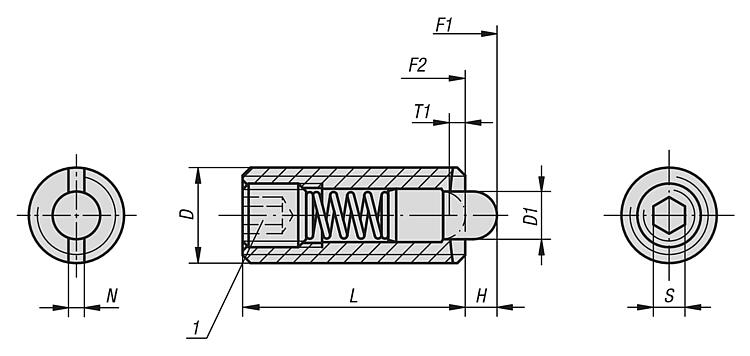

Version:Bright.Drawing reference:

1) grub screw glued in

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	D	D1	H	L	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Order No. Assembly key	Price
B0021.03	M3	1	1,5	10	1	0,4	0,7	0,5	3	B0038.903	5.59 €
B0021.04	M4	1,5	1,5	15	0,6	0,6	1,3	5	16	B0038.904	4.67 €
B0021.05	M5	2,4	2,3	18	0,8	0,8	1,5	5	17	B0038.905	4.60 €
B0021.06	M6	2,7	2,5	20	1	1	2	6	17	B0038.906	4.60 €
B0021.08	M8	3,5	3	22	1,4	1,2	2,5	7	29	B0038.908	5.30 €
B0021.10	M10	4	3	22	1,4	1,6	3	8	31	B0038.910	6.10 €
B0021.12	M12	6	4	28	2	2	4	10	47	B0038.912	7.83 €
B0021.16	M16	7,5	5	32	2,5	2,5	5	38	85	B0038.916	12.33 €
