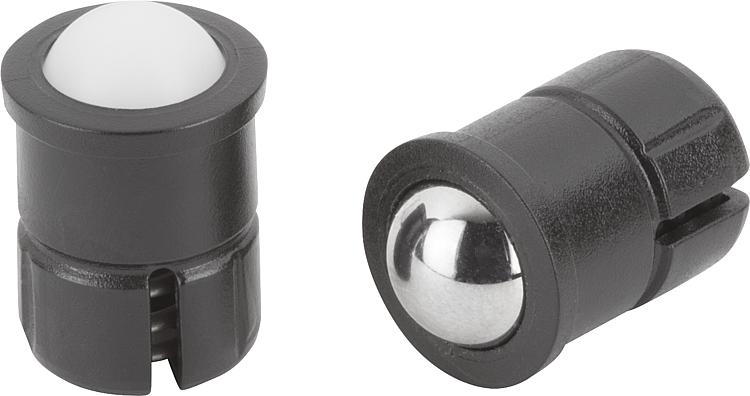

B0033Spring plungers smooth version, self-clamping, plastic |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve thermoplastic.
Spring stainless steel.
Ball stainless steel or POM.Version:Sleeve black.
Ball hardened, bright.Note:The self-locking function of the spring plunger enables simple assembly and secure overhead installation.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

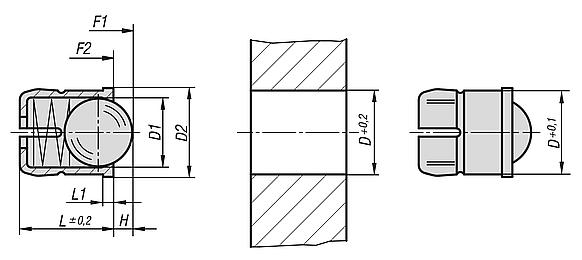

Order No.
| Component
material | D
| D1 | D2 | L | L1 | H | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0033.04 | stainless steel | 4 | 3 | 4,6 | 5 | 1 | 0,8 | 3 | 6,5 |  | | 0.67 € | | | B0033.05 | stainless steel | 5 | 4 | 5,6 | 6 | 1 | 1 | 6 | 9,4 | | | 0.70 € | | | B0033.06 | stainless steel | 6 | 5 | 6,5 | 7 | 1 | 1,6 | 6,2 | 12,6 | | | 0.72 € | | | B0033.08 | stainless steel | 8 | 6,5 | 8,5 | 9 | 1 | 1,9 | 10 | 20,4 | | | 0.83 € | | | B0033.10 | stainless steel | 10 | 8 | 11 | 13,5 | 1,5 | 2,4 | 11,9 | 22,3 | | | 1.34 € | | | B0033.204 | POM | 4 | 3 | 4,6 | 5 | 1 | 0,8 | 3 | 6,5 | | | 0.80 € | | | B0033.205 | POM | 5 | 4 | 5,6 | 6 | 1 | 1 | 6 | 9,4 | | | 0.85 € | | | B0033.206 | POM | 6 | 5 | 6,5 | 7 | 1 | 1,6 | 6,2 | 12,6 | | | 0.89 € | | | B0033.208 | POM | 8 | 6,5 | 8,5 | 9 | 1 | 1,9 | 10 | 20,4 | | | 0.95 € | | | B0033.210 | POM | 10 | 8 | 11 | 13,5 | 1,5 | 2,4 | 11,9 | 22,3 | | | 1.51 € | |
