B0031

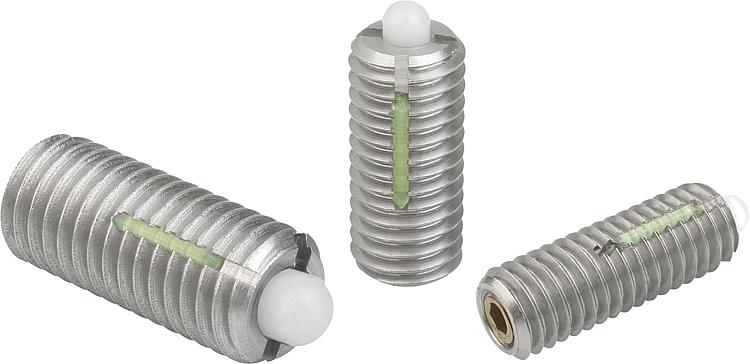

Spring plungers with hex socket and POM thrust pin, stainless...

Item description/product images

DescriptionMaterial:

Sleeve stainless steel 1.4305.
Thrust pin POM.
Spring stainless steel 1.4310.

Thread lock nylon.

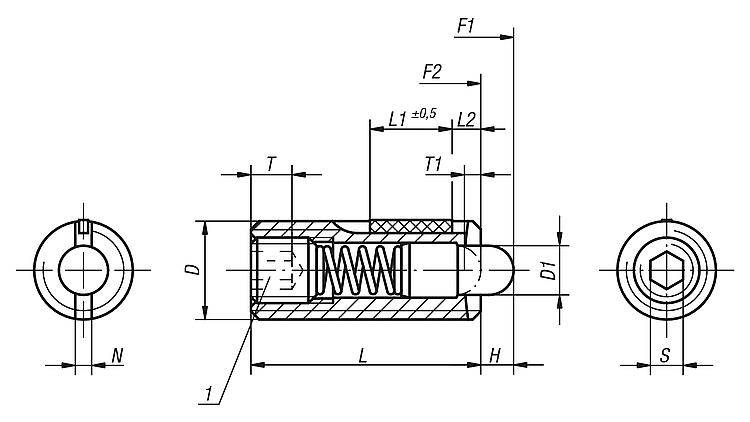

Version:Bright.Drawing reference:

L2 = ca. two full threads

1) grub screw glued-in

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	D	D1	H	L	L1	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Order No. Assembly key	Price
B0031.05	M5	2,4	2,3	18	7	0,8	0,8	1,5	5	17	0,12	0,08	B0038.905	5.34 €
B0031.06	M6	2,7	2,5	20	7	1	1	2	6	17	0,45	0,22	B0038.906	5.31 €
B0031.08	M8	3,5	3	22	8	1,4	1,2	2,5	7	29	1,05	0,37	B0038.908	5.97 €
B0031.10	M10	4	3	22	9	1,4	1,6	3	8	31	1,3	0,6	B0038.910	6.88 €
B0031.12	M12	6	4	28	10	2	2	4	10	47	2	1,3	B0038.912	9.96 €
B0031.16	M16	7,5	5	32	14	2,5	2,5	5	38	85	3,9	3	B0038.916	15.65 €
