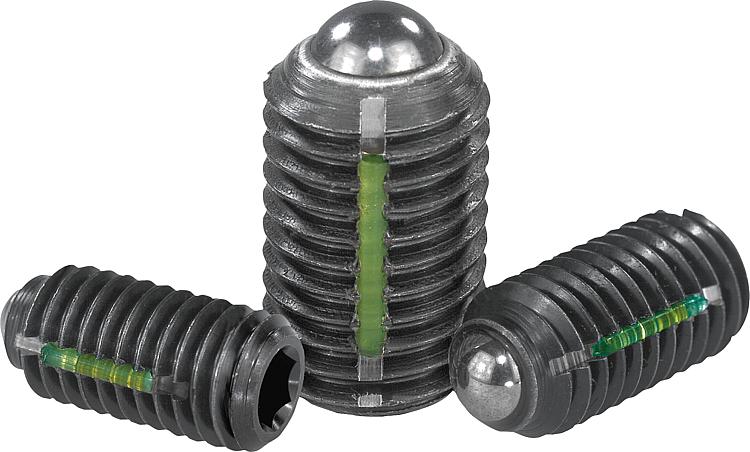

B0026Spring plungers with hex socket and ball, steel, with thread lock |
go back |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Ball steel.
Spring grade D spring steel wire.
Thread lock nylon.Version:Black oxidised. Ball hardened.Drawing reference:L2 = approx. 2x thread pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Spring plungers with hex socket and ball, standard spring force, with thread lock |
More information |
Order No.
| D | D1 | H | L | L1 | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| B0026.03 | M3 | 1,5 | 0,4 | 9 | 4 | 1,5 | 1,5 | 3 | 0,1 | 0,07 |  | | 2.38 € | | | B0026.04 | M4 | 2,5 | 0,8 | 10 | 5 | 2 | 4 | 10 | 0,18 | 0,12 | | | 2.06 € | | | B0026.05 | M5 | 3 | 0,9 | 14 | 6 | 2,5 | 6 | 11 | 0,12 | 0,08 | | | 2.00 € | | | B0026.06 | M6 | 3,5 | 1 | 15 | 7 | 3 | 9 | 13 | 0,44 | 0,21 | | | 1.97 € | | | B0026.08 | M8 | 5 | 1,5 | 18 | 8 | 4 | 15 | 30 | 1,1 | 0,38 | | | 2.39 € | | | B0026.10 | M10 | 6 | 2 | 23 | 9 | 5 | 20 | 40 | 1,3 | 0,6 | | | 2.60 € | | | B0026.12 | M12 | 8 | 2,5 | 26 | 10 | 6 | 30 | 55 | 2 | 1,3 | | | 4.42 € | | | B0026.16 | M16 | 10 | 3,5 | 33 | 14 | 8 | 65 | 125 | 3,9 | 3 | | | 6.30 € | |
|
Spring plungers with hex socket and ball, heavy spring force, with thread lock |
More information |
Order No.
| D | D1 | H | L | L1 | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| B0026.203 | M3 | 1,5 | 0,4 | 9 | 4 | 1,5 | 5 | 7 | 0,1 | 0,07 | | | 2.68 € | | | B0026.204 | M4 | 2,5 | 0,8 | 10 | 5 | 2 | 12 | 22 | 0,18 | 0,12 | | | 2.15 € | | | B0026.205 | M5 | 3 | 0,9 | 14 | 6 | 2,5 | 19 | 30 | 0,12 | 0,08 | | | 2.10 € | | | B0026.206 | M6 | 3,5 | 1 | 15 | 7 | 3 | 28 | 40 | 0,44 | 0,21 | | | 2.10 € | | | B0026.208 | M8 | 5 | 1,5 | 18 | 8 | 4 | 47 | 73 | 1,1 | 0,38 | | | 2.54 € | | | B0026.210 | M10 | 6 | 2 | 23 | 9 | 5 | 66 | 100 | 1,3 | 0,6 | | | 2.80 € | | | B0026.212 | M12 | 8 | 2,5 | 26 | 10 | 6 | 66 | 120 | 2 | 1,3 | | | 4.69 € | | | B0026.216 | M16 | 10 | 3,5 | 33 | 14 | 8 | 90 | 180 | 3,9 | 3 | | | 6.65 € | |
|
