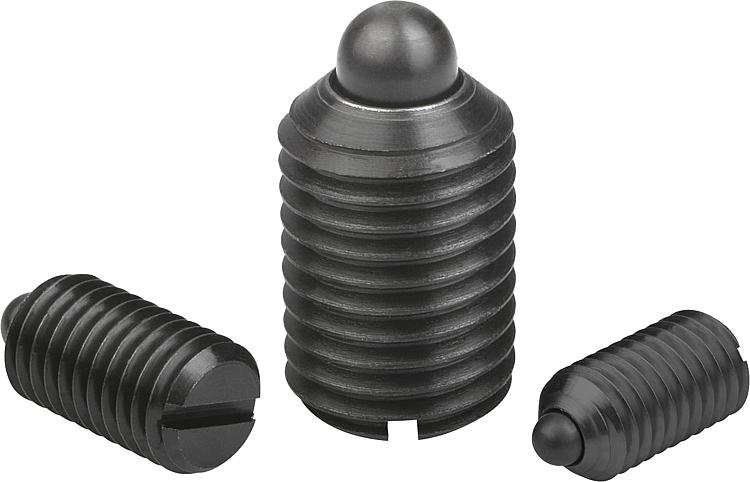

B0014Spring plungers with slot and thrust pin, steel |
go back |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.Version:Black oxidised.
Thrust pin hardened.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Spring plungers with slot and thrust pin, standard spring force |
More information |
| Order No. | Main
material | D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0014.04 | steel | M4 | 1,8 | 9 | 1,5 | 0,6 | 6 | 20 |  | | 0.88 € | | | B0014.05 | steel | M5 | 2,4 | 12 | 2 | 0,8 | 6 | 20 | | | 0.87 € | | | B0014.06 | steel | M6 | 2,7 | 14 | 2 | 1 | 7 | 20 | | | 0.87 € | | | B0014.08 | steel | M8 | 4 | 16 | 2 | 1,2 | 15 | 30 | | | 1.04 € | | | B0014.10 | steel | M10 | 4,5 | 19 | 2,5 | 1,6 | 20 | 35 | | | 1.12 € | | | B0014.12 | steel | M12 | 6 | 22 | 3,5 | 2 | 30 | 55 | | | 1.68 € | | | B0014.16 | steel | M16 | 8,5 | 24 | 4,5 | 2,5 | 45 | 100 | | | 2.37 € | | | B0014.20 | steel | M20 | 10 | 30 | 6,5 | 2,5 | 60 | 120 | | | 3.88 € | |
|
| Order No. | Main
material | D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0014.104 | steel | M4 | 1,8 | 9 | 1,5 | 0,6 | 3 | 10 | | | 0.99 € | | | B0014.105 | steel | M5 | 2,4 | 12 | 2 | 0,8 | 3 | 10 | | | 1.00 € | | | B0014.106 | steel | M6 | 2,7 | 14 | 2 | 1 | 4 | 10 | | | 1.04 € | | | B0014.108 | steel | M8 | 4 | 16 | 2 | 1,2 | 7 | 15 | | | 1.23 € | | | B0014.110 | steel | M10 | 4,5 | 19 | 2,5 | 1,6 | 9 | 16 | | | 1.31 € | | | B0014.112 | steel | M12 | 6 | 22 | 3,5 | 2 | 14 | 26 | | | 1.87 € | | | B0014.116 | steel | M16 | 8,5 | 24 | 4,5 | 2,5 | 22 | 50 | | | 2.51 € | | | B0014.120 | steel | M20 | 10 | 30 | 6,5 | 2,5 | 30 | 60 | | | 3.90 € | |
|
Spring plungers with slot and thrust pin, reinforced spring force |
More information |
| Order No. | Main
material | D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0014.205 | steel | M5 | 2,4 | 12 | 2 | 0,8 | 9 | 25 | | | 1.01 € | | | B0014.206 | steel | M6 | 2,7 | 14 | 2 | 1 | 11 | 25 | | | 1.07 € | | | B0014.208 | steel | M8 | 4 | 16 | 2 | 1,2 | 22 | 43 | | | 1.27 € | | | B0014.210 | steel | M10 | 4,5 | 19 | 2,5 | 1,6 | 20 | 54 | | | 1.32 € | | | B0014.212 | steel | M12 | 6 | 22 | 3,5 | 2 | 36 | 94 | | | 1.92 € | | | B0014.216 | steel | M16 | 8,5 | 24 | 4,5 | 2,5 | 60 | 110 | | | 2.60 € | |
|
