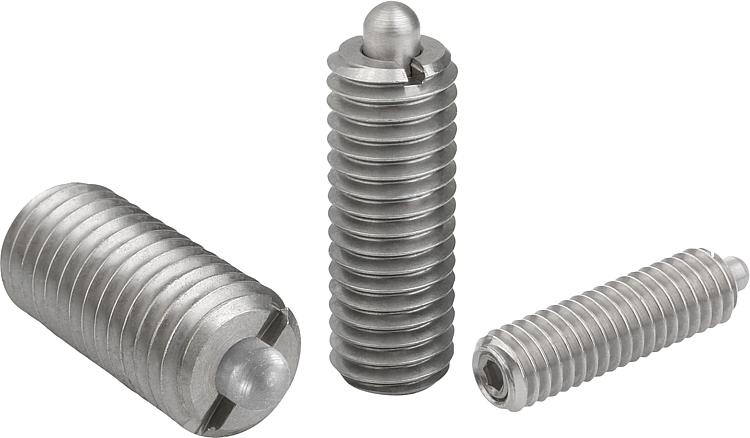

B0020Spring plungers with hexagon socket and thrust pin, stainless... |
go back |
|
|
DescriptionMaterial:Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310. Version:Bright.
Thrust pin hardened.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

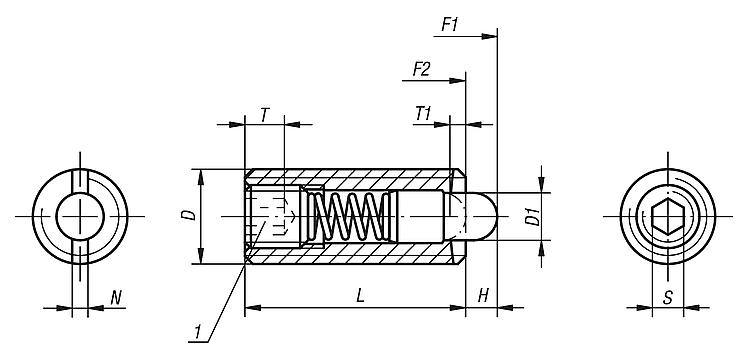

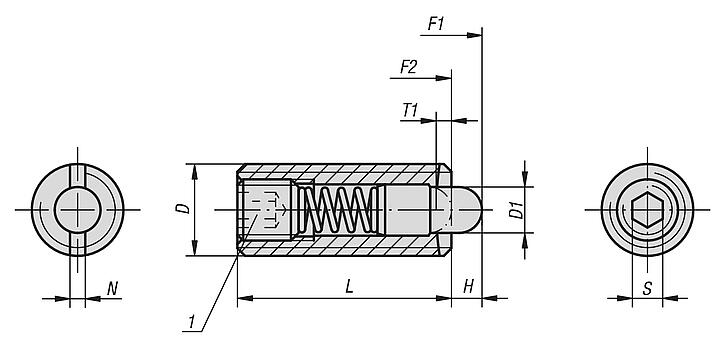

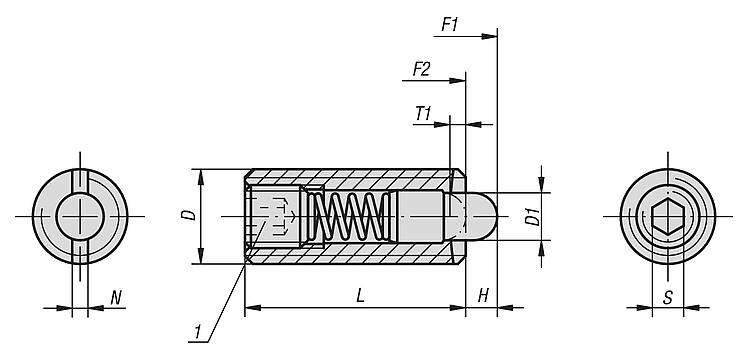

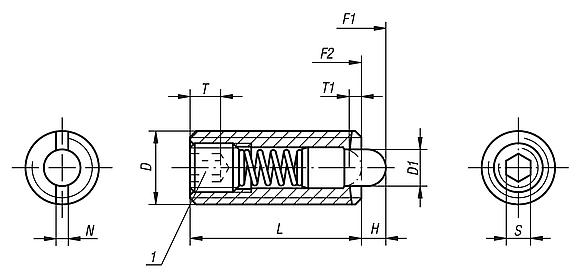

Drawings (total overview) |
Spring plungers with hexagon socket and thrust pin, standard spring force |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| B0020.03 | M3 | 1 | 1,5 | 10 | 1 | 0,4 | 0,7 | 0,4 | 2,5 | B0038.903 |  |  | 5.44 € | | | B0020.04 | M4 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 5 | 16 | B0038.904 | | | 4.53 € | | | B0020.05 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 5 | 17 | B0038.905 | | | 4.50 € | | | B0020.06 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 6 | 17 | B0038.906 | | | 4.50 € | | | B0020.08 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 7 | 29 | B0038.908 | | | 5.13 € | | | B0020.10 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 8 | 31 | B0038.910 | | | 6.00 € | | | B0020.12 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 10 | 47 | B0038.912 | | | 7.65 € | | | B0020.16 | M16 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 38 | 85 | B0038.916 | | | 12.05 € | |
|
Spring plungers with hexagon socket and thrust pin, reinforced spring force |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| B0020.205 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 9 | 26 | B0038.905 | | | 4.83 € | | | B0020.206 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 11 | 35 | B0038.906 | | | 4.83 € | | | B0020.208 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 15 | 48 | B0038.908 | | | 5.54 € | | | B0020.210 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 15 | 58 | B0038.910 | | | 6.43 € | | | B0020.212 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 19 | 74 | B0038.912 | | | 8.21 € | |
|
