B0017Spring plungers with hexagon socket and ball, stainless steel |
go back |
|
|
DescriptionMaterial:Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310. Version:Bright. Ball hardened.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

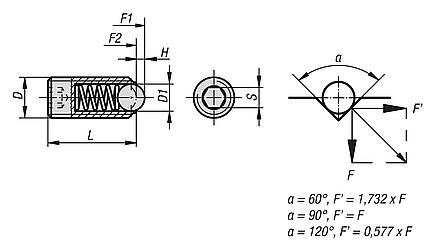

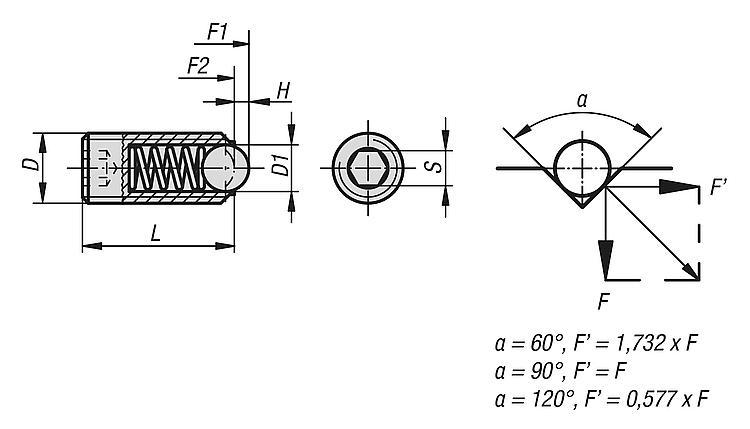

Drawings (total overview) |
Spring plungers with hexagon socket and ball, standard spring force |
More information |
Order No.
| D | D1 | H | L | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0017.03 | M3 | 1,5 | 0,4 | 9 | 1,5 | 1,5 | 3 |  | | 4.40 € | | | B0017.04 | M4 | 2,5 | 0,8 | 10 | 2 | 4 | 10 | | | 3.71 € | | | B0017.05 | M5 | 3 | 0,9 | 14 | 2,5 | 6 | 11 | | | 3.71 € | | | B0017.06 | M6 | 3,5 | 1 | 15 | 3 | 9 | 13 | | | 3.71 € | | | B0017.08 | M8 | 5 | 1,5 | 18 | 4 | 15 | 30 | | | 4.01 € | | | B0017.10 | M10 | 6 | 2 | 23 | 5 | 20 | 35 | | | 4.69 € | | | B0017.12 | M12 | 8 | 2,5 | 26 | 6 | 30 | 55 | | | 6.24 € | | | B0017.16 | M16 | 10 | 3,5 | 33 | 8 | 65 | 125 | | | 9.86 € | | | B0017.20 | M20 | 12 | 4,5 | 43 | 10 | 80 | 160 | | | 12.30 € | | | B0017.24 | M24 | 15 | 5,5 | 48 | 12 | 90 | 180 | | | 20.20 € | |
|
Spring plungers with hexagon socket and ball, strong spring force |
More information |
Order No.
| D | D1 | H | L | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0017.203 | M3 | 1,5 | 0,4 | 9 | 1,5 | 5 | 7 | | | 4.88 € | | | B0017.204 | M4 | 2,5 | 0,8 | 10 | 2 | 12 | 22 | | | 4.10 € | | | B0017.205 | M5 | 3 | 0,9 | 14 | 2,5 | 19 | 30 | | | 4.10 € | | | B0017.206 | M6 | 3,5 | 1 | 15 | 3 | 28 | 40 | | | 4.10 € | | | B0017.208 | M8 | 5 | 1,5 | 18 | 4 | 47 | 73 | | | 4.43 € | | | B0017.210 | M10 | 6 | 2 | 23 | 5 | 66 | 100 | | | 5.12 € | | | B0017.212 | M12 | 8 | 2,5 | 26 | 6 | 66 | 120 | | | 6.86 € | | | B0017.216 | M16 | 10 | 3,5 | 33 | 8 | 90 | 180 | | | 10.85 € | | | B0017.220 | M20 | 12 | 4,5 | 43 | 10 | 115 | 240 | | | 13.49 € | | | B0017.224 | M24 | 15 | 5,5 | 48 | 12 | 130 | 270 | | | 22.26 € | |
|
Spring plungers with hexagon socket and ball, long version, standard spring force |
More information |
Order No.
| D | D1 | H | L | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0017.404 | M4 | 2,5 | 0,8 | 16 | 2 | 4 | 10 | | | 4.45 € | | | B0017.405 | M5 | 3 | 0,9 | 20 | 2,5 | 6 | 11 | | | 4.45 € | | | B0017.406 | M6 | 3,5 | 1 | 25 | 3 | 9 | 13 | | | 4.45 € | | | B0017.408 | M8 | 5 | 1,5 | 30 | 4 | 15 | 30 | | | 4.83 € | | | B0017.410 | M10 | 6 | 2 | 35 | 5 | 20 | 35 | | | 5.61 € | | | B0017.412 | M12 | 8 | 2,5 | 40 | 6 | 30 | 55 | | | 7.40 € | | | B0017.416 | M16 | 10 | 3,5 | 45 | 8 | 65 | 125 | | | 11.82 € | |
|
