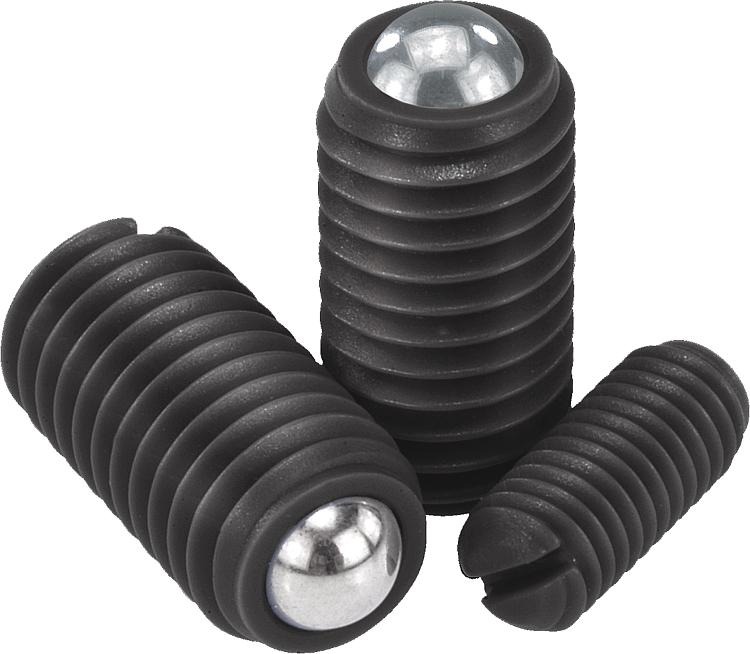

Spring plungers with slot and stainless steel ball, plastic
B0011

Spring plungers with slot and stainless steel ball, plastic

go back

Item description/product images

DescriptionMaterial:

Sleeve plastic.
Ball 1.4034 stainless steel.
Spring 1.4310.

Version:Ball, hardened.Note:Spring plungers are used for indexing and positioning. They can also be used as ejectors.Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0011 Spring plungers with slot and stainless steel ball, plastic 182 kB

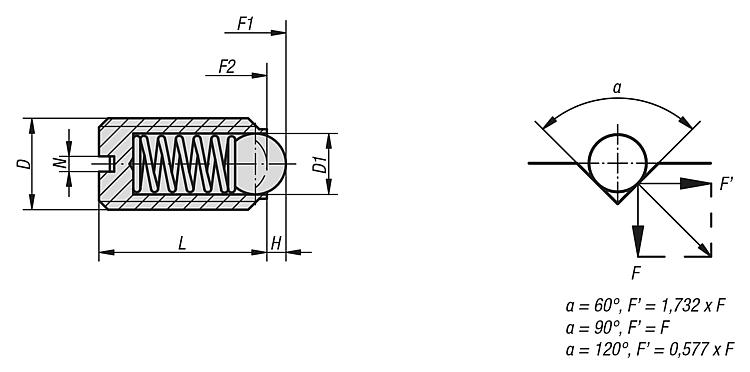

Drawings

Spring plungers with slot and stainless steel ball, plastic

Item selection/filter

Order No.

DD1HLNSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
B0011.06M63,51141913 0.84 €
B0011.08M851,5161,21530 1.00 €
B0011.10M1062191,62040 1.18 €
