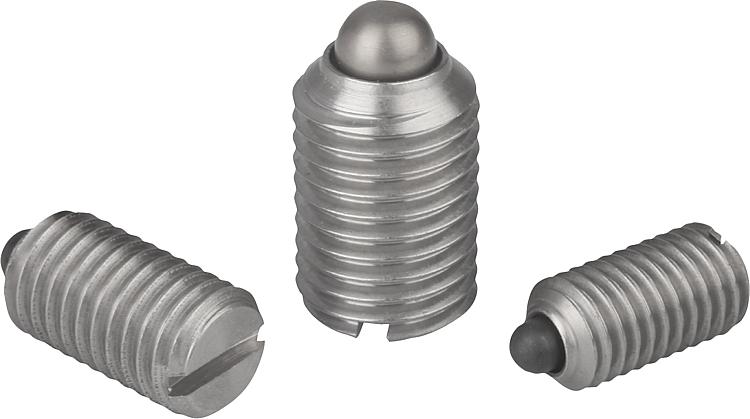

B0015Spring plungers with slot and thrust pin, stainless steel |
go back |
|
|
DescriptionMaterial:Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310. Version:Bright.
Thrust pin hardened. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

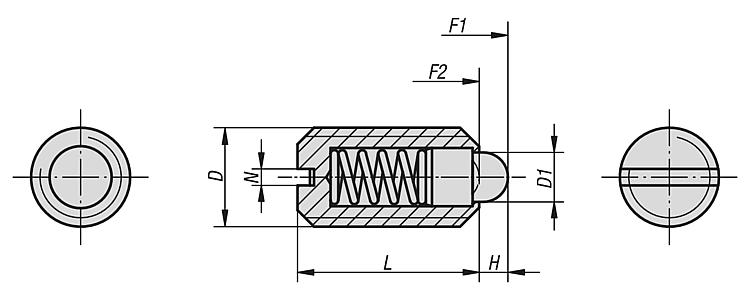

Drawings (total overview) |
Spring plungers with slot and thrust pin, standard spring force |
More information |
| Order No. | Main
material | D | D1 | H | L | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0015.04 | stainless steel | M4 | 1,8 | 1,5 | 9 | 0,6 | 6 | 20 |  | | 2.39 € | | | B0015.05 | stainless steel | M5 | 2,4 | 2 | 12 | 0,8 | 6 | 20 | | | 2.37 € | | | B0015.06 | stainless steel | M6 | 2,7 | 2 | 14 | 1 | 7 | 20 | | | 2.37 € | | | B0015.08 | stainless steel | M8 | 4 | 2 | 16 | 1,2 | 15 | 30 | | | 3.12 € | | | B0015.10 | stainless steel | M10 | 4,5 | 2,5 | 19 | 1,6 | 20 | 35 | | | 3.63 € | | | B0015.12 | stainless steel | M12 | 6 | 3,5 | 22 | 2 | 30 | 55 | | | 4.62 € | | | B0015.16 | stainless steel | M16 | 8,5 | 4,5 | 24 | 2,5 | 45 | 100 | | | 6.06 € | | | B0015.20 | stainless steel | M20 | 10 | 6,5 | 30 | 2,5 | 60 | 120 | | | 8.18 € | |
|
| Order No. | Main
material | D | D1 | H | L | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0015.104 | stainless steel | M4 | 1,8 | 1,5 | 9 | 0,6 | 3 | 10 | | | 2.72 € | | | B0015.105 | stainless steel | M5 | 2,4 | 2 | 12 | 0,8 | 3 | 10 | | | 2.77 € | | | B0015.106 | stainless steel | M6 | 2,7 | 2 | 14 | 1 | 4 | 10 | | | 2.81 € | | | B0015.108 | stainless steel | M8 | 4 | 2 | 16 | 1,2 | 7 | 15 | | | 3.48 € | | | B0015.110 | stainless steel | M10 | 4,5 | 2,5 | 19 | 1,6 | 9 | 16 | | | 4.00 € | | | B0015.112 | stainless steel | M12 | 6 | 3,5 | 22 | 2 | 14 | 26 | | | 5.30 € | | | B0015.116 | stainless steel | M16 | 8,5 | 4,5 | 24 | 2,5 | 22 | 50 | | | 6.51 € | | | B0015.120 | stainless steel | M20 | 10 | 6,5 | 30 | 2,5 | 30 | 60 | | | 8.68 € | |
|
Spring plungers with slot and thrust pin, reinforced spring force |
More information |
| Order No. | Main
material | D | D1 | H | L | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0015.205 | stainless steel | M5 | 2,4 | 2 | 12 | 0,8 | 9 | 25 | | | 2.79 € | | | B0015.206 | stainless steel | M6 | 2,7 | 2 | 14 | 1 | 11 | 25 | | | 2.81 € | | | B0015.208 | stainless steel | M8 | 4 | 2 | 16 | 1,2 | 22 | 43 | | | 3.49 € | | | B0015.210 | stainless steel | M10 | 4,5 | 2,5 | 19 | 1,6 | 20 | 54 | | | 4.09 € | | | B0015.212 | stainless steel | M12 | 6 | 3,5 | 22 | 2 | 36 | 94 | | | 5.35 € | | | B0015.216 | stainless steel | M16 | 8,5 | 4,5 | 24 | 2,5 | 60 | 110 | | | 6.54 € | |
|
